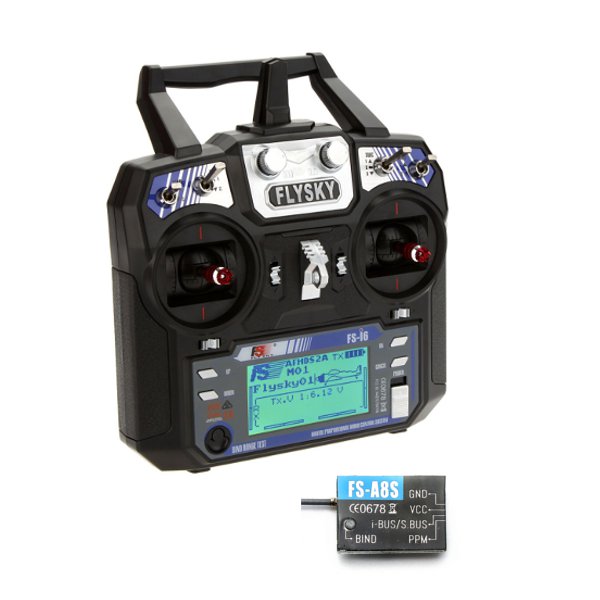

FlySky i6 FS-i6 2.4G 6CH AFHDS RC Transmitter Mode 2 With FS-A8S 8CH Mini Receiver
Description:
Brand Name:FlySky
Item Name: FS-i6 transmitter with FS-A8S receiver
Specification Of Transmitter:
Item Name: FS-i6
Type: Mode 2 (left hand throttle) with color box
Channels: 6 Channels
Model Type: Glider/Heli/Airplane
RF Range: 2.40-2.48GHz
Bandwidth: 500KHz
Band: 142
RF Power: Less Than 20dBm
2.4ghz System: AFHDS 2A and AFHDS
Code Type: GFSK
Sensitivity: 1024
Low Voltage Warning: Less than 4.2V
DSC Port: PS2
Output: PPM
Charger Port: No
ANT length: 26mm*2(dual antenna)
Transmitter Weight: 392g
Package Weight: 628g
Transmitter Size: 174x89x190mm
Package Size: 23.5×21.2×10.6cm
Power: 6V 1.5AA*4 (Not Included)
Display mode: Transflective STN positive type, 128*64 dot matrix VA73*39mm,white backlight.
On-line update: Yes
Color: Black
Certificate: CE0678,FCC
Model Memories: 20
Control Range: 500m

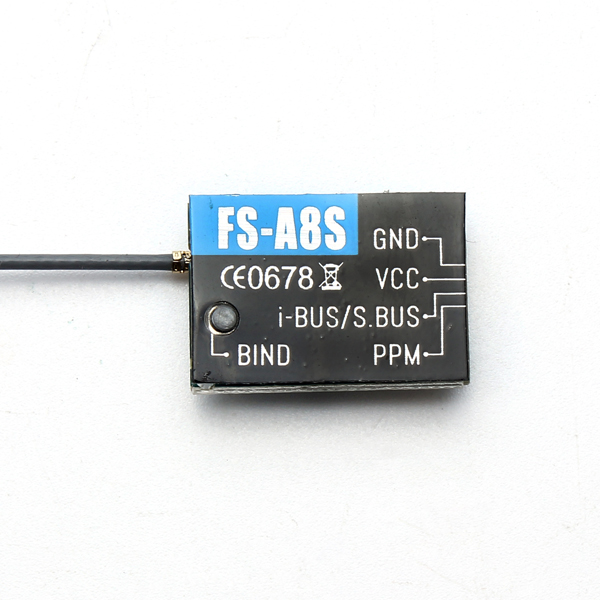

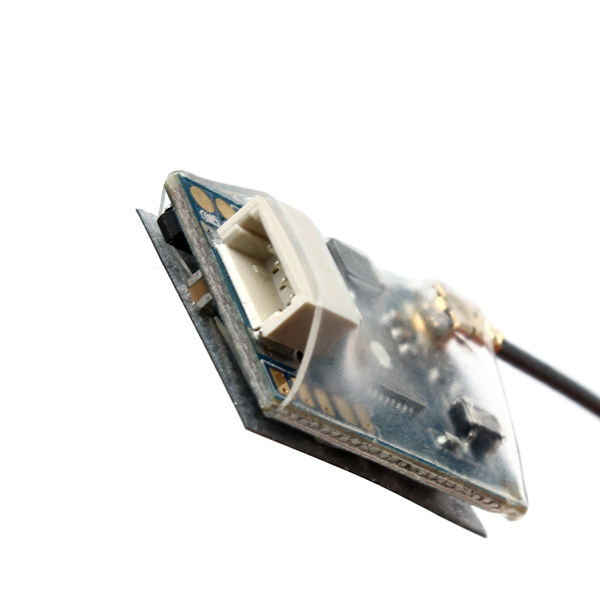

Specification Of Receiver:
Model Type: Multi-rotor
2.4GHz System: AFHDS 2A
DSC Port: PPM/i-BUS/S.BUS
Transfer Method: FHSS
Data Output: 1.5mm*3 Pin PPM/i-BUS/S.BUS
Display Method: LED
No Ground Interference (Transmitting and receiving 1 m from the ground): >300m
Working Current: 40mA
Each Channel Data: depend on the transmitter
Channel Delay: <15mS
Size: 20*14*5.3mm
Features:
Works in the frequency range of 2.405 to 2.475GHz.This band has been divided into 142 independent channels,each radio system uses 16 different channels and 160 different types of hopping algorithm.
This radio system uses a high gain and high quality multi directional antenna,it covers the whole frequency band. Associated with a high sensitivity receiver,this radio system guarantees a jamming free long range radio transmission.
Each transmitter has a unique ID,when binding with a receiver,the receiver saves that unique ID and can accepts only data from the unique transmitter.this avoids picking another transmitter signal and dramatically increase interference immunity and safety.
This radio system uses low power electronic components and sensitive receiver chip.The RF modulation uses intermittent signal thus reducing even more power consumption.
AFHDS2A system has the automatic identification function,which can switch automatically current mode between single-way communication mode and two-way communication mode according to the customer needs.
AFHDS2A has built-in multiple channel coding and error-correction,which improve the stability of the communication,reduce the error ratio and extend the reliable transmission distance.
Note: The receiver doesn't support failsafe.
Related Accessories Sold On Our Site(Not Included):
Firmware Updating Data Cable,Click Here
Simulator Cable.Click Here
Trainer Cable,Click Here
Xiaomi Rainbow AA Battery,Click Here
FS-i6 English Manual,Please Click Here
FS-A8S Receiver Manual,Please Click Here
Package Included:
1 x Flysky FS-i6 transmitter Mode 2
1 x Flysky FS-A8S receiver
1 x Color box
