Description

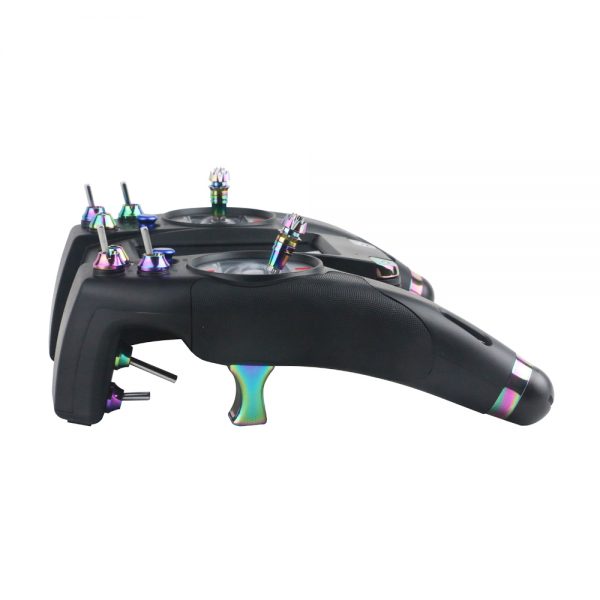

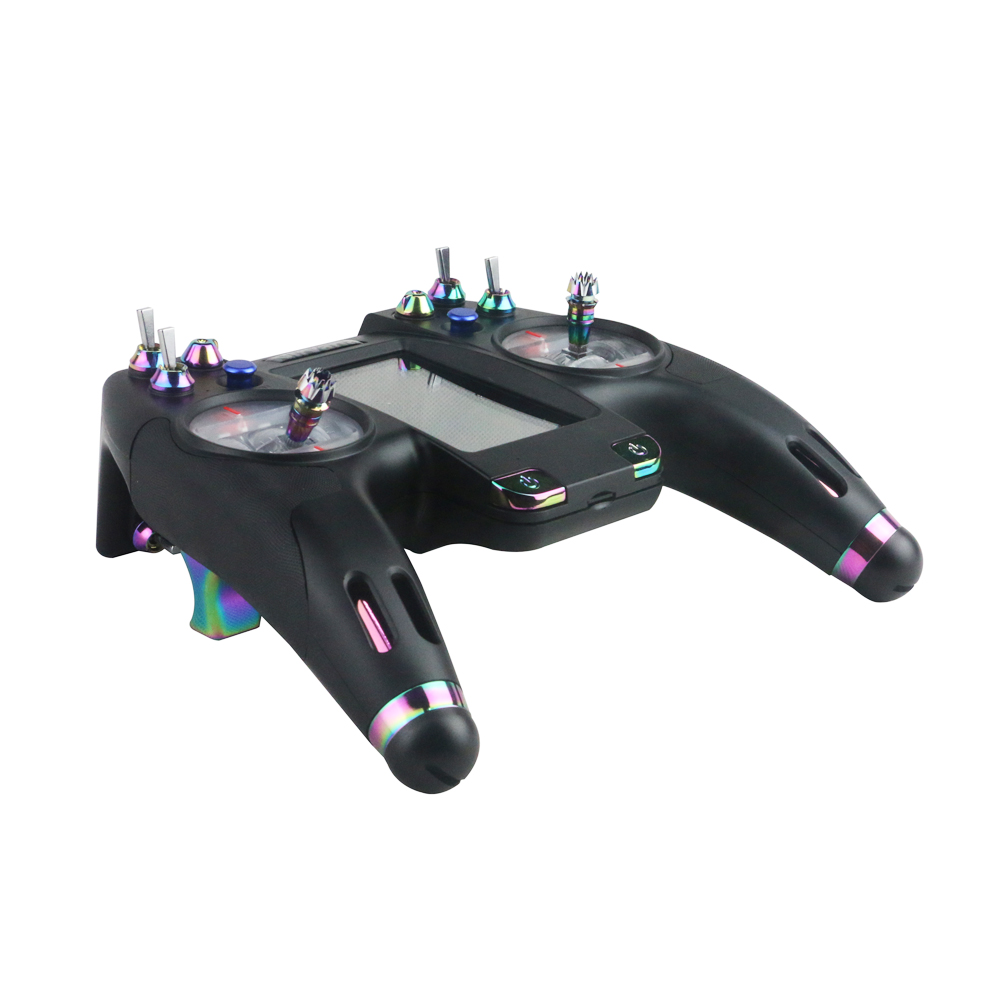

Flysky FS-NV14 2.4G 14CH Nirvana Transmitter with iA8X Receiver 3.5 Inch Display Open Source
Our version is Standard OpenTX .
Get 20% OFF COUPON: FSNV14
The NV14 is an amazing product developed in conjunction with Underground FPV. Moving away from traditional transmitter designs the NV14 has a unique ergonomic design, open source firmware, ports for expandability, a color touch screen display, and most important of all, hall gimbals.
Specification:
Brand name: Flysky
Item name: FS-NV14
Channel: 14CH
2.4GHz System
Removable RF module + Internal AFHDS 2A
Frequency Range: 2.408-2.475GHz
Spread Spectrum Type: FHSS
Modulation Type: GFSK
Channel Bandwidth: 500KHz
Number of Bands: 135
RC Channel Resolution RC: 4096
ST035T Standard LCD Module 320 x 480 dots 3.5in LCD with capacitive touch
Open without interference from ground: More than 800m
Antenna Type: Internal and RF Module
Low Voltage Alarm: Less than 3.7V
Trainer port: Yes
Online Update: Yes
Charging Interface: USD
Data Output: Micro USB Port
Power Input: 2*18650 (Not included)
RF module slot (JR adapter optional): 1
Transmitter weight: 603g
Package Included: 1317g

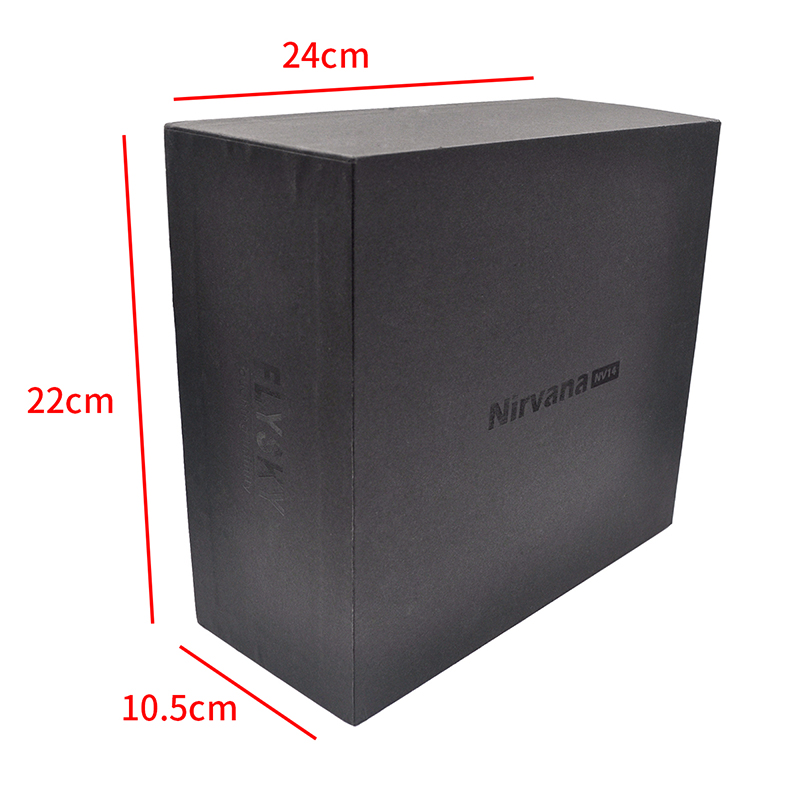

Package Size: 24x22x10.5cm
Recommended Parts:
URUAV UR3 Handbag

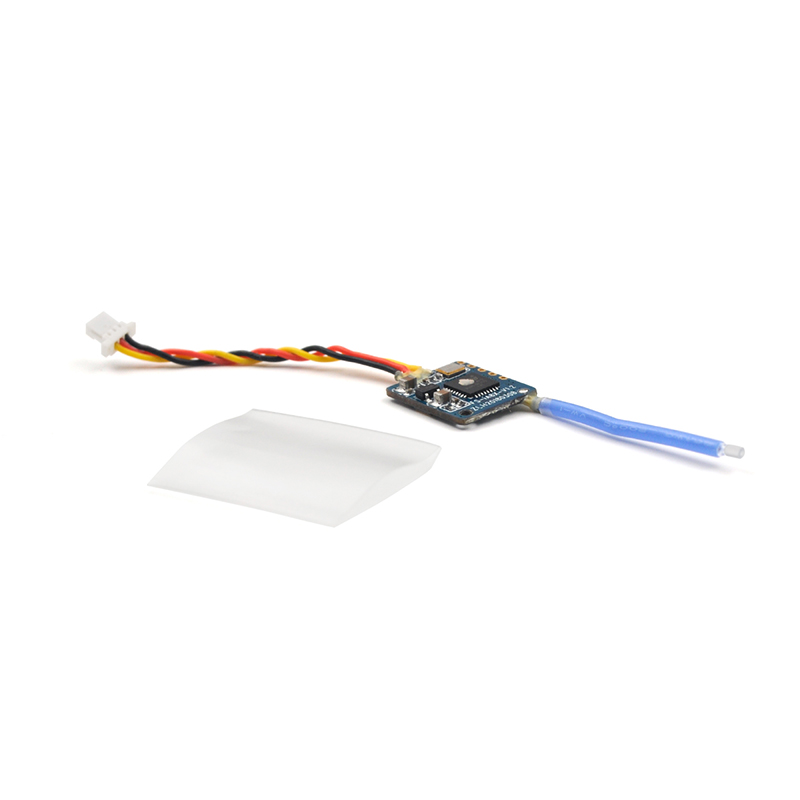

Flysky X8B Receiver
Flysky IA8X Receiver
Finger Grip
Feature:
The NV14 is equipped with a 32-bit M4 core high-performance processor, 2Mb 180MHz, supplemented by industrial-grade 166MHz SDRAM.
USB HID output for use with simulator software
Haptic feedback motor
Up to 14 channels
Includes 2 receivers as standard, one small single and one larger dual antenna receiver.
Optional bluetooth module
Unique finger grip design further enhances hand feel;
Collapsible omnidirectional antenna;
3.5inch 320*480 color capacitive touch screen;
New lanyard eye design;
Detachable RF module bay;
Unique switch placement for ease of use without sacrificing performance;
Unique battery compartment design to house the dual 18650 batteries;
The combination of metal and plastic looks and feels great.
Optional remote control cover offering protection while still being small enough to fit into a backpack;
Package Included:
1 x FS-NV14 Transmitter
1 x X8B Receiver
1 x IA8X Receiver
1 x Dust cover
1 x Data line
1 x Audio cable
1 x RF module
Q&A
1. Why my transmitter firmware is incomplete? There are some functions can not be used.
Please upgrade a new firmware. It is flysky-NV14-2.0.0. DOWNLOAD
flysky-NV14-2.0.0 version has modified these functions.
A. Realize the system clock function;
B. Add ADC filter function;
C. Add PPM reverse function;
D. Add a QR code that can be linked to the manual.
