Description
Flysky FS-i4X 2.4G 4CH AFHDS RC Transmitter Remote Control With FS-A6 Receiver
Description:
Brand Name: Flysky
Item Name: FS-i4X transmitter + FS-A6 receiver

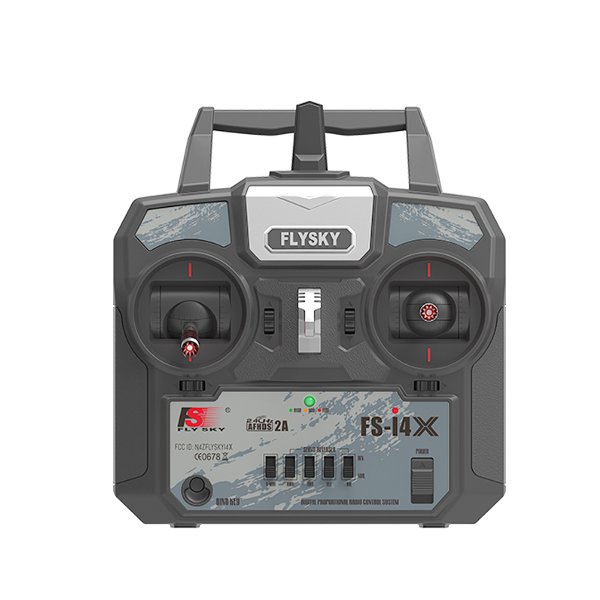

Specification of Transmitter:
Item Name: FS-i4X
Mode(optional): Mode 1 (Right Hand Throttle), Mode 2 (Left Hand Throttle)
Band Range: 2.4055-2.475GHz
Band Amount: 140
Channel: 4-10CH
Model Type: RC Airplane/Glider/Helicopter
RF Power: <20dBm
Bandwidth: 500KHz
2.4GHz System: AFHDS 2A / AFHDS
Modulation Type: GFSK
Stick Resolution: 1024
Low Voltage Warning: <4.2V
DSC Port: PS2 PPM
Chargeable: No
Antenna Length: 26mm *2
Antenna Length: 26mm *2
Weight: 335g
Power: 6V DC 1.5AA*4(Not included)
Display: LED Indicators
Size: 174*89*190mm
Color: Black
Certificate: CE0678, FCC

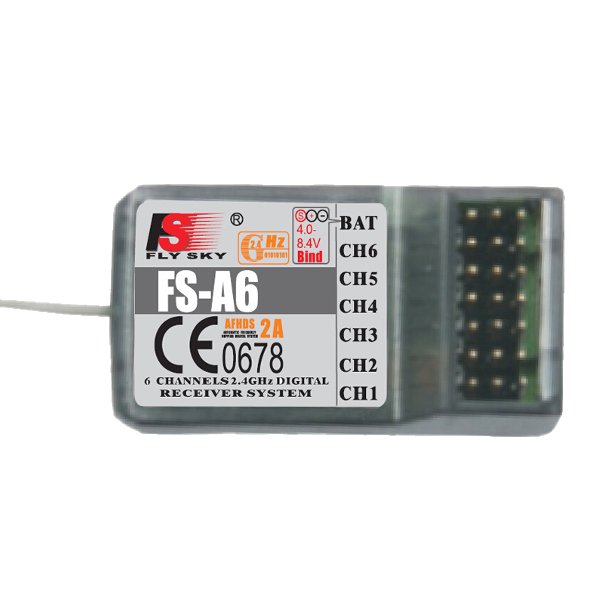

Specification of Receiver:
Item Name: FS-A6
Channels: 6
Model Type: Fixed-Wing/Glider/ Helicopter
RF Range: 2.4055-2.475GHz
RF Channel: 140
RF Receiver Sensitivity: -105dBm
Bandwidth: 500KHz
2.4GHz System: AFHDS 2A
Modulation Type: GFSK
Power: 4.0-6.5V DC
Antenna Length: 26mm
Weight: 13g
Size: 45*23*9mm
i-BUS Port: No
Data Acquisition Port: No
Color: Grey (Transparent)
Certificate: CE0678, FCC
Features:
With strong initiative and passive anti-interference ability and V-MIX mix control system,compatible with many models.
According to your own needs,you can DIY expansion channel,this item can be expaned to 10CH.
Works in the frequency range of 2.405 to 2.475GHz.This band has been divided into 140 independent channels.
This radio system uses a high gain and high quality multi directional antenna,it covers the whole frequency band. Associated with a high sensitivity receiver,this radio system guarantees a jamming free long range radio transmission
Each transmitter has a unique ID,when binding with a receiver,the receiver saves that unique ID and can accepts only data from the unique transmitter.this avoids picking another transmitter signal and dramatically increase interference immunity and safety.
This radio system uses low power electronic components and sensitive receiver chip.The RF modulation uses intermittent signal thus reducing even more power consumption.
AFHDS2A system has the automatic identification function,which can switch automatically current mode between single-way communication mode and two-way communication mode according to the customer needs.
AFHDS2A has built-in multiple channel coding and error-correction,which improve the stability of the communication,reduce the error ratio and extend the reliable transmission distance.

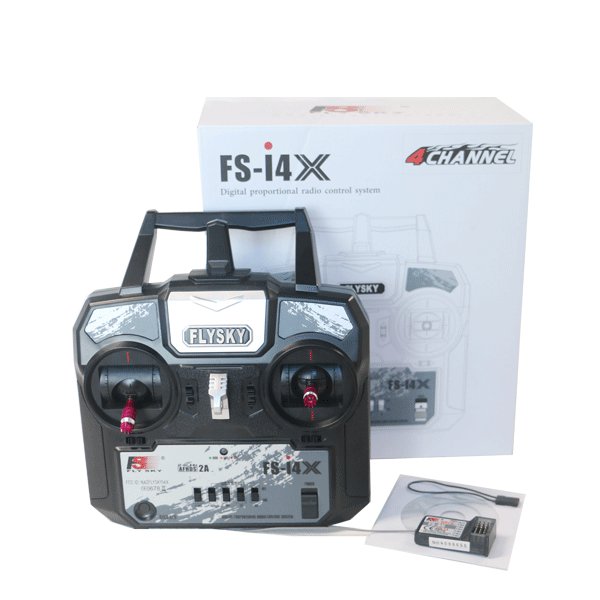

Package Included:
1x Flysky FS-i4X Transmitter
1x Flysky FS-A6 Receiver
