Description
Flycolor X-Tower F4 Flight Controller Built-in OSD + 40A BLHeli_32 4 IN 1 3-6S ESC Dshot1200 Current Sensor
Description:
Brand name: Flycolor
Item name: X-Tower F4-40A
Lipo cells: 3-6S
Weight: 26g
Size: 48.5×41.5x18mm
Typical applications: 170-450 multirotors
Highly integrated, simple and convenient
Dual vibration damping, smooth flight

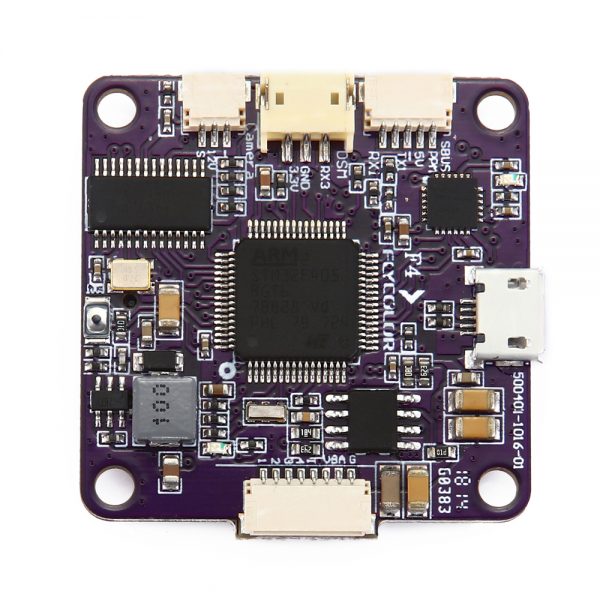

F4 flight controller:
FC vout: 3.3V/5V/12V
MCU: STM32F405
Gyro: MPU-6000 SPI
Support PPM, SBUS, SPEKTRUM1024/2408 receivers
Support max 32G TF card
Built-in OSD
Firmware: OMNIBUSF4SD

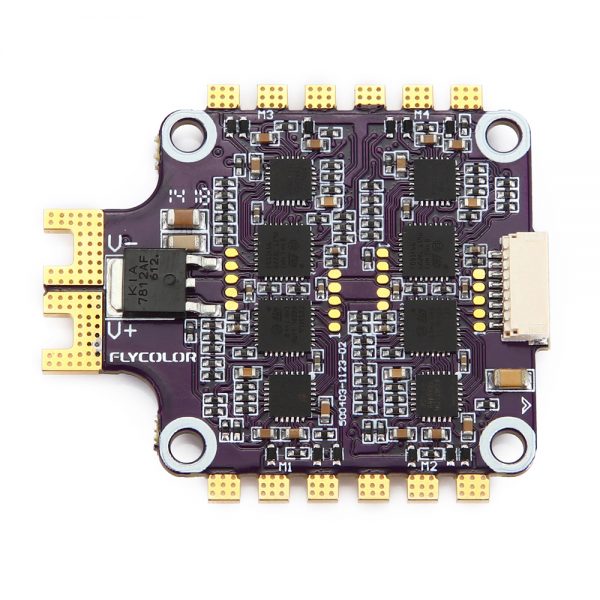

40A BLHeli_32 4 IN 1 3-6S ESC:
Con.current: 40A
Burst current: 45A (10S)
Lipo cells: 3-6S
Working frequency: up to 48MHz
Built-in current sensor
BLHeli_32bit
Support Dshot1200
Support damped light

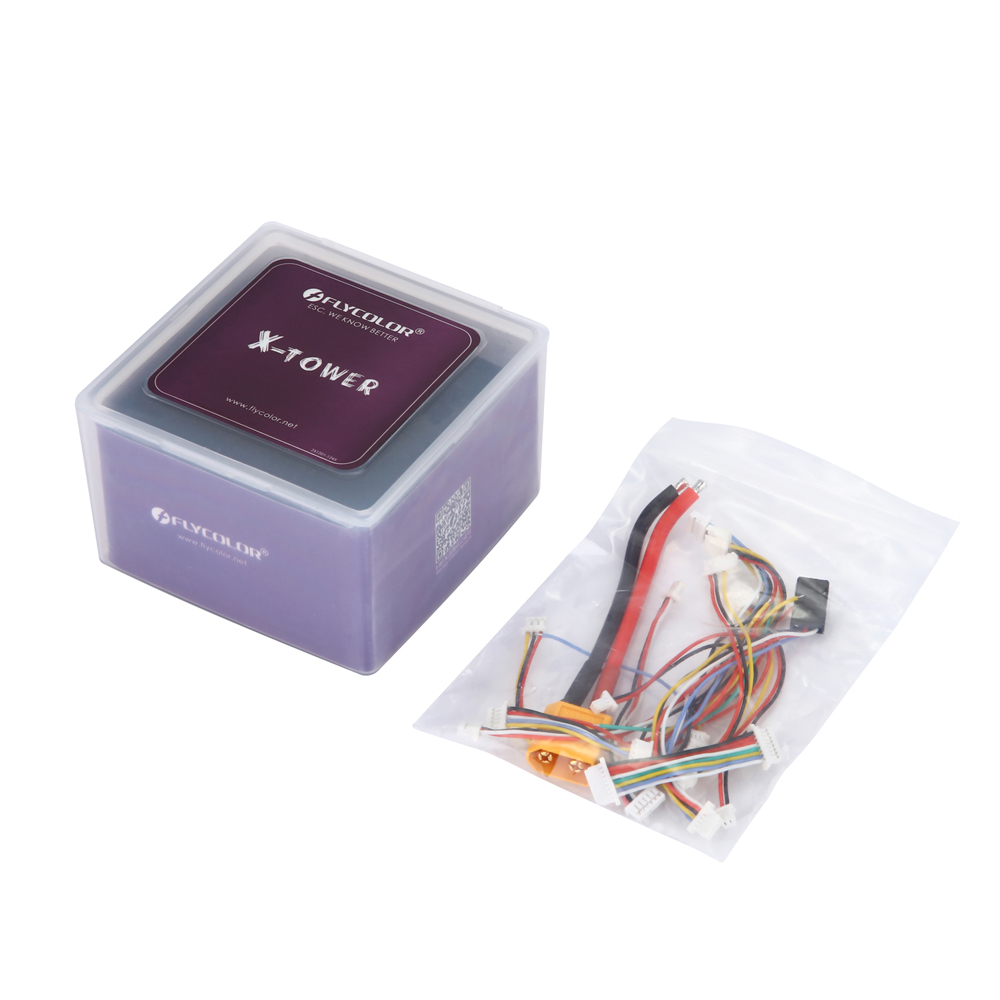

Package included:
1 x F4 flight controller
1 x 40A BLHeli_32 4 IN 1 3-6S ESC
4 x M3+4.5 damping screw
4 x M3 nylon nut
4 x O type rubber ring
4 x M3*12 nylon screw
