Description
30.5×30.5mm Flycolor Raptor S-Tower Flytower Omnibus F4 OSD Flight Controller 40A BL_S DShot600 ESC
Diagram Picture:
Specification:
Brand Name: Flycolor
Model: Raptor S-Tower 40A
Item Name: F4 Integrated with OSD Flight Controller & 40A BL_S 4 In 1 ESC
Mounting Hole: 30.5×30.5mm
Flytower Height: 18mm
Weight: 20g
Application: for 170mm-450mm Multi-Rotor

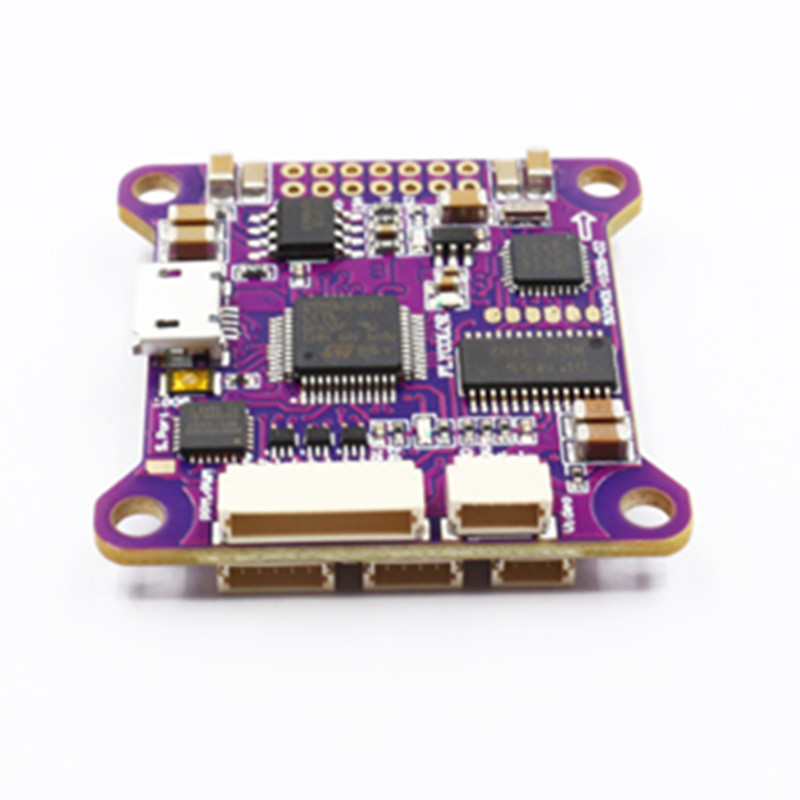

Omnibus F4 Flight Controller ( Top Level)
Item Name: Omnibus F4 FC AIO Betaflight OSD
MCU: STM32F405
Gyro: MPU6000-SPI
FC Firmware: Betaflight_OMNIBUSFESD
– Support PPM, SBUS, Spektrum1024/2048 etc. recomte control/ receiving mode
– Supports max.32G TF-Card, which can record and save more flight / black box data.
– FC integrated with OSD, adjust OSD parameters via betaflight configurator.
– Integrated with 3.3V, 5V, 12V /for receiver, VTX, camera, buzzer, LED and other peripheral devices.
– Provided several silicone cables for FC
Size: 36x36mm ( Mounting Hole: 30.5×30.5mm)
40A BLheli_S 4 In 1 ESC ( Bottom Level)
Firmware: BLHeli_S A-H-30
– Support Oneshot42, Oneshot125, Multishot, Dshot150, Dshot300 and DShot600
Package Included:
1x Omnibus F4 Flight Controller
1x 40A BL_S 4 In 1 ESC
1x bag of Screws
