Description
FlyBird ST-i8 8CH 2.4G Transmitter Support PPM Output Compatible AFHDS 2A with Receiver for Helicopter
Description:
Brand name: FlyBird

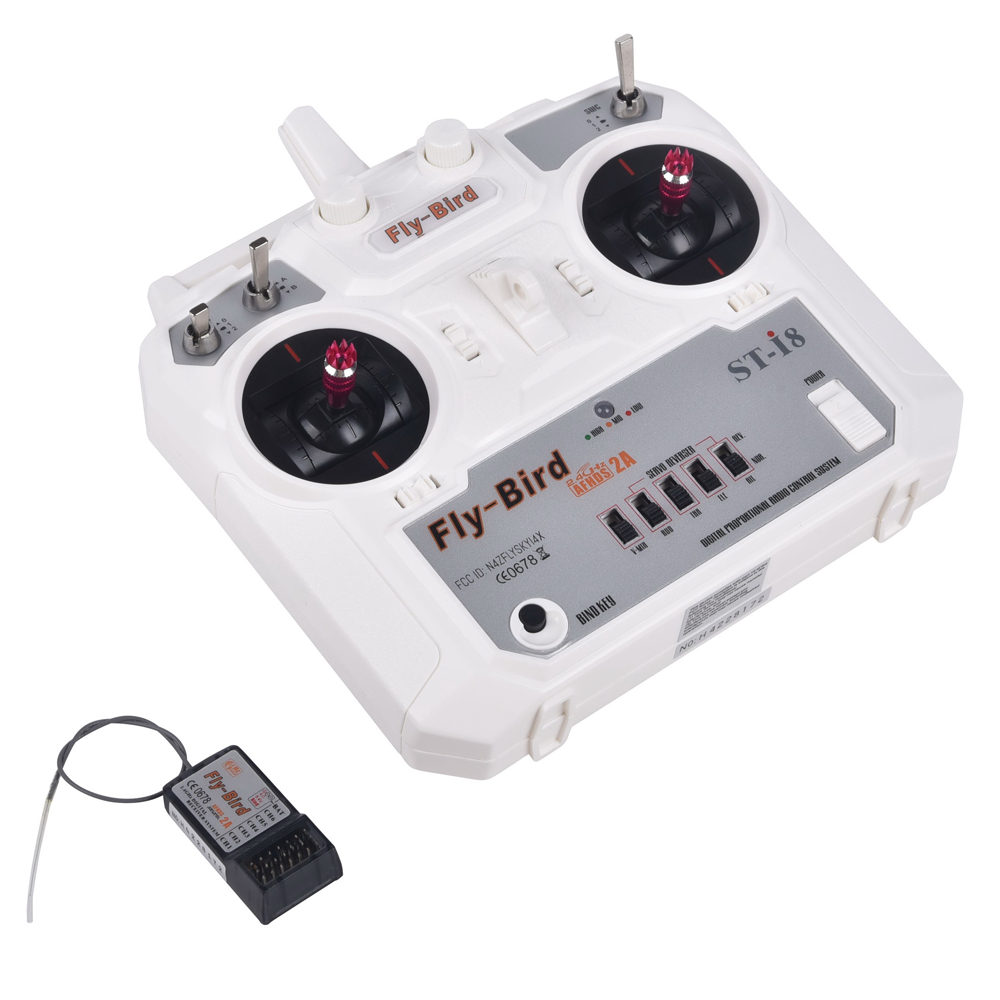

Item name: ST-i8 Transmitter with Receiver
Number of channels: 8CH PPM
Number of channels: 8CH PPM
Body weight: 350g
Input power: 6V DC (1.5AA*4)
Dimensions: 174*89*190 mm
Appearance color: white
Frequency range: 2.4000-2.485GHz
Band width: 500KHz
Number of bands: 160
Transmitting power: no higher than 20dBm
2.4G mode: second generation enhanced version of automatic frequency hopping digital system AFHDS 2A
Coding method: GFSK
Channel resolution: 1024
Data output: Yes (PS2 interface, output PPM signal)
Charging interface: none
Low voltage warning: Yes
Certification: CE0678, FCC
Suitable for models: fixed wing / helicopter / multi-rotor
Suitable for models: fixed wing / helicopter / multi-rotor

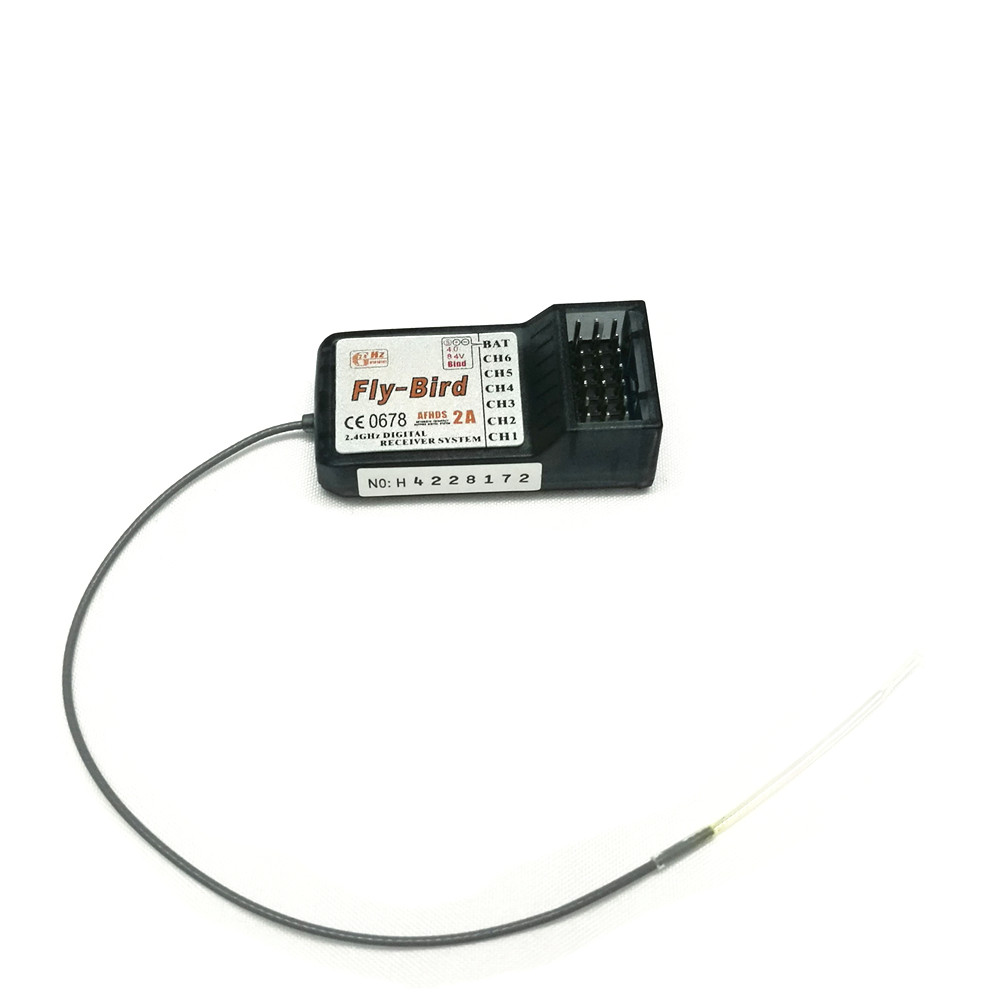

Receiver Channel:
Code BIND / Power BAT
CH2-CH4 corresponds to PPM signal 6 (VRA knob) 7 (SWA three-stage switch) 8 (VR8 knob) channel can be used independently, can be used for camera and pan/tilt roll control
CH1/PPM (corresponding to 1-8CH)
Receiver Status:
– Indicator off: Receiver power is not connected
– The red light is always on: The receiver is working normally.
– Fast flashing: the receiver is in the bind code status
– Slow flashing: The paired transmitter is not turned on or the signal is lost
Package included:
1 x ST-i8 Transmitter with Receiver
