Description

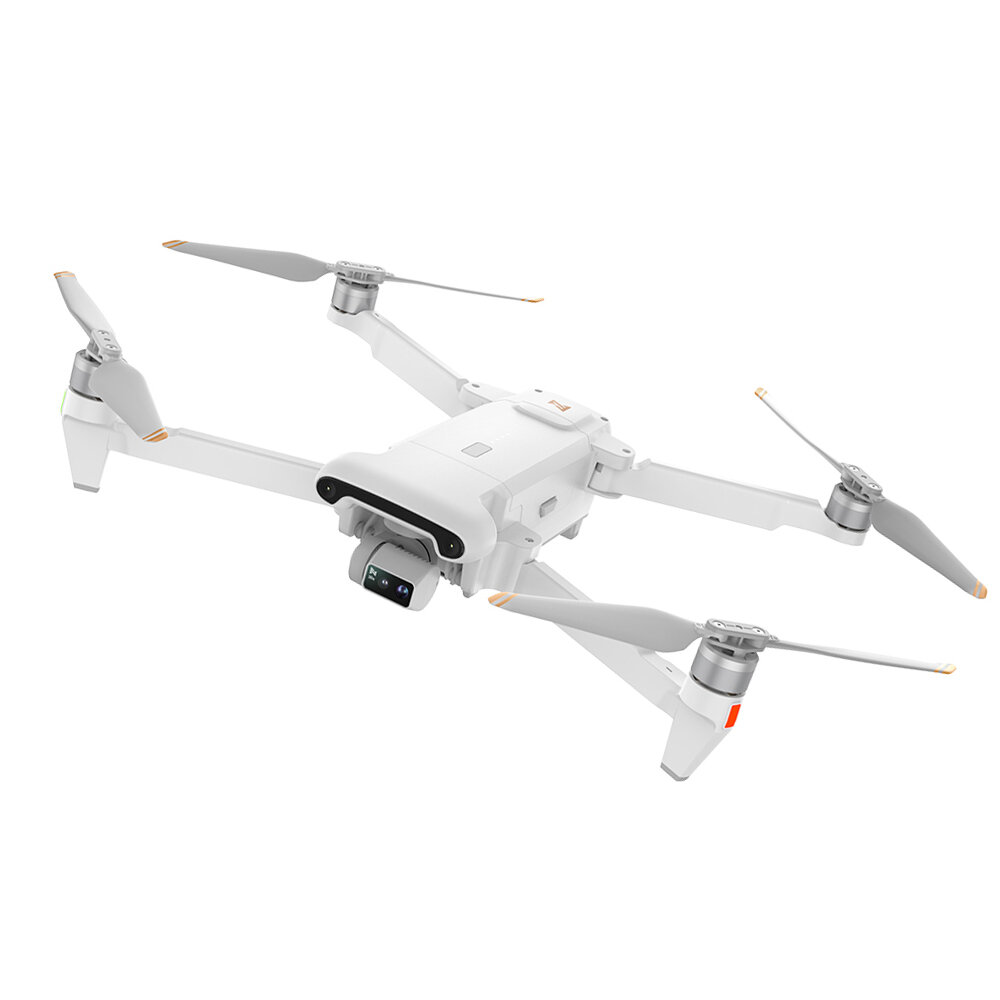

FIMI X8 TELE Beyond Vision Wide Angle Tele Camera 30X ZOOM 4K 60fps 10KM FPV Super Night Video RC Drone Quadcopter RTF
Specifications:
Aircraft
|
Dimensions |
Folded: 204 x 106 x 72.6mm Unfolded: 242 x 334 x 72.6mm |
| Diagonal Wheelbase | 372mm | |
| Color | White | |
| Takeoff Weight (with battery) |
Approx. 750g with the Intelligent Flight Battery |
|
| Max Ascension Speed | 5m/s | |
| Max Descent Speed | 4m/s | |
|
Max Flying Speed |
18m/s |
|
| Max Takeoff Altitude |
≤ 5000m |
|
| Max Hovering Time | Approximately 29 minutes | |
| Max Wind Speed Resistance | 12m/s | |
| Max Flying Time |
38mins (the Intelligent Flight Battery) 47mins (the Intelligent Flight Battery Plus) |
|
| Max Tilt Angle | 35° | |
| GNSS | GPS/Galileo/GLONASS | |
| Operating Temperature Range |
0-40℃ |
|
| Hovering Accuracy, Vertical |
±0.1m (when Vision Positioning is active) ±0.5m (when GPS is active) |
|
| Horizontal |
±0.3m (when Vision Positioning is active) ±0.5m (when GPS is active) |
|
| Expansion Port |
12-PIN date interface (female) |
|
Gimbal
|
Controllable Range |
0°~-90°(Pitch) |
| Angular Vibration Range |
±0.005° |
|
| Three-axis Mechanical Gimbal |
-115° ~ 40° (Pitch) -40° ~ 40° (Roll)-40° ~ 40° (Yaw) |
|
Sensing System
|
Forward Precision Measurement Range |
0.5-20m |
| Backward Precision Measurement Range |
0.5-10m |
|
| Downward Precision Measurement Range |
0.3-6m |
|
| Effective Obstacle Avoidance Speed(Forward) |
Flight Speed <6m/s |
|
| Effective Obstacle Avoidance Speed(Backward) |
Flight Speed <6m/s |
|
| Monocular Visual Odometry, TOF ranging |
||
| Auxiliary Light(Downward) |
Dual LED |
|
Remote Controller
|
Weight |
Approx. 373g |
| Dimensions |
204 x 91 x 47mm |
|
| Operation Frequency |
2.400 – 2.4835GHz 5.725GHz – 5.850GHz |
|
| Battery Type | Li-ion | |
| Capacity | 3900mAh | |
| Voltage |
3.7V |
|
| Input |
5V-2A |
|
|
Max Signal Effective Range (NO interference,no obstruction) FCC |
Approximately 10KM |
|
| Charging Temperature | 5 – 40℃ | |
| Operating Temperature |
0 – 40℃ |
|
| Minimum Latency | Approx. 120 milliseconds | |
| Supported Mobile Device Interface Types |
Lighting, USB-C |
|
Intelligent Flight Battery
|
Battery Type |
Li-po 3S |
| Weight |
Approx. 260g |
|
| Capacity |
4650mAh |
|
| Voltage |
11.55V |
|
| Limited Voltage |
13.2V |
|
| Energy |
53.7Wh |
|
| Charging Time |
Approx. 110 minutes |
|
Intelligent Flight Battery Plus
|
Battery Type |
Li-po 4S |
| Weight |
Approx. 330g |
|
| Capacity |
5000mAh |
|
| Voltage |
14.8V |
|
| Limited Voltage |
16.8V |
|
| Energy |
72Wh |
|
| Charging Time |
Approx. 110 minutes |
|
APP |
FIMI Navi 3.0 Mobile Device System Requirements |
iOS 12.0 or later, Android 9.0 or later |
Features:
1. Wide-Angle and Tele Camera, 30X Mix Zoom: FIMI’s dual-camera system comprises a S0ny 48MP wide-angle camare and a S0ny 13MP 5x telephoto camera. Providing 30x mix zoom, capturing wide scenes and detailed long-range shots up to 2 kilometers away.
2. 4K/60fps Video:Supporting 4K/60fps high-speed recording, each frame is vivid and smooth. The high resolution and frame rate allow for post-production upscaling and lossless zooming.
3. SoLink Dual-Band 10KM Video Transmission:The SokLink real-time HD video transmission system offers a max 10-kilometer range, supports 2.4GHz and 5.8GHz dual bands, and has latency as low as 120ms for smooth video feed.
4. AI Super Night Video:The latest AI ISP offers 4x noise reduction, enhancing low-light image clarity for brighter, purer night shots.
5. 38/47-Minute Flight time (Optional):The Intelligent Flight Battery provides up to 38 minutes of flight time, ideal for large-scale productions. An optional Intelligent Flight Battery Plus offers a massive 5000mAh capacity, extending flight time to 47 minutes for extended exploration.
Package Included:
1 x FIMI X8 TELE Drone ( with camera)1 x Remote Controller1 x Battery1 x Charger3 x USB Cable6 x Propeller1 x AC Cable1 x Gimbal cover1 x Dust plug2 x Manual
1 x Megaphone(If you choose)
