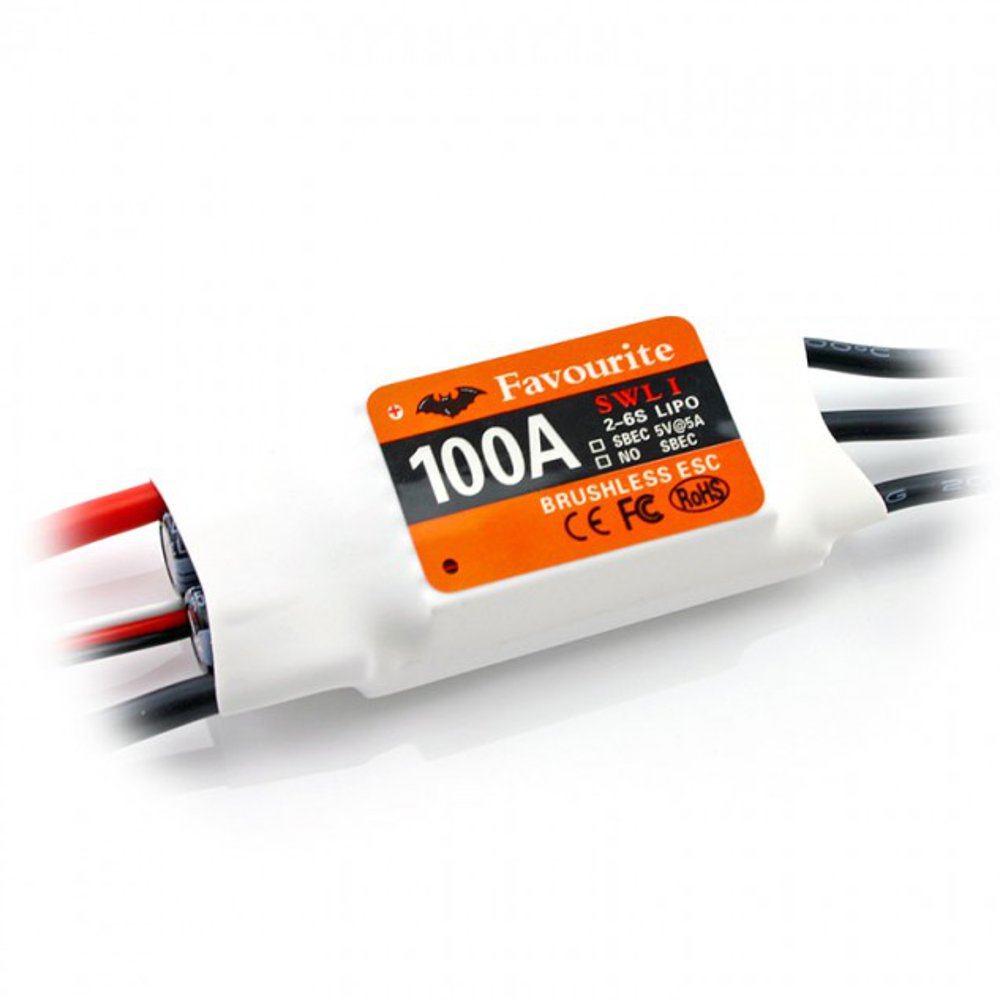

Favourite FVT Swallow Series 100A 2-6S Brushless ESC With 5V 5A SBEC For RC Airplane
Description:
FVT Swallow Series aircraft ESC’s pack a wide array of adjustments and tunability into a heavy duty speed controller. Swallow Series ESC’s feature generous use of high-quality components and integrated heat-sinks to increase efficiency, lower operating temperatures and increase run times.
Specifications:
Brand Name: Favourite/FVT
Series: Swallow
Item Name: Brushless ESC
Constant Current: 100A
Burst Current (10s): 120A
Operating Voltage: 2-6S LiPo
BEC Type: Switch
BEC Output: 5V/5A
Dimension: 85x31x22mm
Weight: 90g
Programmable: Yes
USB Link and PC software can be used to update firmware online.
USB Link and PC software can be used to update firmware online.
Adjustable Parameters (requires program card, Click Here):
• Brake (on/off)
• Battery type
• Cut-off type
• Cut-off voltage
• Motor timing
• Start mode
• Governor mode
• Motor direction
Features:
Multiple motor timing choices, so compatible with most brushless motors in the market.
Microprocessor uses separate voltage regulator IC, with good anti-jamming capability.
Self detection and warning function: When the throttle stick is inadequate, the motor will not start and emit "Beep-beep".
Multiple protection features: over-heat protection and throttle signal loss protection,low voltage cut-off protection.
Throttle calibration funtion: Throttle range can be calibrated to be compatible with different transmitters.
Main control board and the MOS board are separate two boards, which is conducive to heat dissipation.
Main control board and the MOS board are separate two boards, which is conducive to heat dissipation.
Package Included:
1x FVT Swallow Series 100A 2-6S Brushless ESC
