Description:
Brand Name: EWRF
Item Name: FPV Transmitter + Camera Combo

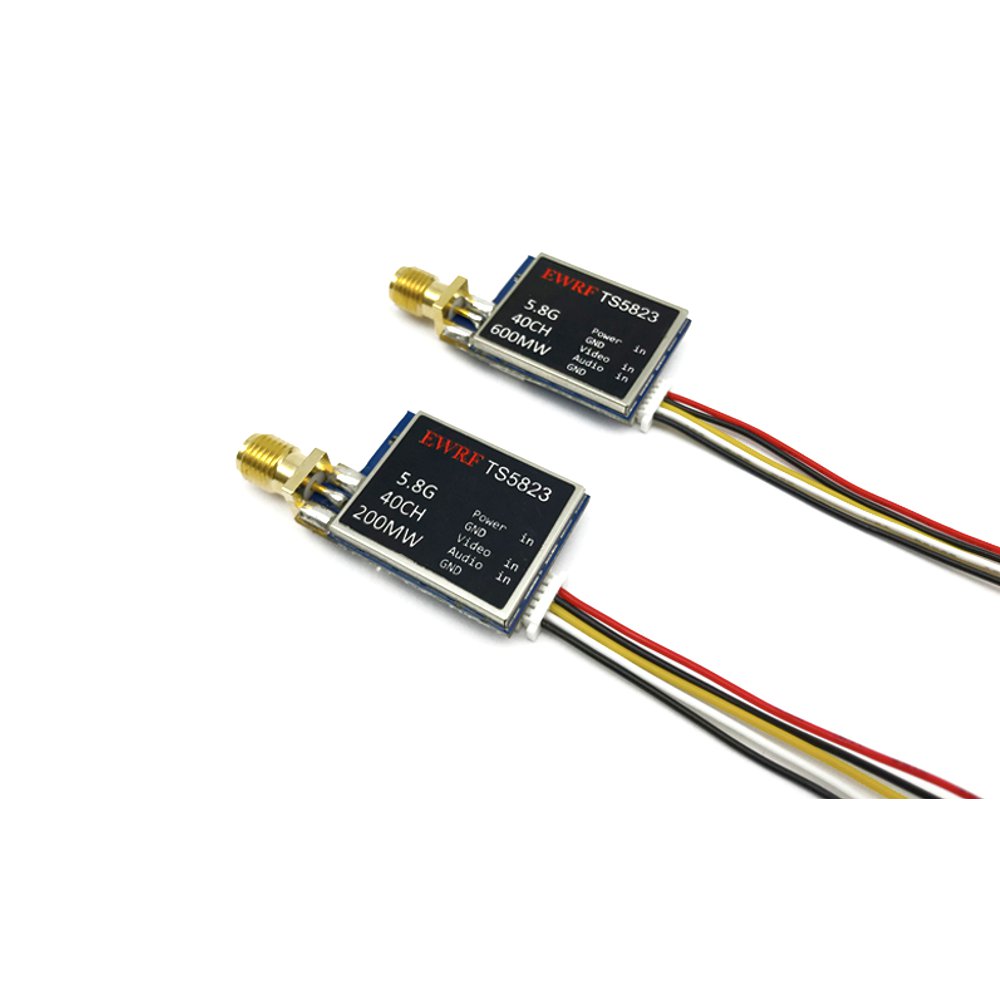

Specifications of FPV Transmitter:
Item Name: TS5823
Frequency: 5.8G
Channel: 40
Channel: 40
Transmitting Power(optional): 200mW/OFF(Pitmode), 600mW/OFF(Pitmode)
Working Current: 150mA (200mW version) / 230mA (600mW version)
Working Current: 150mA (200mW version) / 230mA (600mW version)
Power Supply: DC 7-24V
Connector: RP-SMA Femal
Connector: RP-SMA Femal
Weight: 5 g
Dimension: 30x20x8mm

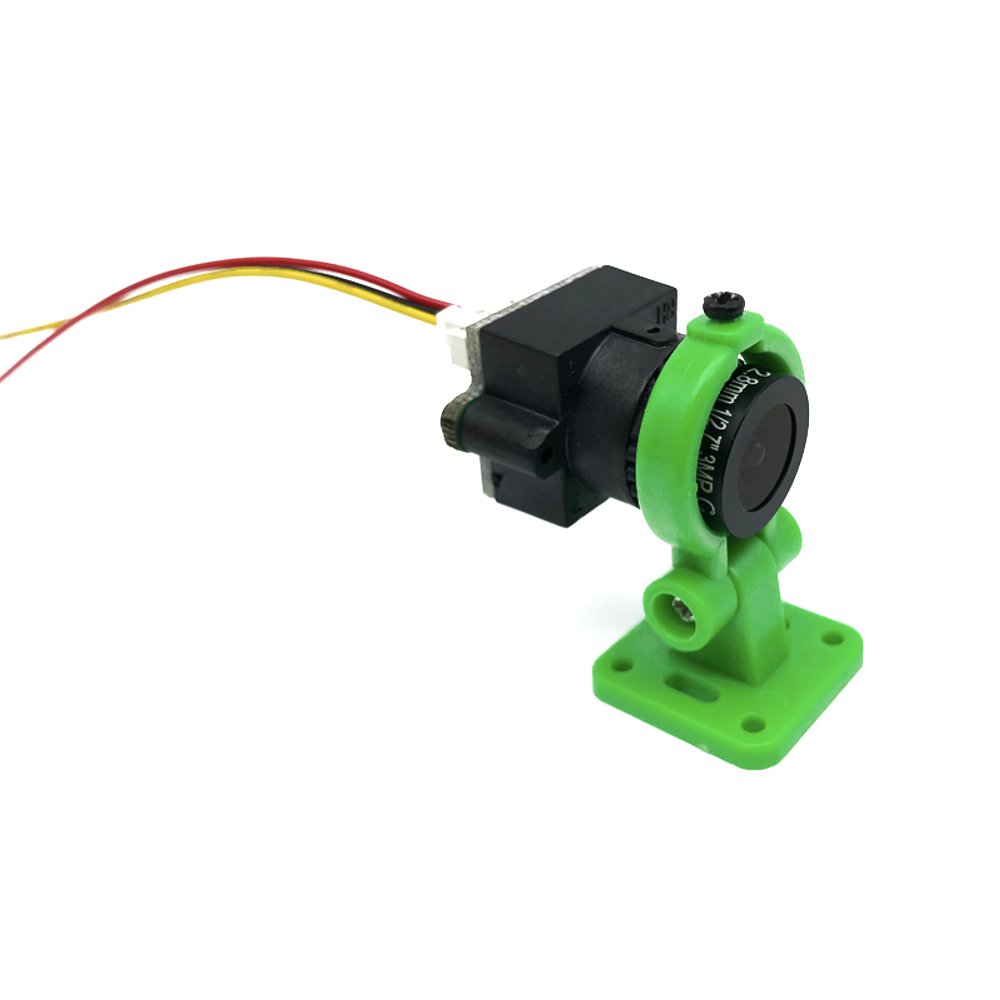

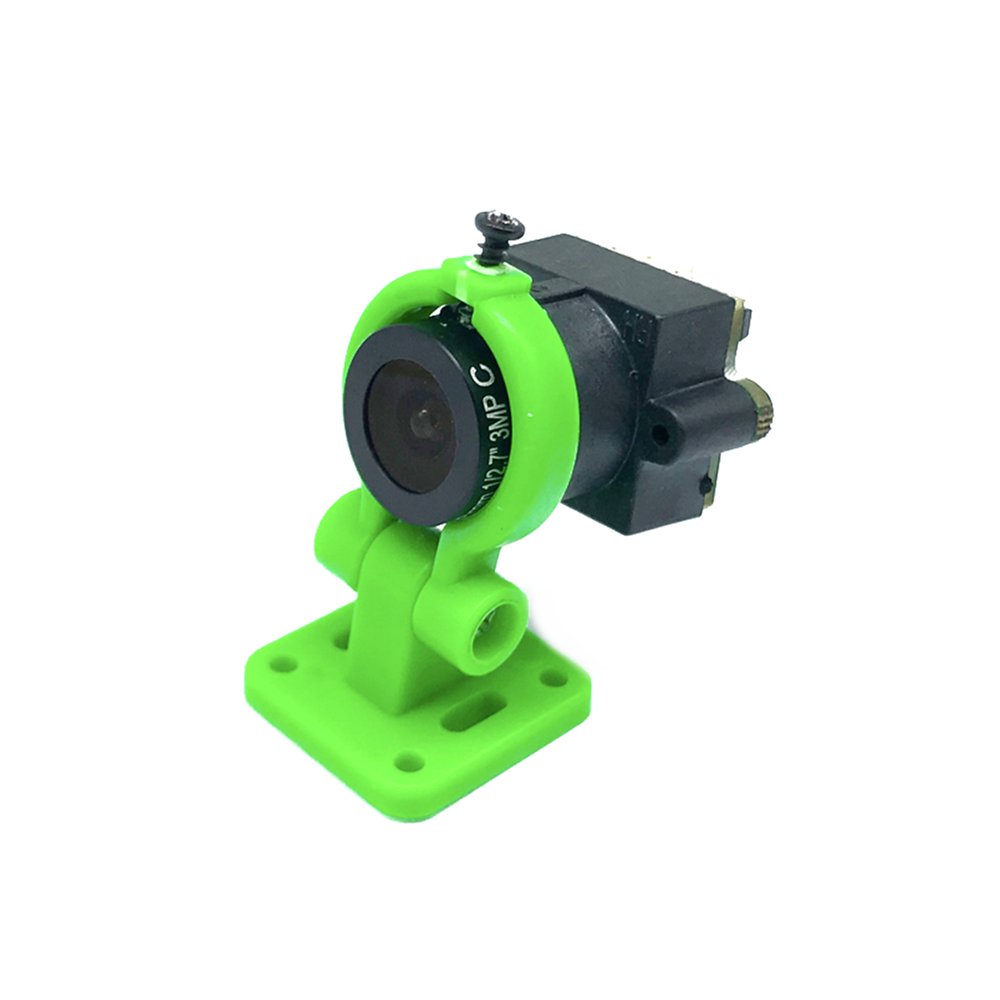

Specifications of FPV Camera:
Item Name: Camera
Lens: 2.8mm
Angle: 120°
Resolution: 1000TVL
Signal System: PAL / NTSC
Working Voltage Range: DC 5-17V
Audio: Yes
Features:
Miniature and light weight design.
200mW and 600mW two versions FPV transmitter optional.
FPV transmitter with SMD digital display.
With audio and video control interface.
Ultra small size 1000TVL HD FPV camera,high definition, low illumination,low power consumption.
English Manual for

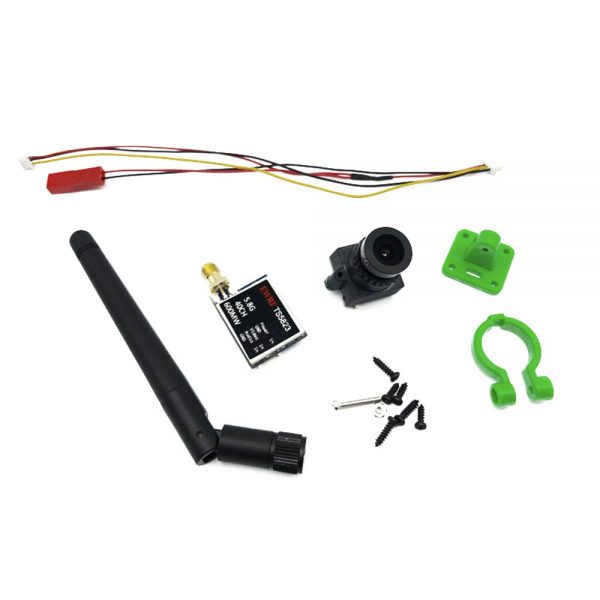

EWRF TS5823, Click HerePackage Included:

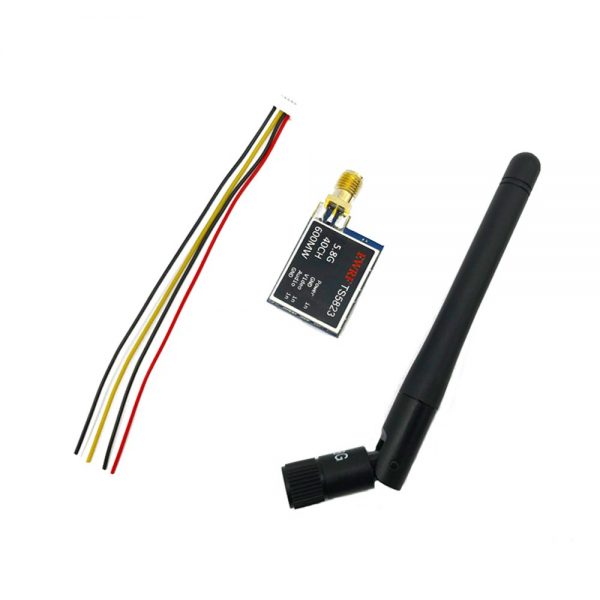

1x EWRF TS5823 FPV Transmitter
1x 1000TVL Camera
1x Antenna
2x Cable
