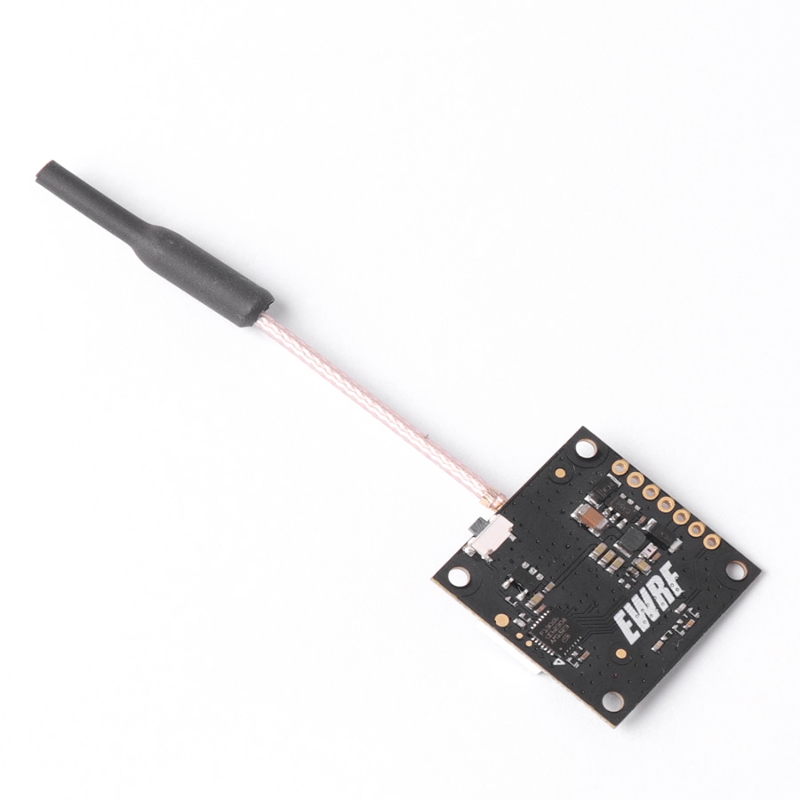

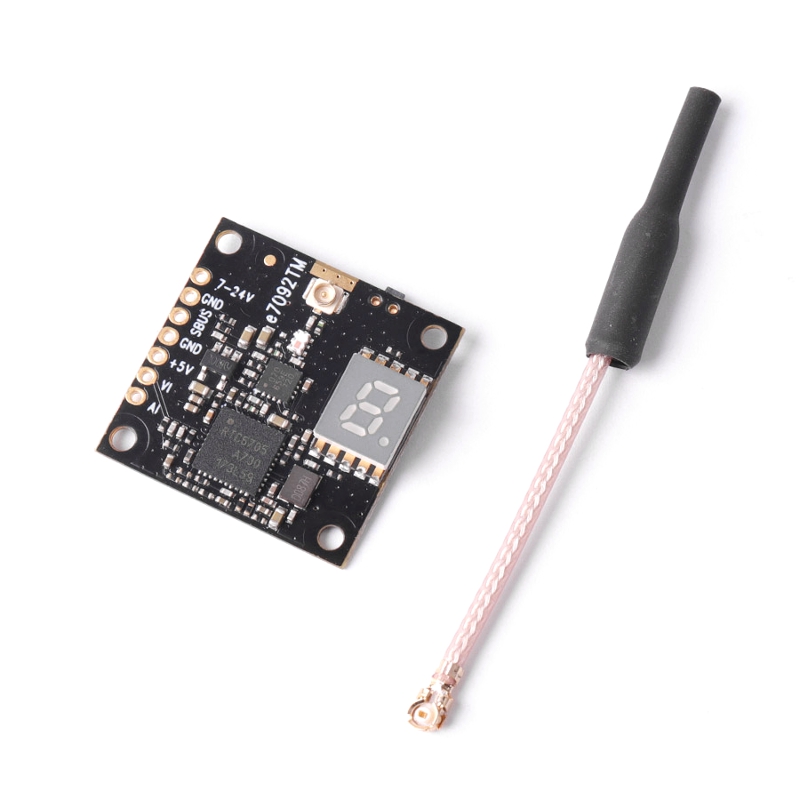

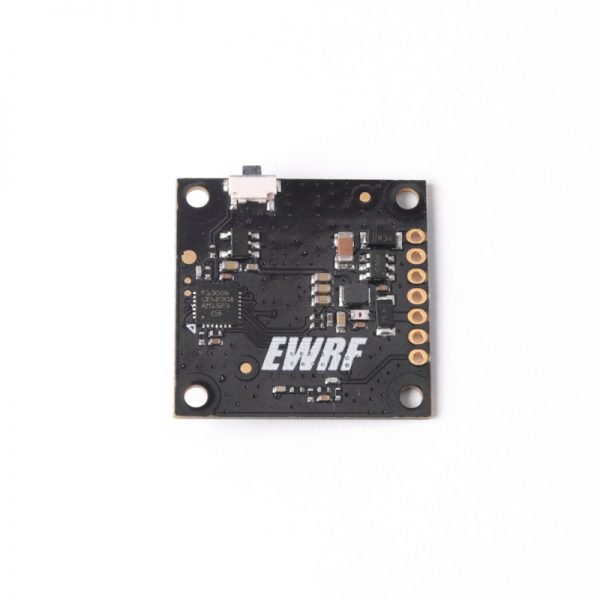

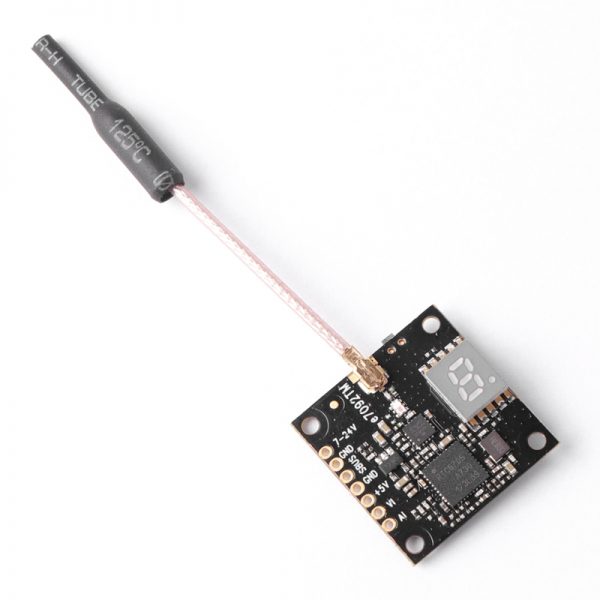

EWRF e7092TM 5.8G 48CH 25mW/100mW/200mW/OFF Power Adjustable AIO VTX FPV Transmitter Support SBUS







Model: EWRF  e7092TM

Frequency: 5.8G 48CH

Transmitting Power : 25mW/100mW/200mW/OFF(Pitmode)

Power supply : DC72 -24V(1S)

Supply current : 120mA(25mW)/160mA(100mW)/220mA(200mW)

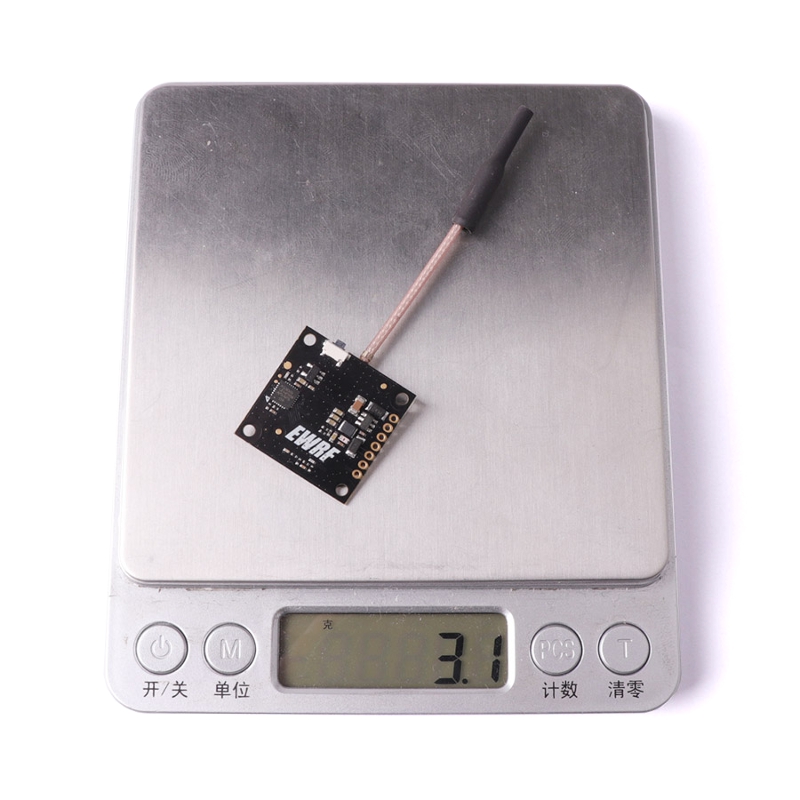

Weight : 3.1g(Including antenna weight 1g)4 g

Standard size:24.0×24.0mm

Mounting holes:20x20mm



After power on, the digital display shows the following three parameters in turn: channel, band and power.Press and hold the button until the red dot appears on the right bottom of the digital display, which can be entered into the parameters setting.

When the digital display shows the Arabic numerals for the channel (1-8),press the button can select the channels.

Press and hold the button again,the digital display will shows the alphabet for band(A-b-c-d-E-F), press the button can select the bands.

Press and hold the button again,the digital display will shows the indication for power(H:200mW,U:100mW,L:25mW,-:OFF), press the button can select the power.

Finally, press and hold the button,the red dot on the right bottom of the digital display will disappear.VTX is back to normal working state and the channel,band,power will display in turn on the digital display.



When SBUSPWM port is connected with a RC receiver, it can been used to change transmitter parametersAV channels 1-8 and to shut transmitting by a RC( PITMODE in effect). Make sure that there is a SBUSPWM signal from receiver within 3 seconds after powering up ,otherwise the transmitter is back to button-press setting mode . When in the setting mode of SBUSPWM, the red dot on the digital display will glow.

For Betaflight/Cleanflight OSD setting of power,bands,channels and Pitmode ,please referring to ‘EWRF 5.8G AV TX OSD SettingBetaflight OSD setting of EWRF Transmitter’for details.



Frequency(Mhz)

Band	CH1	CH2	CH3	CH4	CH 5	CH6	CH7	CH8
A	5865	5845	5825	5805	5785	5765	5745	5725
b	5733	5752	5771	5790	5809	5828	5847	5866
c	5705	5685	5665	5645	5885	5905	5925	5945
d	5740	5760	5780	5800	5820	5840	5860	5880
E	5658	5695	5732	5769	5806	5843	5880	5917
F	5362	5399	5436	5473	5510	5547	5584	5621




Note:
1.Make sure that there is enough space for airflow when installing the module   on the drone in case the overheating protection starts to reduce the power even to shut down at the worst.

2. Please install the antenna before powering up for a longer use life.

3. .The maximum current of output DC 5V is 300mA.



1 x EWRF e7092TM Transmitter Module
