Description:
Brand Name: EWRF

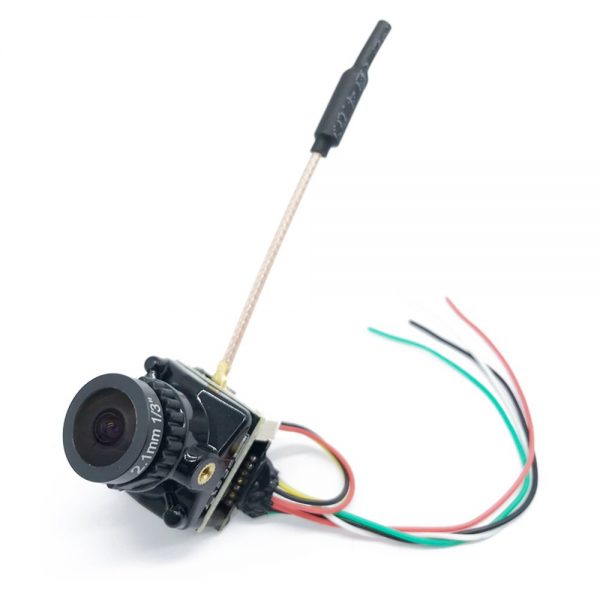

Item Name: e7087U VTX + 1200TVL 2.1mm Camera
Specifications of Camera:
Lens: 2.1mm

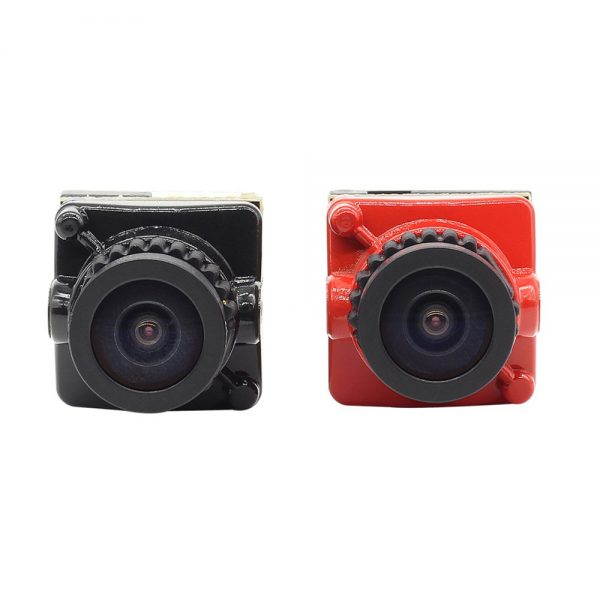

Color: Black, Red (optional)
Image Sensor: 1/2.7 CMOS
Resolution: 1200TVL
TV System: NTSC/PAL Switchable
Illumination: 0.05Lux
BW: 0.001Lux (F1.2,50IRE, AGC ON)
S/N Ratio: >50dB (AGC OFF)
WDR: Support
OSD Programming Board: Support
Language: Chinese/English/Italian/Russian
OSD Programming Board: Support
Language: Chinese/English/Italian/Russian
Operating Voltage: 5 – 30V
Operating Temperature: -10℃ ~ 50℃
Storage Temperature: -40℃ ~ 60℃
Dimension: 19x19x27mm
Weight: 8.9g
Storage Temperature: -40℃ ~ 60℃
Dimension: 19x19x27mm
Weight: 8.9g
Specifications of EWRF e7087U:
Frequency: 5.8G
Channel: 48CH
Transmitting Power: 25mW/100mW/200mW/OFF(Pitmode)
Power Supply: DC7-24V
Supply Current: 110mA(25mW) / 160mA(100mW) / 210mA(200mW)
Weight: 2.2g(Including antenna weight 0.8g)
Size: Design for RunCam
Frequency:
| Band | CH1 | CH2 | CH3 | CH4 | CH 5 | CH6 | CH7 | CH8 |
| A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| b | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| c | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| d | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| E | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
| F | 5362 | 5399 | 5436 | 5473 | 5510 | 5547 | 5584 | 5621 |
Features of EWRF e7087U:
– Adjustable 4 modes: 25mW/100mW/200mW/OFF
– Adjustable 4 modes: 25mW/100mW/200mW/OFF
– Betaflight/Cleanflight OSD configuring parameter
– Support SBUS configuring parameter
– Clean powerup and channel switching without interference to others
– Miniature and light weight design
Note:
– Make sure that there is enough space for airflow when installing the module on the drone in case the overheating protection starts to reduce the power even to shut down at the worst.
– Make sure that there is enough space for airflow when installing the module on the drone in case the overheating protection starts to reduce the power even to shut down at the worst.
– Please install the antenna before powering up for a longer use life.
English Manual for EWRF e7087U, Click Here
Package Included:
1x EWRF e7087U VTX
1x 1200TVL CMOS Camera
1x EWRF e7087U VTX
1x 1200TVL CMOS Camera
