Description
Emax Tinyhawk Indoor FPV Racing Drone BNF RTF F4 4in1 3A 15000KV 37CH 25mW 600TVL
Specification:
Brand name: Emax
Item name: Tinyhawk
| Item | Specification |
| Main PCB |
Flight Controller: F4 (MATEKF411 firmware)
ESCs: 4in1 3A
Receiver: EMAX Tiny receiver (Compatible with Frsky D8 mode)
|
| Motor |
Stator: 8mm x 2.5mm (08025)
KV: 15000kv
Weight: 2.5g Bearing Size: Φ1.5*Φ4*2mm Shaft Diameter: Φ1.5mm |
| Propeller |
Diameter: 40mm
Blades: 3
Pitch: 23mm
Weight: 0.5 g
|
| Camera and VTX |
VTX Power: 25mw
Channels: 37CH
Camera Properties: 600TVL CMOS
|
| Battery |
Voltage: 1s 4.35v HV
Capacity: 450 mAh
Discharge rating: 80c/160c
|
| Goggles(RTF Only) |
EMAX Transporter Goggles Specifications:
Maximum appearance size 140×153×90(mm)
Weight (without battery) 398g
Resolution 480×272
Battery 1 cell 18650 lipo battery
|
| Transmitter(RTF Only) |

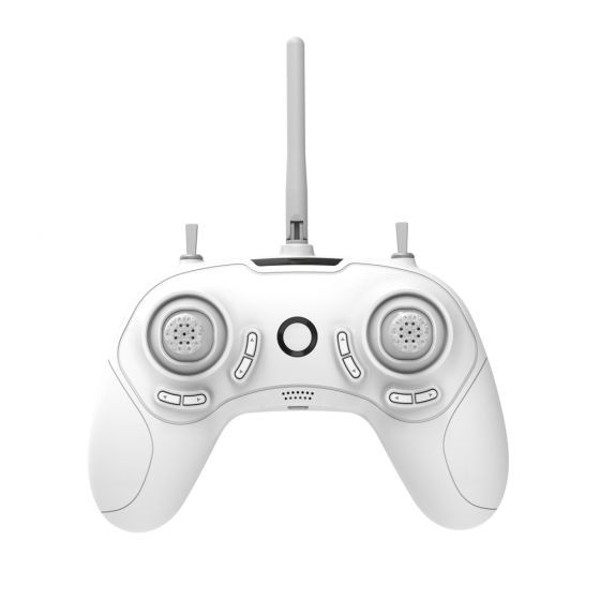

EMAX E6 Transmitter Specifications:
Maximum appearance size 181×213×80(mm)
Weight (without battery) 211g
Number of channels 6 Channels
Transmission frequency 2.4GHz ISM Band(2400MHz~2483.5MHz)
Output Power 22dbm
Modulation GFSK
Battery 1 cell 18650 lipo battery
|
Feature:

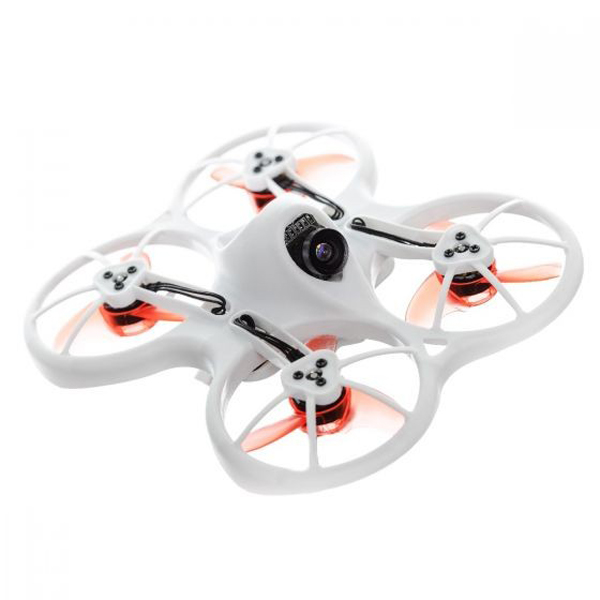

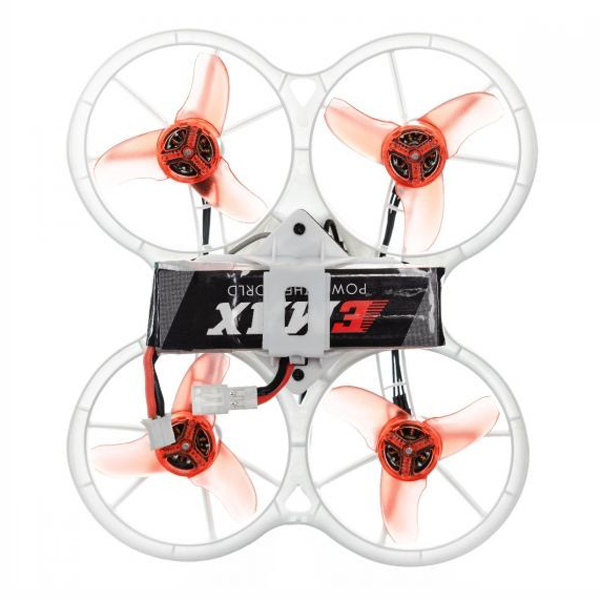

– 75mm Indoor racing drone
– 08025 brushless motor with durable ball bearing for increase flight and low maintenance
– Durable polypropylene plastic frame with propeller guards
– Motor beeper function. Find your tinyhawk after a crash
– Speeds up to 56kph
– Up to 4 minutes flight time on single battery
– Fast F4 Processor for smooth stable flight characteristics
– MPU6000 gyro for vibration free operations
– Unique inverted motor design to keep CG as low as possible to fit in the smallest of spaces
– 25mw VTX and 600tvl Camera included for fun FPV flight via FPV style goggles
– Smart Audio function to change VTX channel via your transmitter
– OSD settings control to customize flight feel
– Pre-tuned from factory with expert pilots and new pilots in mind. 3 rate profile settings for all types of flying feel
– Plug in type motors for easy maintenance
– 1s High Voltage (HV) 450mah lipo included
– Frsky compatible D8 receiver built in to FC
– Custom carbon fiber themed carrying case
Recommend parts (Not Included):
Frame kit: Click 75mm Polypropylene Frame Kit
Motor: Click Tinyhawk 08025 Brushless Motor 15000KV
Propeller: Click Tinyhawk Avan Propeller
Battery: Click Tinyhawk 1S 80C/160C HV 450mah Lipo Battery
LED LED Strip Light : Click 1M 2.5mm LED Non-Waterproof 60 LED Strip Light
Package Included:
BNF Version:
1 x Tinyhawk FPV Racing Drone
1 x Light weight soft carry case, with carbon fiber look
1 x USB High Voltage capable 4 port USB Charger
1 x 1s High Voltage (HV) 450mah lipo battery

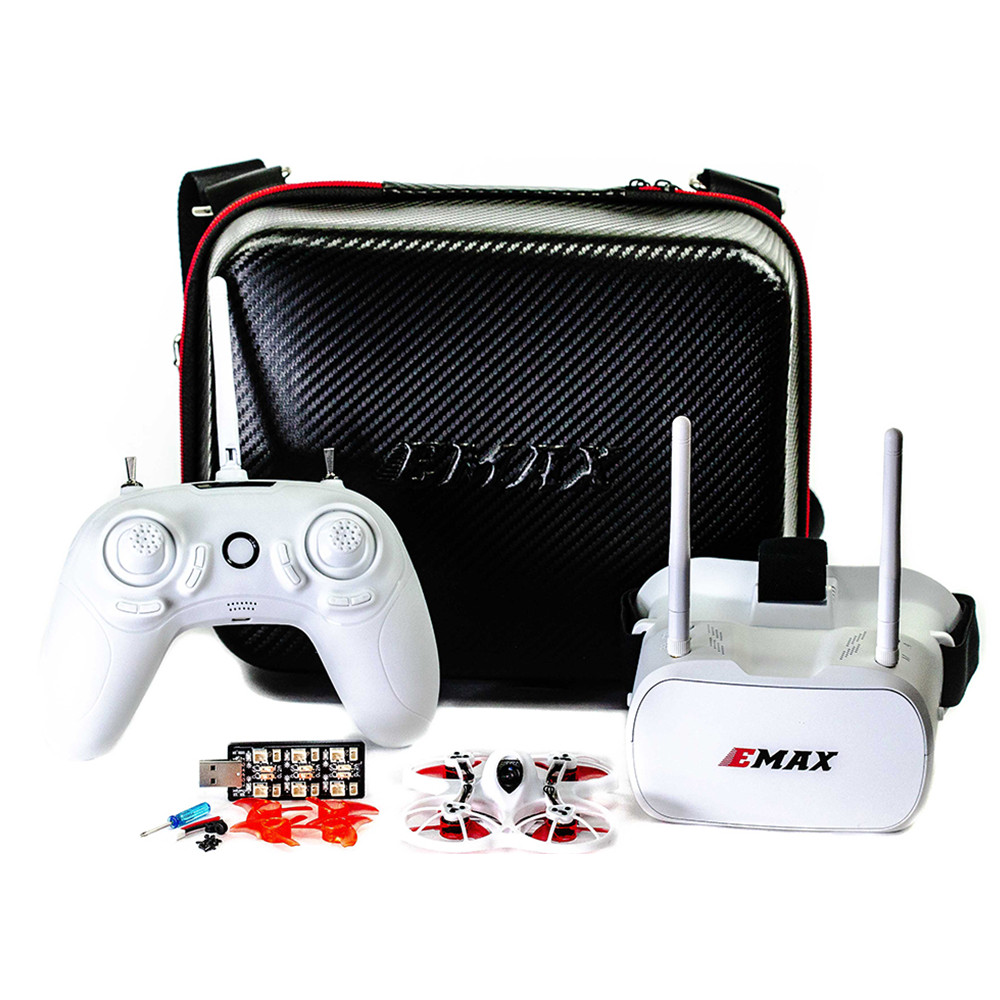

RTF Version:
1 x Tinyhawk FPV Racing Drone
1 x Light weight soft carry case, with carbon fiber look
1 x USB High Voltage capable 4 port USB Charger
1 x 1s High Voltage (HV) 450mah lipo battery
1 x FPV Goggles
1 x Transmitter
