Description

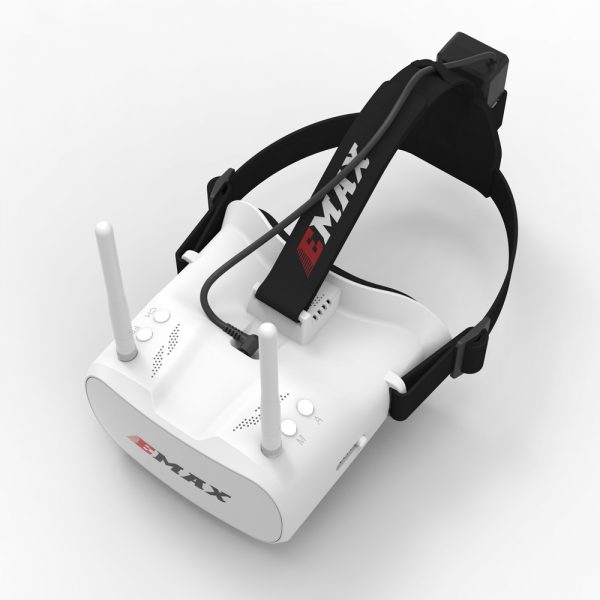

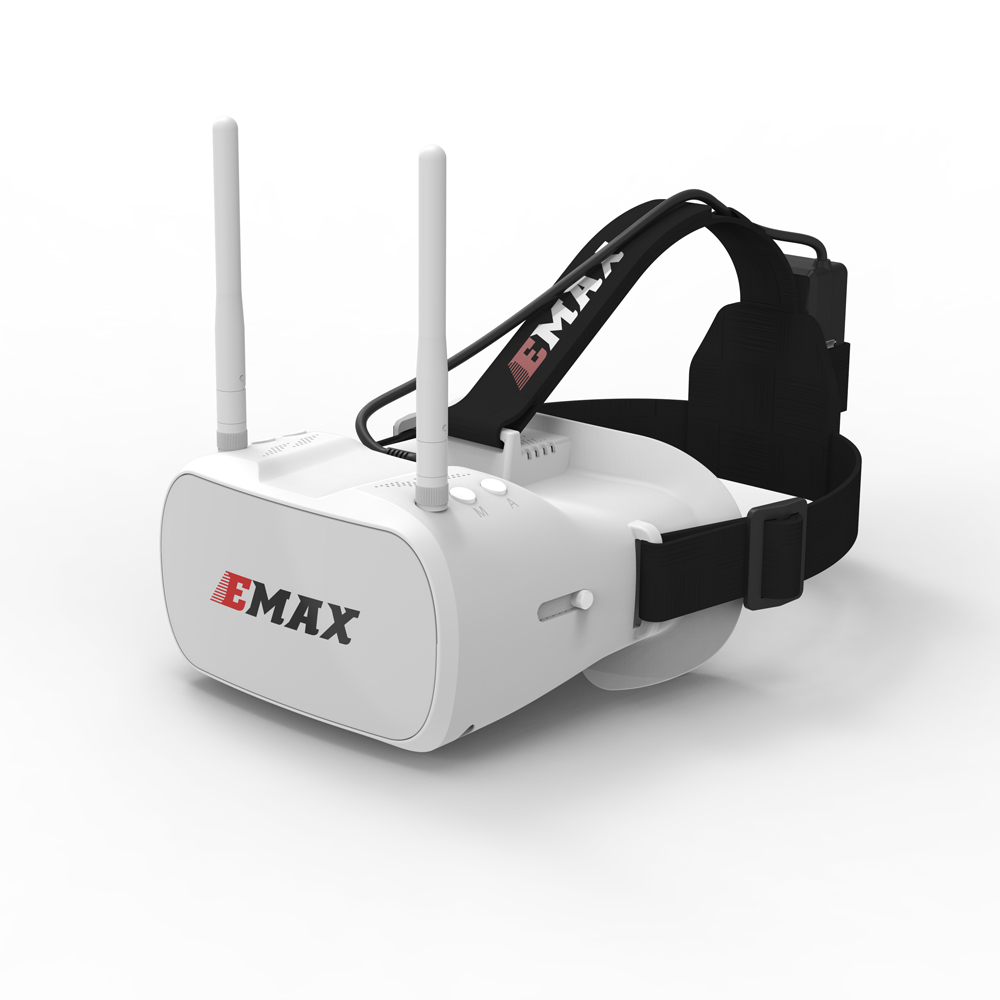

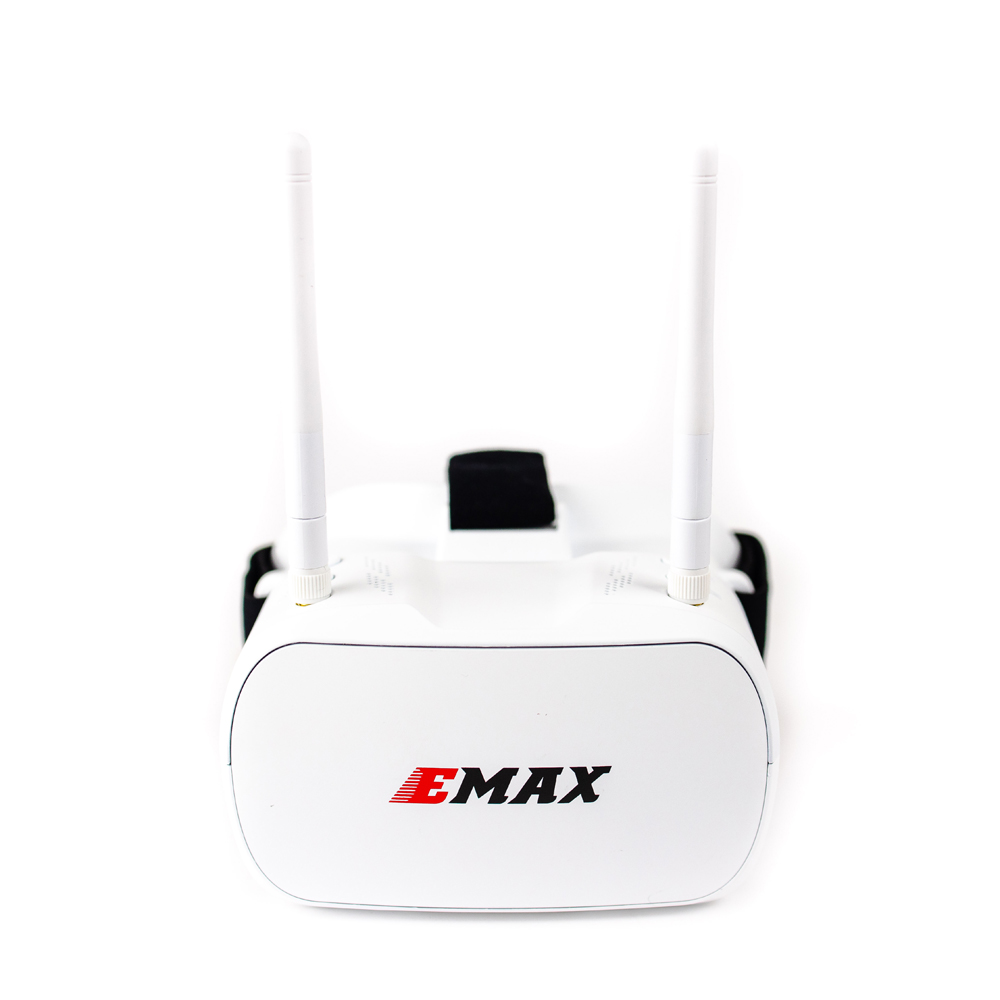

Emax Tinyhawk 5.8G 48CH Diversity FPV Goggles 4.3 Inches 480*320 Video Headset With Dual Antennas 4.2V 1800mAh Battery For RC Drone
Description:
Brand name: Emax
Model: Tinyhawk
Features:
* Built-in 5.8GHz 48CH diversity receiver, compatible with most transmitters on the market. 2.Built-in 480 × 272 resolution 4.3-inch display.
* Dual antenna reception. 4.Input voltage: 3.3-6.0V.
* Battery Cartridge built-in 5V/1.5A charger.
Battery Cartridge Introduction:
The battery cartridge comes preinstalled with a 4.2V/1800mAh 18650 battery. If a battery reinstall is required please use caution making sure to install with the correct polarity. The battery can be charged in the cartridge with a micro USB cable. When the battery is charging the indicator light is green. The indicator light will turn red when charging is complete.
Goggle Key operation
1.Menu button – Click to enter the menu. From the menu, you can select the brightness, contrast, saturation, language, or exit option. The menu will automatically exit after 3 seconds if there’s no input.
2.Auto Scan key – Automatically scan all 48 available video channels for the strongest signal being emitted. If you click the frequency band selection button or the frequency channel selection button during the search, it will lock at the current frequency channel.
3.Frequency band selection button – Under normal circumstances, this button can be used as the frequency band selection button to select the A/B/E/F/R/H frequency bands. After entering the menu, this button acts as the “+” button for the adjustment.
4.Frequency channel button – Under normal circumstances, this button can be used as the frequency channel button to select 1-8 frequency channels. After entering the menu, this button acts as the "-" button for the adjustment.
Package Included:
1x Emax Tinyhawk 5.8G 48CH Diversity FPV Goggles
