Description

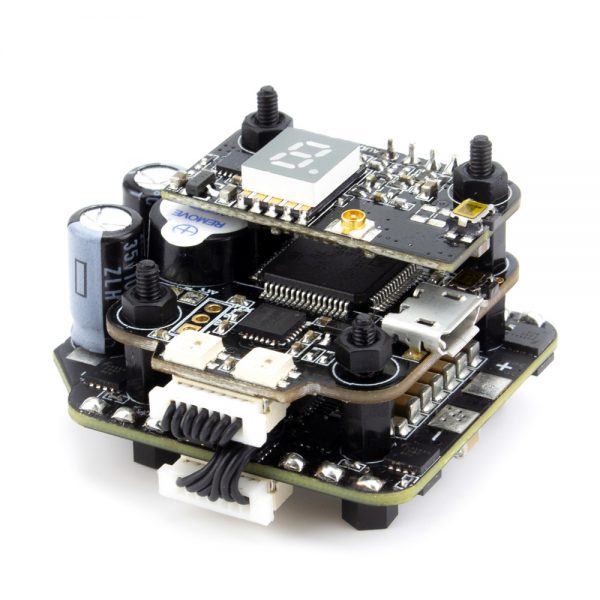

EMAX Mini Magnum 2 F4 35A Flytower 20x20mm 35A 2-6S BLHeli_32 4in1 ESC + F4 Flight Controller OSD+VTX
Specification(Instruction manual):
Brand name: EMAX
Item name: mini magnum 2 F4 35A stack
Total weight: 17.21g
F4 flight controller:
(OMNIBUSF4 Firmware)
STM32F405 MCU
MPU6000 accelerometer/gyro (connected via SPI)
On-board OSD
On-board Buzzer
Integrated 5V/3A BEC
Dedicated PPM/ Sbus receiver input
30x27mm board with 20mm mounting holes
35A BLHeli_32 ESC:
Continuous current 35A ( max burst 40A)
Supply voltage 2-6S Lipo( 1700kv Motor LIMIT for 6S )
STM32F051K6U6 MCU
BLHeli_32 firmware,support DSHOT,MULTISHOT,ONESHOT125
Top quality MOSFET
3oz high TG PCB board
32x37mm board with 20mm mounting holes.
Current Sensor
Frequency band: 5658-5945MHz (FCC Compliant Channels / with HAM unlock)
TBS Audio Control
Channel: 37
Transmit power: 13dBm/23dBm(25mW/200mW)
Supply voltage: 4.5V-5.5V
Antenna port: 50Ω
Package included:
1x EMAX mini magnum 2 F4 35A stack
