Emax Babyhawk-R RACE(R) Edition 112mm F3 Magnum Mini 5.8G FPV Racing RC Drone 3S/4S PNP/BNF

Specification:
Brand Name: EMAX
Model: Babyhawk R
Item Name: 112mm Wheelbase F3 Magnum 5.8G FPV Racing Drone
Material of Frame: Carbon Fiber
Wheelbase: 112mm
Arm Thickness: 3mm

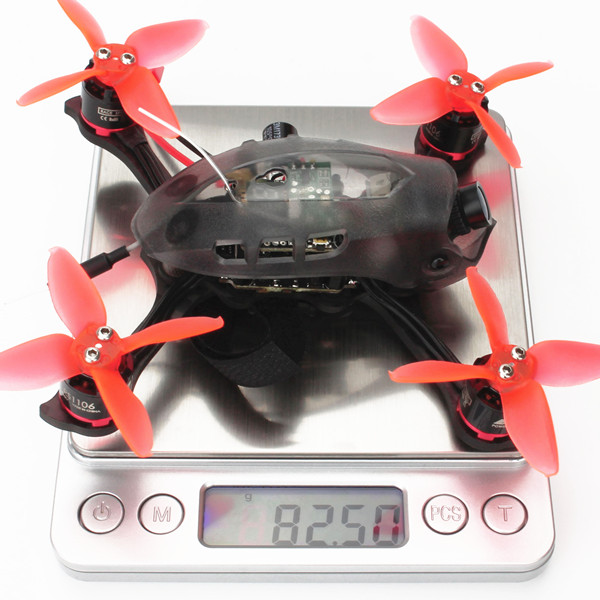

Weight: 82.5g ( without battery)

Flight Controller & ESC : Emax F3 Magnum FC & 12A 4 In 1 ESC mini Flytower
Motor: Emax RS1106 6000KV Brushless Motor
Propller: Emax Avan Micro 2 Inch 4-Blade Propeller
VTX: 5.8G 40CH 25/200mW Switchable VTX
Camera: Foxeer Micro Arrow 650TVL CCD Camera
Version: PNP Version ( Without Receiver)
               BNF Version ( With Emax Tiny Receiver, compatible with Frsky D8 Mode )
Lipo Battery: Support 3S / 4S Lipo Input

Emax F3 Magnum FC & 12A 4 In 1 ESC mini Flytower
Tower Height: 19mm
Tower Net Weight: 8.65g
Mounting Hole: 20x20mm

F3 Flight Controller	Firmware	Omnibus F3 Betaflight Target
	MCU	STM32F303
	Accelerometer/Gyro	MPU6000 ( Connected via SPI )
	OSD	Built-in betaflight OSD
	Buzzer	On-Board
	BEC	Integrated with 5V@ 3A BEC output
	LED Pad	Addressable
	Avaliable Receiver Type	PPM/SBUS/Spektrum DSM
	Size	24x24mm; 20x20mm (M2) Mounting Hole
	Net Weight	3.32g

12A BL_S 4 In 1 ESC	Con. Current	12A
	Burst Curren	15A (10S)
	Support Voltage	3-4S Lipo
	Firmware	BLheli_S
	MCU	EFM8BB21F16G , 50mhz
	Choic of Protocol	DShot up to 600, Multishot, Oneshot125
	PCB Board	30z High TG PCB Board
	Size	24x25mm ; 20x20mm ( M2 ) Mounting Hole
	Net Weight	4.40g

Features:

-FC/ESC AIO – Mini Magnum Tower

-112mm Carbon Fiber Frame

-Only weighs 82.5 grams

-Customizable Shell Canopy with adjustable camera positions

-Pre-tuned Betaflight Firmware for optimized flight performance

-OSD integrated with Low-Voltage detection

-40 Channel 5.8g VTX switchable 25/200mw

-Compatible with EMAX Transmitter/Goggles/Accessories

-Utilizes Micro CCD Sensor Camera

-Accepts 3-4 cell LiPo batteries

Babyhawk Race Key Features



FRAME


-Light weight carbon fiber frame with impact resistant plastic canopy available in several colors

-Strong 3mm arms with lower pro-file arms to reduce drag.

-Integrated flight controller vibration dampening system for a smoother and more locked in feeling flights





-Powered by the new Magnum Mini tower system with F3 FC + 4 in 1 12A BLHELI S ESC 3-4s

-Betaflight Firmware 3.2.X with comes pre tuned at the factory for optimized flight performance

-Class leading Emax RS1106 6000kv brushless motors paired with the new Avan 2” quad blade propeller for maximum speed and control.





-650TVL Micro CCD camera with tuned profiles for different light condition. CCD is preferred by more pilots over CMOS for its better handling of high contrast lighting and resistance to “jello” in your flight video.

– Canopy has adjustable camera positions so can tune for track speed and size.

– 40 Channel 5.8g VTX with LED info display and switchable transmission power from 25/200mw

Package Included:
1x Emax Babyhawk R 112MM Frame
4x Emax RS1106 6000KV Motor
1x F3 Magnum F3 Flight Controller
1x 12A BLheli_S 4 In 1 ESC
4x EMAX AVAN Micro 2 Inch Propeller
1x Emax Receiver ( Only BNF Version has)
1x 650TVL Camera
1x 5.8G 40CH 25/200mW VTX
