Description
Specification:

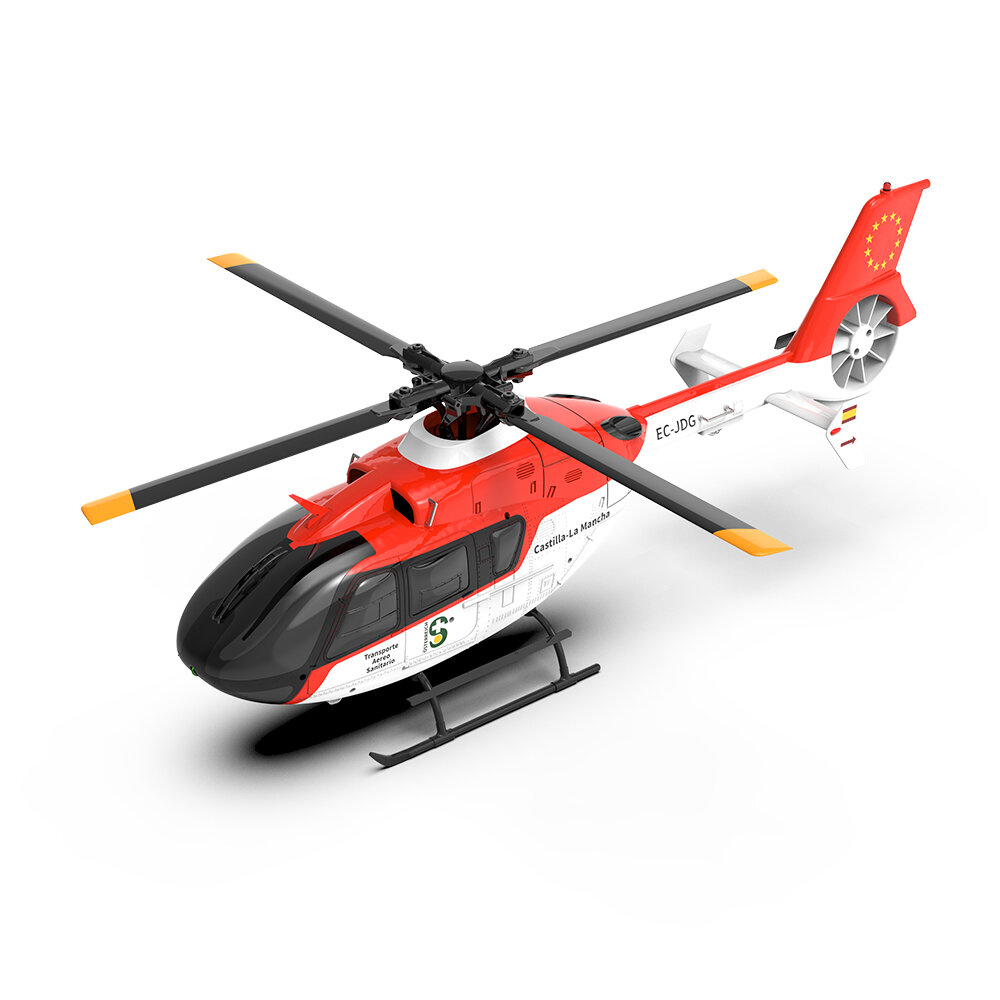

Item: E135Product size:Rotor diameter:330mmBody length: 350mmHeight:120mmWeight:228gRadio Frequency Band: 2.4GHzRemote control distance (m): more than 120 metersBattery:LI-POLY 7.4V(1200MAH) 25CCharging time: about 60 minutesUse time: 9-12 minutes
Function Description:
1> According to the 36:1 scale reduction of the Eurocopter EC135 helicopter, it has high simulation appearance details and cool lights.
2> Flybarless design, dual-axis co-drive motor, electronic stability enhancement system, more accurate feel, more stable flight, optimized structure to reduce the chance of damage.
3> The propeller is designed with the principle of aerodynamics to provide strong power and self-stability of the body. It has high efficiency, power saving and long flight time. The paddle is made of nylon + carbon fiber composite material, which has high strength, good toughness, impact resistance, no deformation and durability.
4> Use 2408 1100KV brushless motor for self-stable co-drive, reduce gear restlessness, low noise, high torque, sufficient power, high efficiency, special high temperature resistant magnetic steel can withstand high temperature of 150 degrees without damage, and improve service life.
5> The tail-locking motor uses a special 1204 4200KV brushless motor, which has the characteristics of high temperature resistance, fast responses, stable tail-locking, and is not easy to be damaged after long-term work.
6> Use enlarged 4.3g digital steering gear, high torque, fast responses, high precision, and precise centering. The response speed is 60°/0.05ms, which makes the aircraft fly accurately, feel better, and last longer. With 3 servos, it can fly accurately even if there is 4-5 winds outdoors.
7> Adopt 6-axis gyroscope. With a stable, fast and precise flying attitude, it is especially suitable for beginners to fly.
8> Using high-precision visual (optical flow) positioning and air pressure fixed-altitude mode, indoor and outdoor (limited height) have fixed-point functions, which are easier for beginners to master.
9> Adopt 2.4GHZ communication protocol.
10> Adopt high-precision CNC rotor head swash plate to optimize the structure, reduce the weight, and greatly reduce the chance of aircraft damage.
11> The casing adopts hot runner injection molding process, which has high simulation details, good elasticity, toughness, and is not easy to be damaged.
12> Professionally customized high-rate lithium polymer 7.4V 1200mah 25C battery, high discharge rate and long service life, the flight time is about 9-12 minutes, and the normal use can reach 500+ cycles. It has the functions of preventing overcharging, over-discharging, and low-battery indication, which can effectively prolong the service life of the battery.
13> Intelligent module battery, with charging protection and low power protection function, using the general TYPE-C plug on the market, charging is more convenient.
14> Two-way return low battery reminder, safer flight.
Note:
1. Please understand the product might have some colour difference due to different monitors and scenes.
2. Please allow slight deviation for the measurement data.
3.User manual click here
Package included:
1 x E135 RC Helicopter1 x Transmitter1 x USB Charger1 x Battery(1,2 or 3 pcs, optional)1 x Tail Blade4 x Main Blades1 x User Manual
