Description

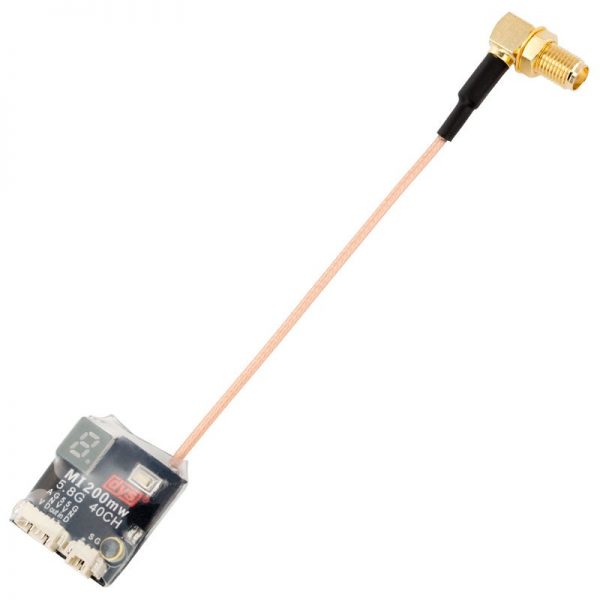

DYS MI200MW 25mW/200mW Switchable 5.8G 40CH AV FPV Transmitter Right Angle Connector
Specification:
Brand: DYS
Transmission frequency: 5.8Ghz
Transmitting power: 25-200mW

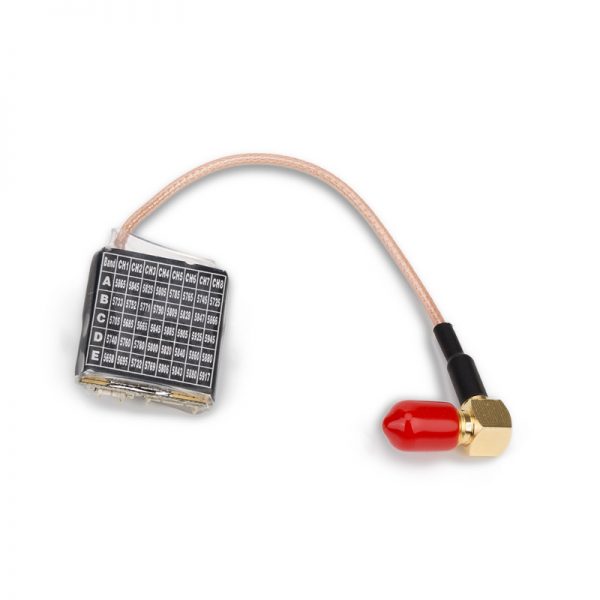

Frequency: 40CH
Transmission distance: 1000m
Input voltage: 5V
Antenna connector: SMA bore
Operating current: 50mA / 5V
Working temperature: -10 ~ 85 ℃
Video format: NTSC / PAL
Video bandwidth: 8M

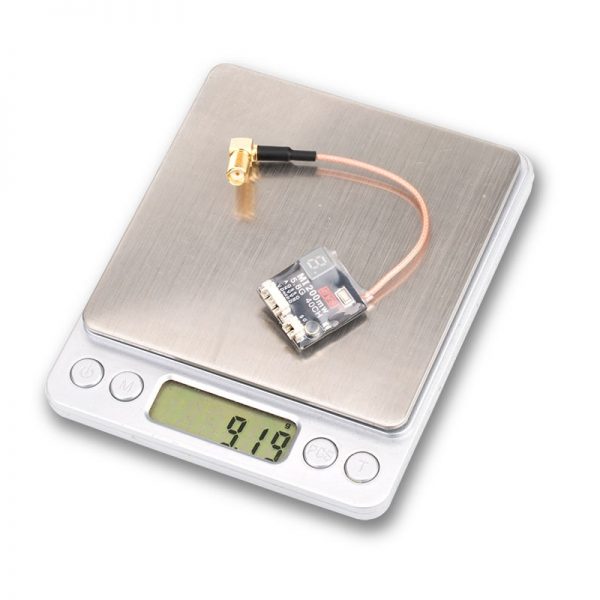

Weight: 6g
Antenna Cable Length : About 77mm
Size : 24.7mm x 22.2mm x 8mm
Antenna Cable Length : About 77mm
Size : 24.7mm x 22.2mm x 8mm
Operation Instructions:
The factory default 200mw (LED blue light), long press 5 seconds to switch 25mw (LED red light) The display shows "L", 200mw display "H"
Press and hold for 3 seconds to switch FR / CH
Short press to select frequency band

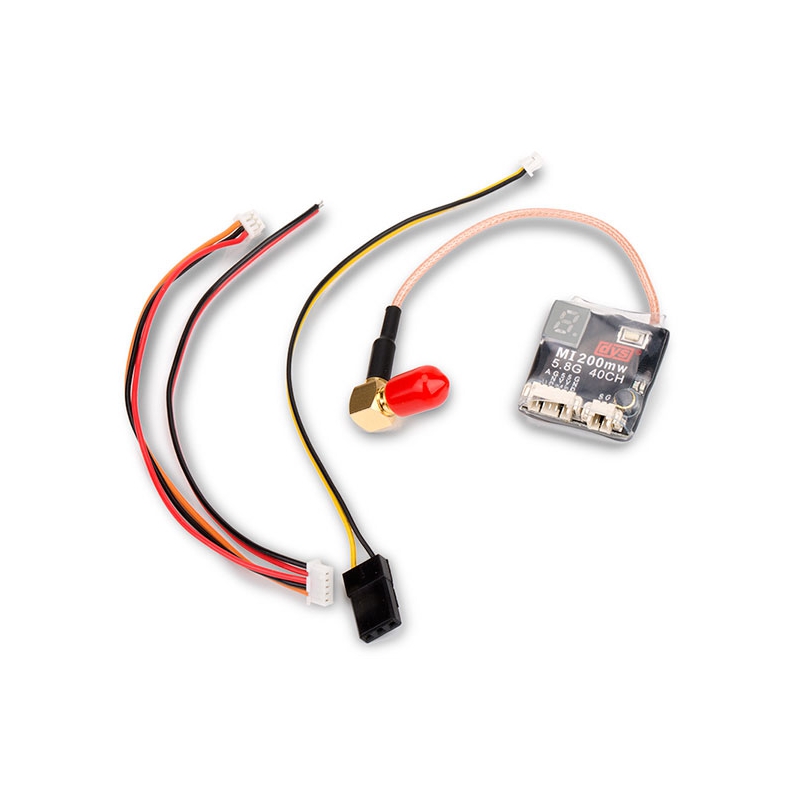

Package included:
1 x DYS Transmitter
2 x Cable
,
,
,
,
,
,
