DYS Fire 2206 2100KV 2300KV 2600KV 3-6S Brushless Motor For 200 210 220 280 FPV Racing Frame
Description:
2100KV:
KV: 2100
Configu ration: NP
Stator Diameter: 22.0mm
Stator Length: 6.0mm
Shaft Hole Diameter: 3mm
Shaft Hole Diameter: 3mm
Shaft Diameter: 5.0mm
Motor Dimensions(Dia.*Len): Φ27.7×17.7mm

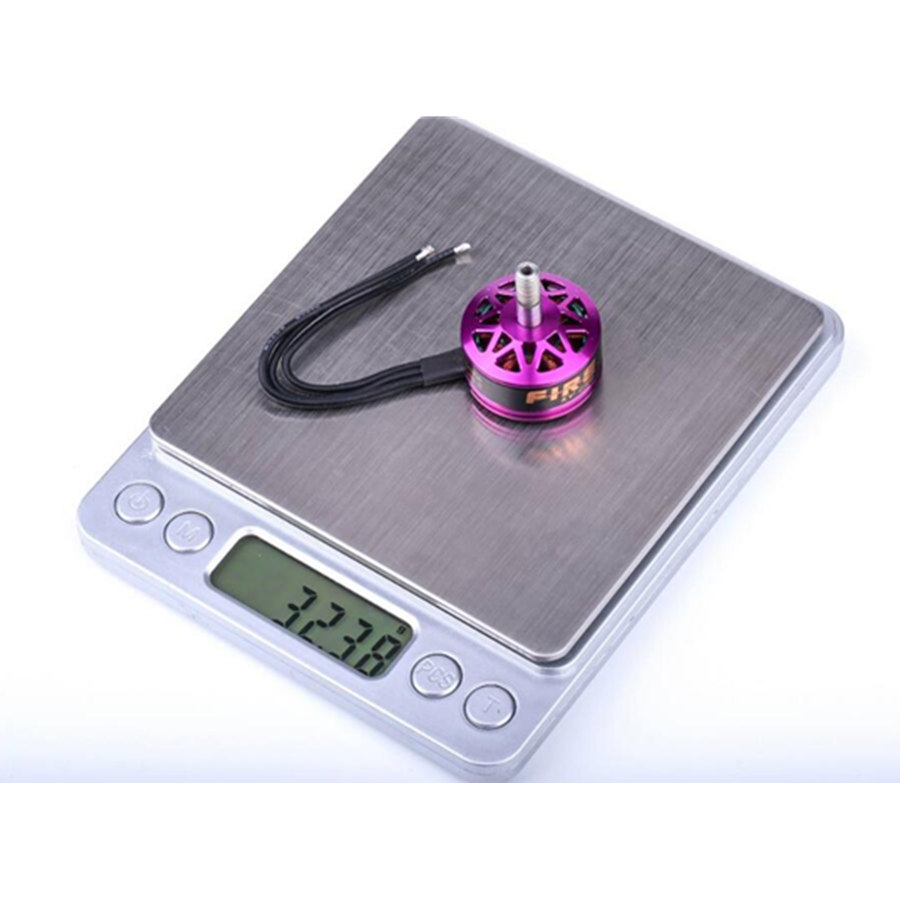

Weight (g): 32g
No.of Cells(Lipo): 3-6S
Pull: 1280g
Max Continuous current(A): 27.8A
Max Continuous Power(W): 444.8W
Internal resistance: 0.07Ω
2300KV:
KV: 2300
Configu ration: NP
Stator Diameter: 22.0mm
Stator Length: 6.0mm
Shaft Hole Diameter: 3mm
Shaft Hole Diameter: 3mm
Shaft Diameter: 5.0mm
Motor Dimensions(Dia.*Len): Φ27.7×17.7mm
Weight (g): 32g
No.of Cells(Lipo): 3-6S
Pull: 1450g
Max Continuous current(A): 31.7A
Max Continuous Power(W): 507.2W
Internal resistance: 0.06Ω
2600KV:
KV: 2600
Configu ration: NP
Stator Diameter: 22.0mm
Stator Length: 6.0mm
Shaft Hole Diameter: 3mm
Shaft Hole Diameter: 3mm
Shaft Diameter: 5.0mm
Motor Dimensions(Dia.*Len): Φ27.7×17.7mm
Weight (g): 32g
No.of Cells(Lipo): 3-6S
Pull: 1200g
Max Continuous current(A): 34.8A
Max Continuous Power(W): 556.8W
Internal resistance: 0.05Ω
Package included:

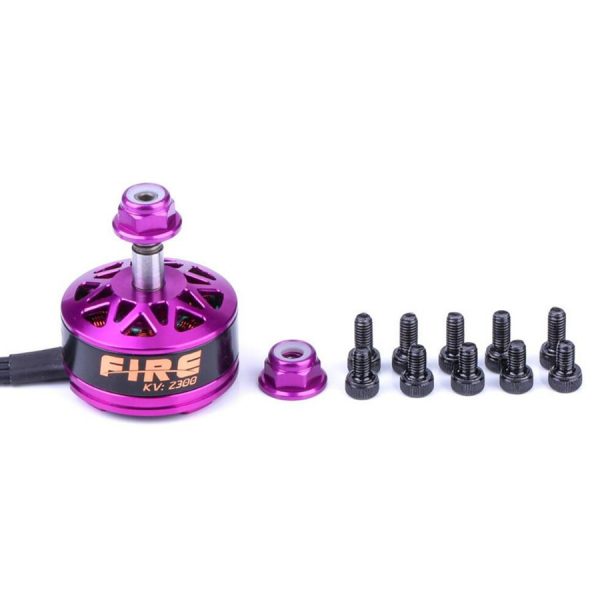

1 x DYS Fire 2206 motor
