Description
Description:
Brand: DSSERVO

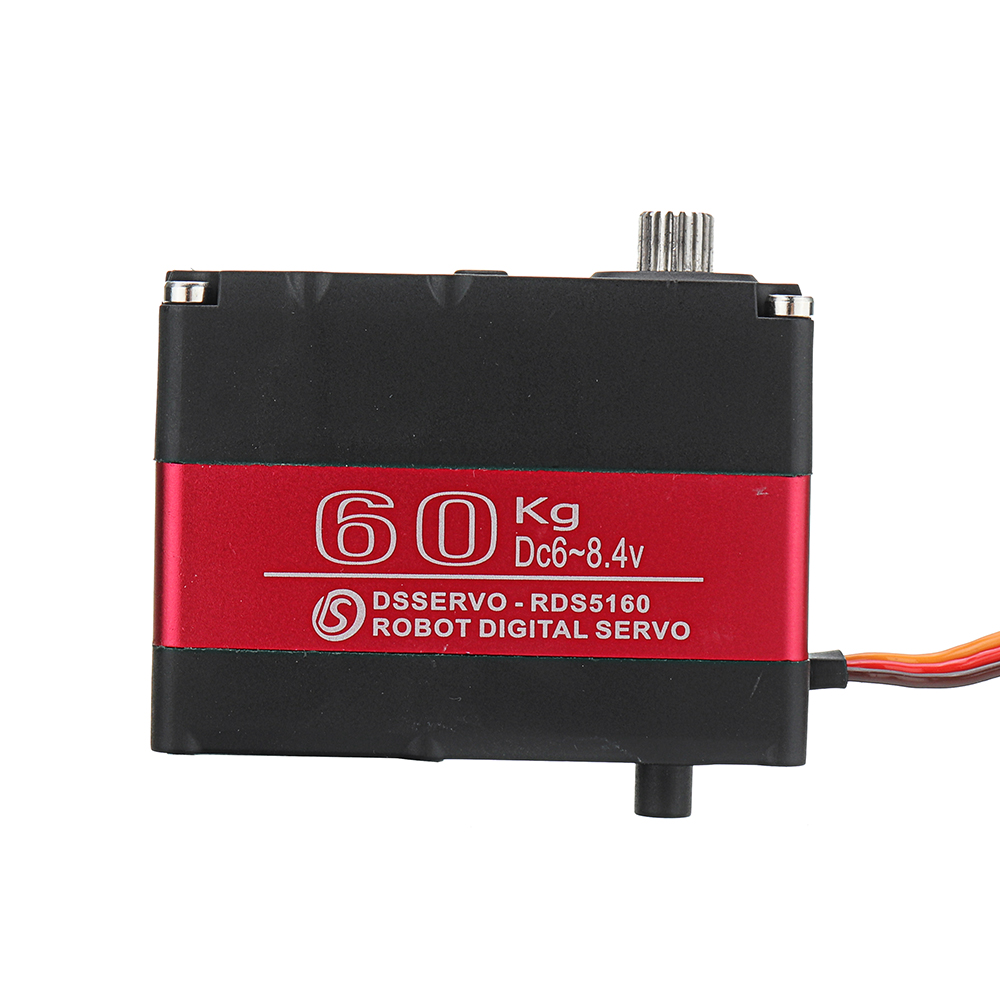

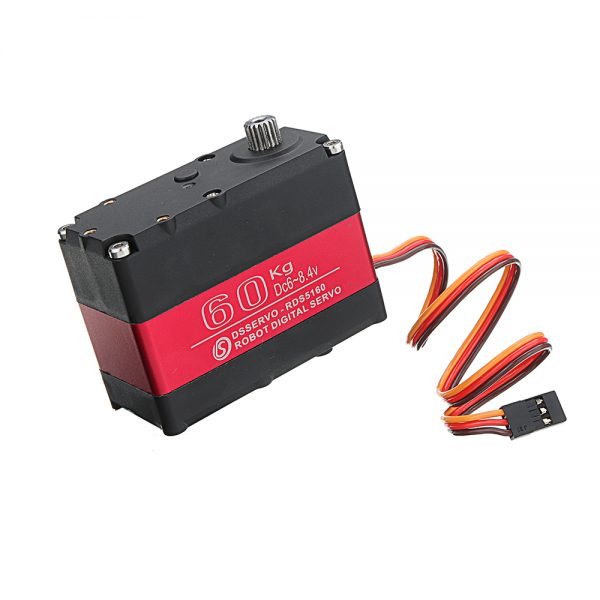

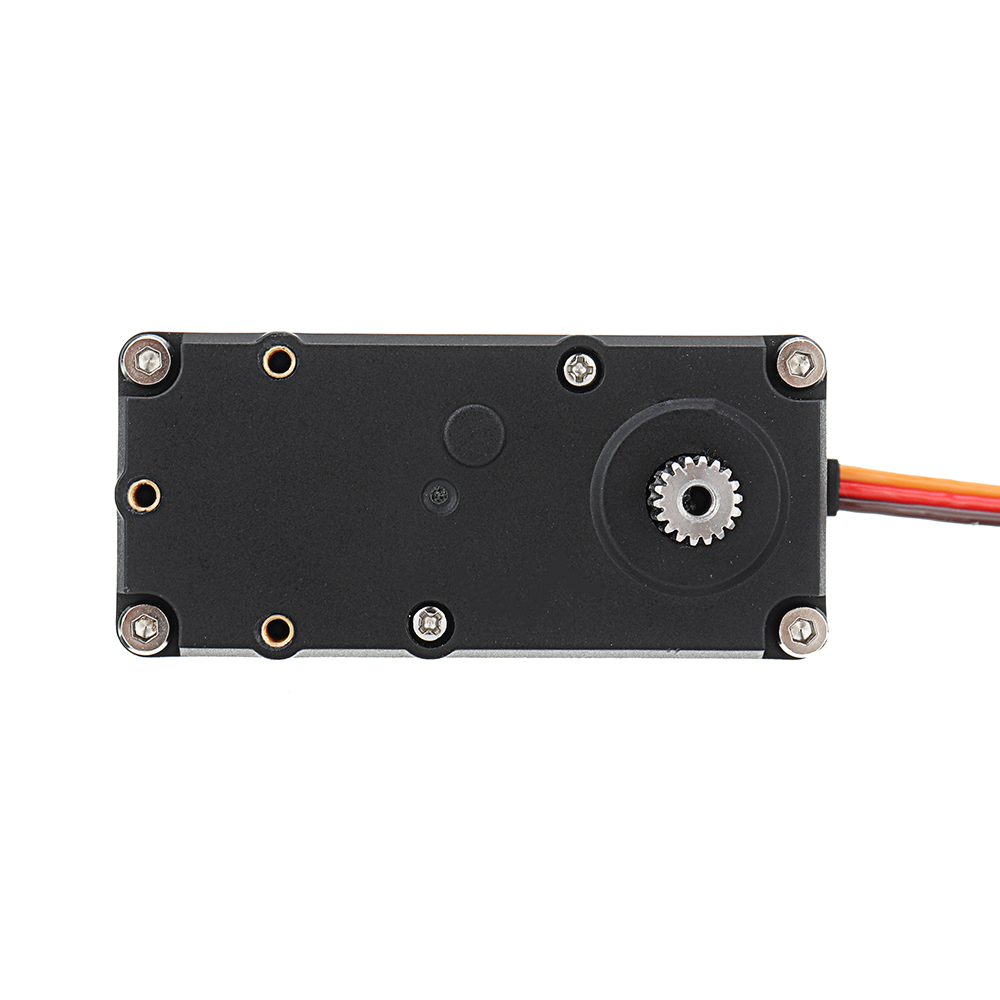

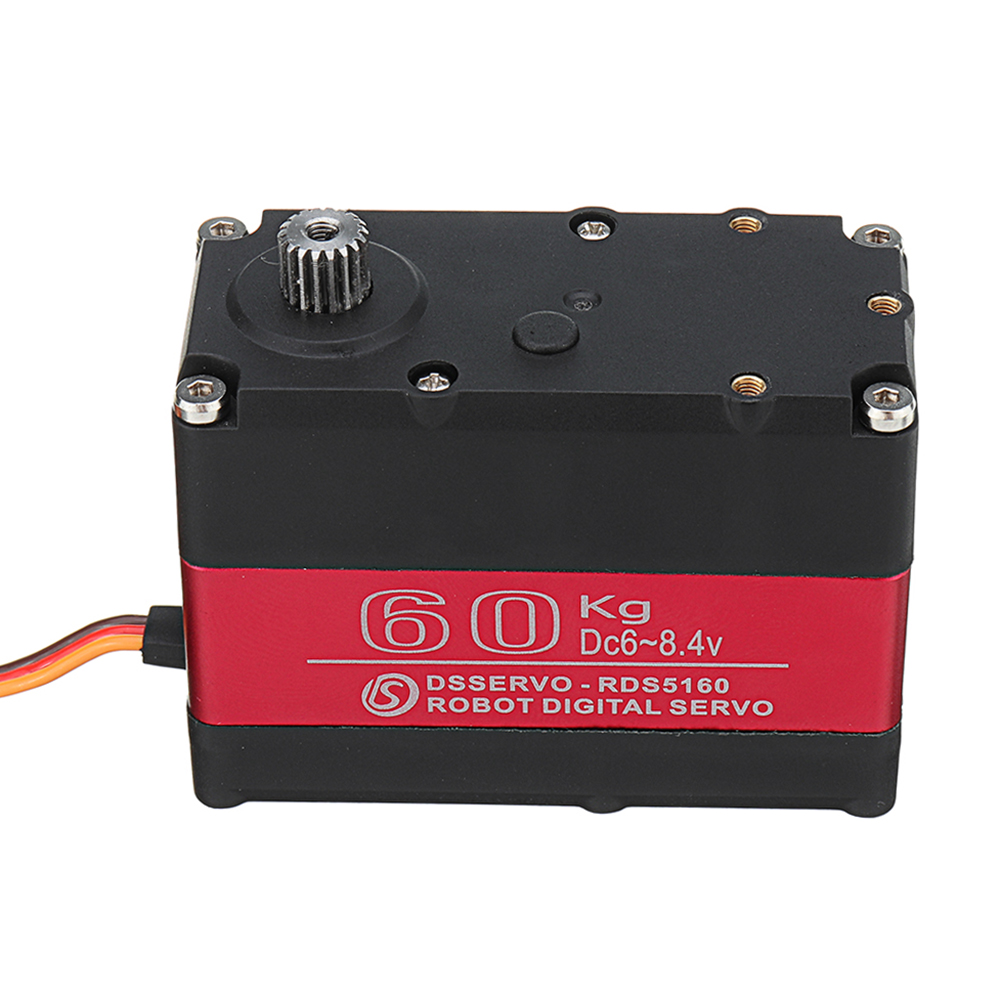

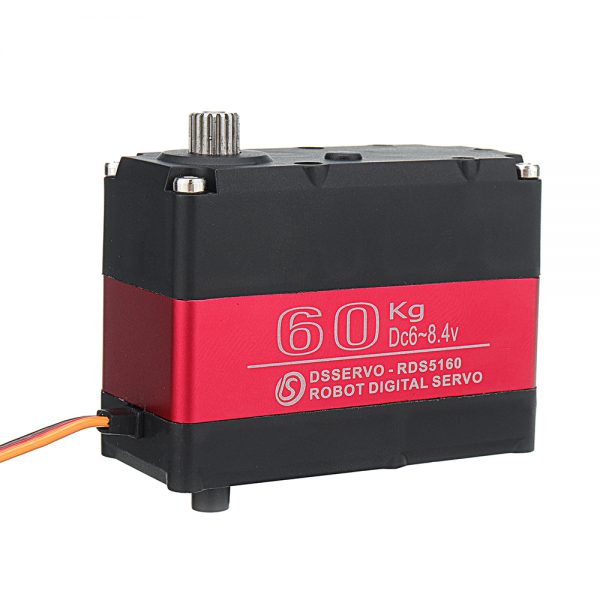

Item: RDS5160 Digital Servo
Type: 180°/ 270°
Operating Voltage: 6.0-8.4 DC Volts
Stall Current: 3.5A/5A/6.2A(6.0V/7.4V/8.4V)
Torque: 58kg.cm(6.0V), 65kg.cm(7.4V), 70kg.cm(8.4V)
Speed: 0.17sec/60°(6.0V), 0.15sec/60°(7.4V), 0.13sec/60°(8.4V)
Pulse: 500-2500us
Frequency: 50-333Hz
Dead Band: 3us
Neutrol Position: 1500us
Control: PWM
Rotation: 180°/ 270°Counterlockwise

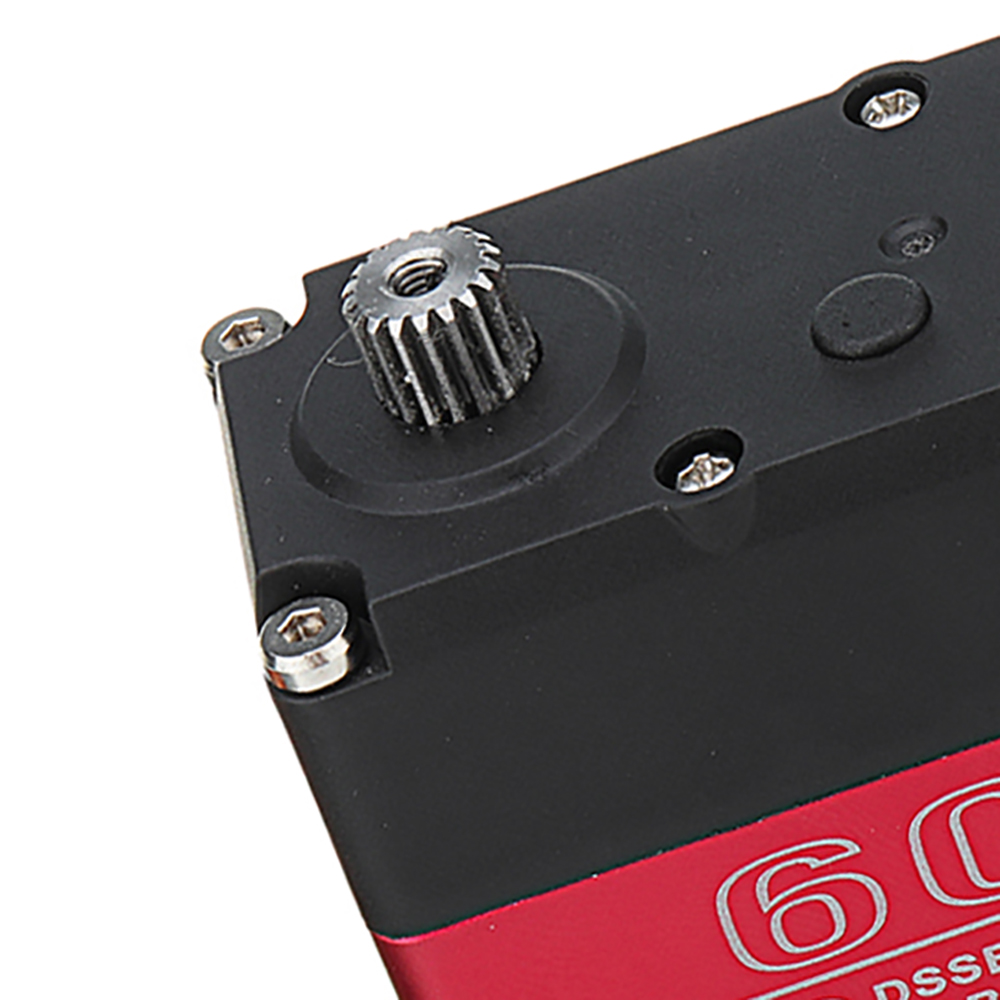

Gear: Metal Gear
Teeth: 25T
Wire: 300mm
Servo Dimention: 60*30*48 mm
Application: For RC Robot Arm DIY
Package Included:
1 x DSSERVO RDS5160 Digital Servo(with holder)
