Description

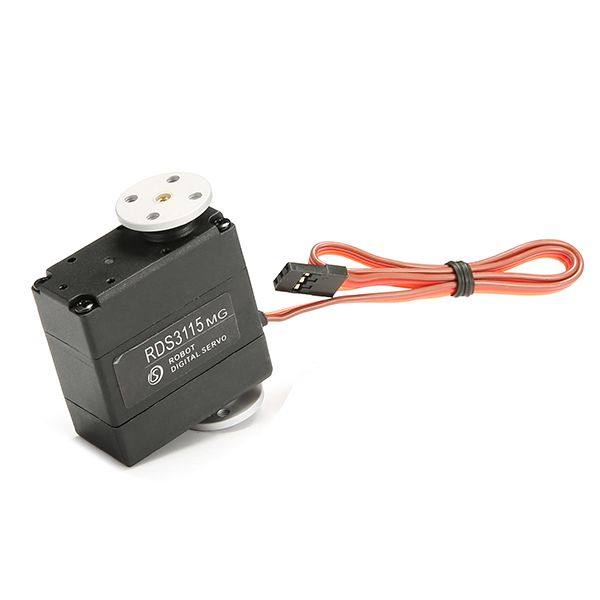

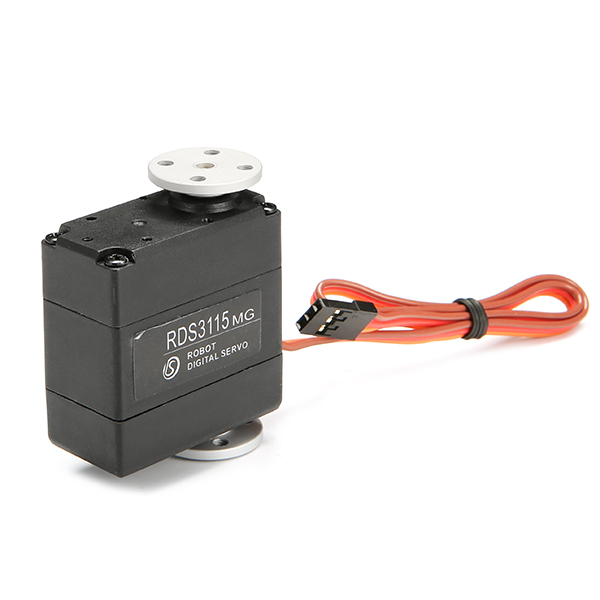

DS RDS3115MG 15KG Large Torque 180 Degree Biaxial Digital Servo for RC Robot
Description:
Brand: DS Servo
Item: RDS3115
Angle: 180 degree
Maximum PW: 500-2500μs
Working Voltage: DC 4.8-7.2V
Operating Speed: (4.8V) 0.16 sec/60°
Operating Speed: (6.0V) 0.14 sec/60°
Stall Torque: (4.8V) 13.5 kg.cm
Stall Torque: (6.0V) 15 kg.cm
Stall Torque: (7.2V) 17 kg.cm
Dimensions: 40X20X40.5mm
Weight: 60g
Gear: 25T
Fearture:
High-performance standard digital servo
Used for RC robot
Low operating noise,good linearity
Servo control with MCU
Assembled Photos:
Package included:
1 x RDS3115MG Servo

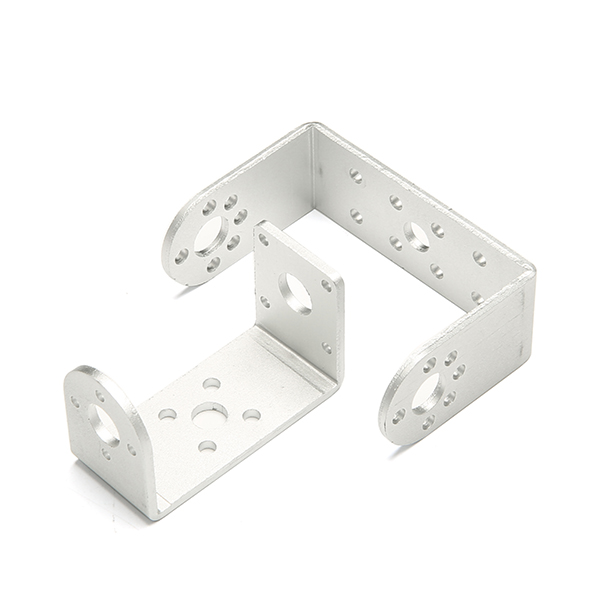

1 x Long U Holder
1 x Short U Holder
1 x Screws Bag
,
,
,
,
,
,
,
,
