Description
Description:
Brand: DSSERVO

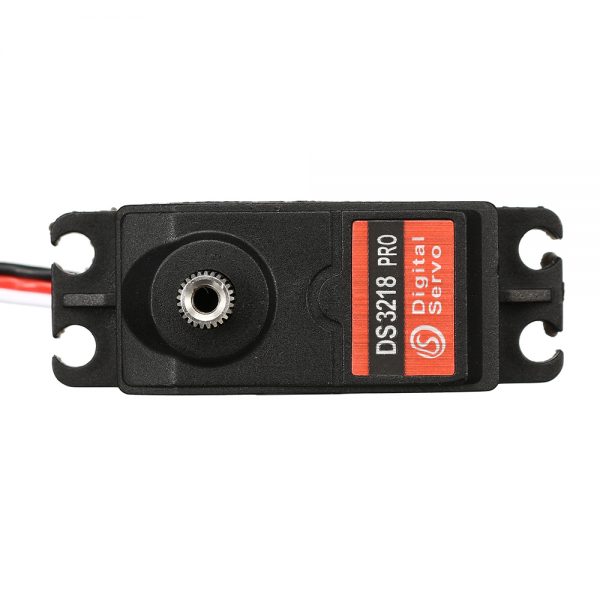

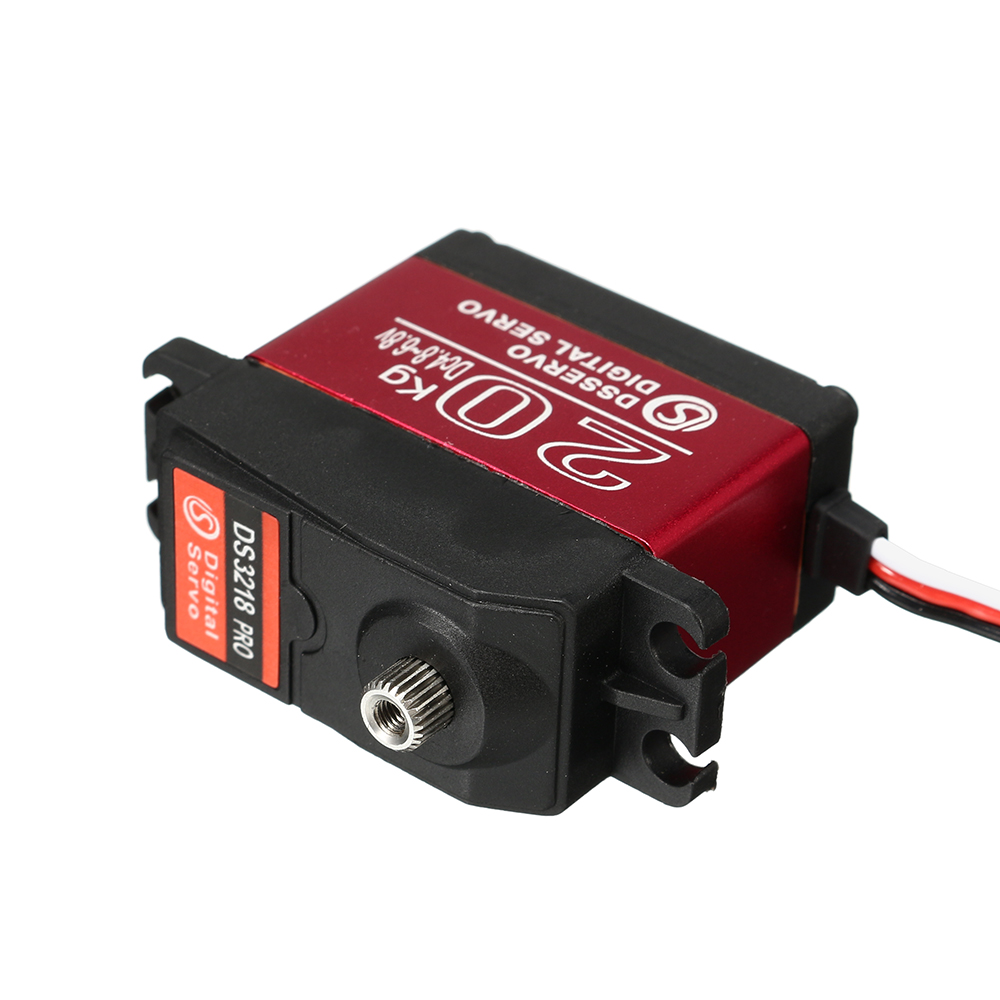

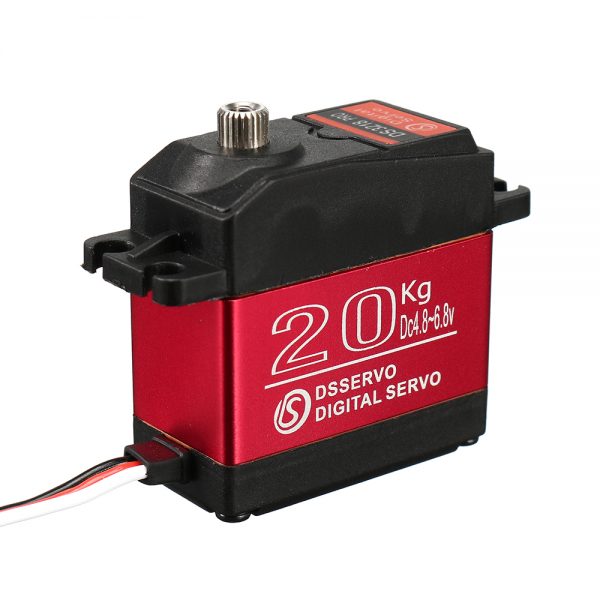

Item: DS3218 PRO 20KG Digital Servo
Operating Voltage: 4.8 ~ 6.8 DC Volts
Torque: 21kg.cm(5V), 23.5kg.cm(6.8V)
Speed: 0.12sec/60°(5V), 0.09sec/60°(6.8V)
Dead Brand: 3μs
Motor Type: DC Motor
Gear Type: 25T Copper & Aluminum
Working Frequence: 50-333Hz
Rotation: 180°(PWM 500-2500μs) / 270°(PWM 500-2500μs)
Weight: about 60g (2.12 oz)
Size: 40 x 20 x 40.5 mm ( 1.58 x 0.79 x 1.60 in)
Features:
– High performance digital standard servo
– High-precision metal gears with hard anodizing
– CNC aluminium middle Shell
– Dual ball bearings
Package Included:
1 x DSSERVO DS3218 PRO Digital Servo

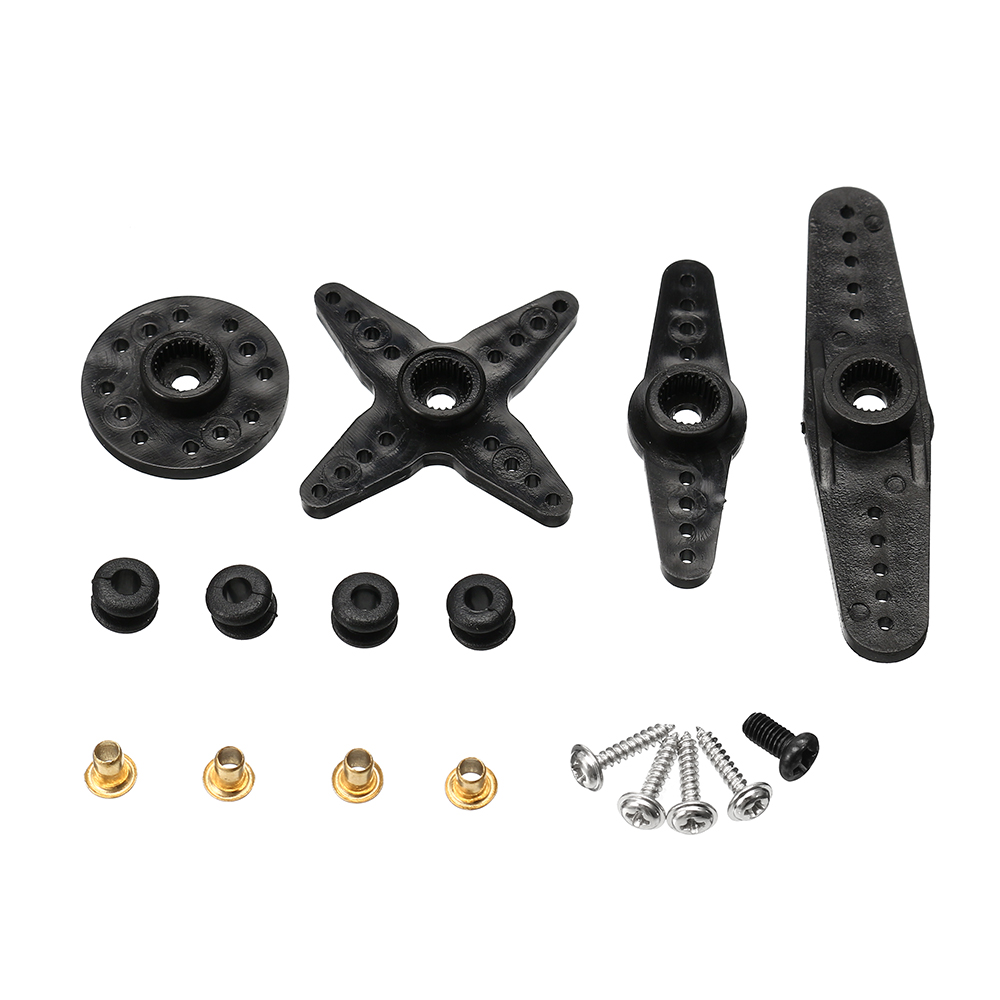

1 x 25T Servo Arm
