Description
DS37 servo with speed, explosive strength, small size, light weight, perfectly compatible with DS gyroscope mode which is suitable for all types of small electric straight, miniature 3D fixed-wing aircraft, hand thrown glider, microlight, the F3P, KT board, EPP etc.

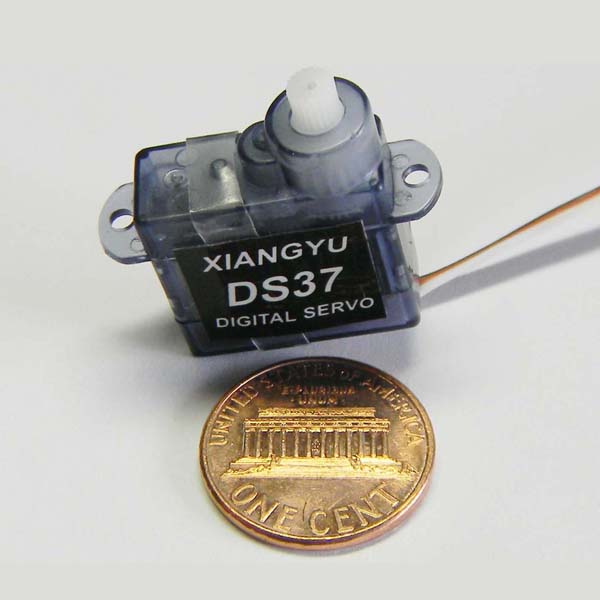

DS37 Digital Servo For Walkera V120D02s Nine Eagle 318A
Description:
Item Name:Walkera V120d02s Nine Eagle 318A Digital Servo DS37Item No:DS37
Control System: PWM Pulse Width Control
Processor: Digital IC
Voltage: 3.3V to 6.0V
Driver Type: MOSFET
Pulse Width Scope: 900-2100μ S
Neutral pulse: 1500μ S
Speed: (No-load ): 0.09sec/ 60° @ 4.8V
0.07sec/ 60° @ 6.0V
Torque: (Stall Full load): 0.4kg. Cm @ 4.8V
0.5 kg. Cm @ 6.0V
Idle Current: < 0.05 A/ 4.8V < 0.05 A/ 6.0V
Running Current: < 0.10 A/ 4.8V < 0.10 A/ 6.0V
Stall Current: < 0.5 A/ 4.8V < 0.5 A/ 6.0V
Motor Type: Coreless Motor
Bearings: POM Bush
Gear Material: POM Gear
Servo case: ABS
Plug: JR plug
Connect wire length: 165mm
Weight: 3.7g
Dimensions (L x W x H): 20.0 x 17.6 x 8.0mm

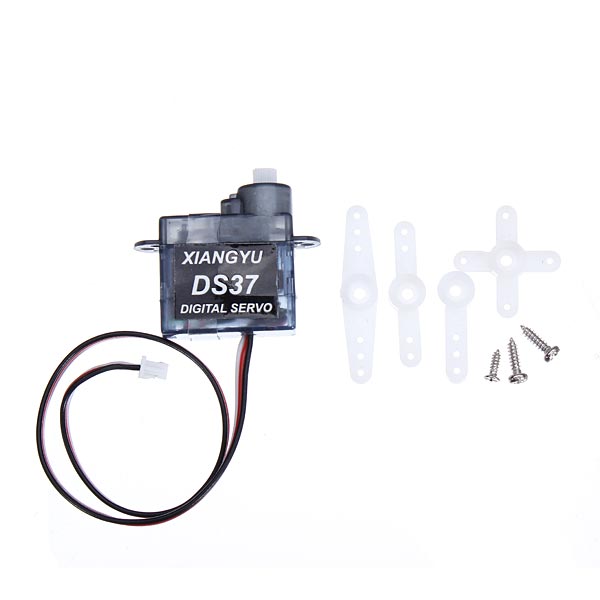

Package Included:
1 x DS37 Servo
