Description

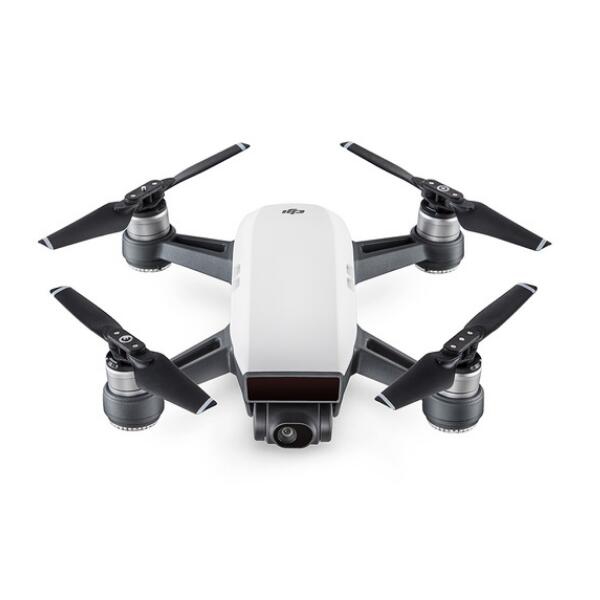

DJI Spark Drone 2KM FPV with 12MP 2-Axis Mechanical Gimbal Camera QuickShot Gesture Mode Quadcopter
SPARK'S INTRO VIDEOS
DJI – Spark – Possibilities
DJI – Spark – Capture Every Moment
Specifications: Spark Quick Start Guide v1.0
Aircraft |
Max Ascent Speed | 9.8 ft/s (3 m/s) in Sport Mode without wind |
| Max Descent Speed | 9.8 ft/s (3 m/s) in Auto Landing Mode | |
| Max Speed | 31 mph (50 kph) in Sport Mode without wind | |
| Max Service Ceiling Above Sea Level | 13,123 feet (4,000 m) | |
| Max Flight Time | 16 minutes (no wind at a consistent 12.4 mph (20 kph)) | |
| Max Hovering Time | 15 minutes (no wind) | |
| Operating Temperature Range | 32° to 104° F (0° to 40° C) | |
| Satellite Positioning Systems | GPS/GLONASS | |
| Hover Accuracy Range | Vertical: +/- 0.1 m (when Vision Positioning is active) or +/-0.5 m Horizontal: +/- 0.3 m (when Vision Positioning is active) or +/-1.5 m |
|
| Transmitter Power (EIRP) | 2.4 GHz FCC: 25 dBm; CE: 18 dBm; SRRC: 18 dBm 5.8 GHz FCC: 27 dBm; CE: 14 dBm; SRRC: 27 dBm |
|
| Operating Frequency | 2.400 – 2.483 GHz; 5.725 – 5.825 GHz | |
| Takeoff Weight | 300 g | |
| Dimensions | 143×143×55 mm | |
| Diagonal Distance (propellers excluded) | 170 mm | |
Gimbal |
Controllable Range | Pitch: -85° to 0° |
| Stabilization | 2-axis mechanical (pitch, roll) | |
Vision System |
Velocity Range | ≤22.4 mph (36 kph) at 6.6 ft (2 m) above ground |
| Altitude Range | 0-26 ft (0 – 8 m) | |
| Operating Range | 0-98 ft (0 – 30 m) | |
| Operating Environment | Surface with clear patterns, enables diffuse reflection with >20% reflection rate Adequate lighting (lux>15) |
|
3D Sensing system |
Obstacle Sensing Range | 1-16 ft (0.2 – 5 m) |
| Operating Environment | Surface should be larger than 20×20 cm and enable diffuse reflection, with reflection rate >20% (eg. wall, tree, people) | |
Camera |
Sensor | 1/2.3" CMOS Effective pixels: 12 MP |
| Lens | FOV 81.9° 25 mm (35 mm format equivalent) f/2.6 (shooting range: 2 m to ∞) |
|
| ISO Range | Video: 100-3200 Photo: 100-1600 |
|
| Electronic Shutter Speed | 2-1/8000 s | |
| Image Size | 3968×2976 | |
| Still Photography Modes | Single Shot Burst Shooting: 3 frames Auto Exposure Bracketing (AEB): 3 bracketed frames at 0.7 EV bias Interval: 2/3/5/7/10/15/20/30/60 s |
|
| Video Resolution | FHD: 1920×1080 30p | |
| Max Video Bitrate | 24 Mbps | |
| Supported File Systems | FAT32 (≤ 32 GB) | |
| Photo Format | JPEG | |
| Video Format | MP4 (MPEG-4 AVC/H.264) | |
Wi-Fi |
Operating Frequency | 2.4 GHz/5.8 GHz |
| Max Transmission Distance | 100 m(Distance), 50 m(Height) (Unobstructed, free of interference) | |
Remote Controller |
Operating Frequency | 2.412-2.462 GHz; 5.745-5.825 GHz |
| Max Transmission Distance | 2.412 – 2.462 GHz (unobstructed, free of interference) FCC: 1.2 mi (2 km); CE: 0.3 mi (500 m); SRRC: 0.3 mi (500 m) 5.745 – 5.825 GHz (unobstructed, free of interference) FCC: 1.2 mi (2 km); CE: 0.18 mi (300 m); SRRC: 0.7 mi (1.2 km) |
|
| Operating Temperature Range | 32° to 104° F (0° to 40° C) | |
| Battery | 2970 mAh | |
| Transmitter Power (EIRP) | 2.4 GHz FCC: ≤26 dBm; CE: ≤18 dBm; SRCC: ≤18 dBm 5.8 GHz FCC: ≤28 dBm; CE: ≤14 dBm; SRCC: ≤26 dBm |
|
| Operating Current/Voltage | 950 mAh @3.7 V | |
| Supported Mobile Device Size | Thickness range: 6.5-8.5 mm Max length: 160 mm |
|
Intelligent Flight Battery |
Capacity | 1480 mAh |
| Voltage | 11.4 V | |
| Max Charging Voltage | 13.05 V | |
| Battery Type | LiPo 3S | |
| Energy | 16.87 Wh | |
| Net Weight | Approx. 0.2 lbs (95 g) | |
| Charging Temperature Range | 41° to 104° F (5° to 40° C) | |
Charger |
Input | 100-240 V; 50/60 Hz; 0.5 A |
| Output | 5 V/3 A; 9 V/2 A; 12 V/1.5 A | |
Recommended Micro SD Cards |
Model | Kings ton 16/32 GB UHS-1 Micro SDHC Samsung 16/32 GB UHS-I Micro SDHC Kings ton 64 GB UHS-1 Micro SDXC Samsung 64 GB UHS-I Micro SDXC |
Features:
– with FaceAware,Spark lifts off from your hand by recognizing you. It take off and hovers in place within 15 seconds of powering on.
– Quickshot help you shoot amazing footage with cinematic composition.
– Gesture controlled, allows you to take selfies with simple hand motions.
– Spark's 2-axis mechanical gimbal and UltraSmooth technology dramatically reduce shake and rolling shutter effect, keeping shots atable and detailed.
– Spark's camera features a 1/2.3 inch CMOS sensor, allowing you to shoot stabilized video at 1080p and stills at 12MP.
– Innovative HD Wifi technology allows for 720P real-time video transmission from up to 2km away.
– Uncompromised flight time up to 16 minutes with a fully-charged battery, capturing more footage.
– Available in five colors: Alpine White, Sky Blue, Meadow Green, Lava Red, and Sunrise Yellow.
– Two version for select: SPARK Fly More Combo(RTF), SPARK Only(BNF).
Package Included:
BNF:
1 x Aircraft
6 x Propeller
1 x Intelligent Flight Battery
1 x Charger
1 x Micro USB Cable
1 x Storage Box
RTF:
1 x Aircraft
1 x Remote Controller
6 x propeller
4 x Propeller Guards
2 x Intelligent Flight Battery
1 x Charger
1 x Power Cable
1 x Battery Charging Hub
1 x Micro USB Cable
1 x Storage Box
1 x Shoulder Bag
,
,
,
,
,
,
,
,
,
,
,
