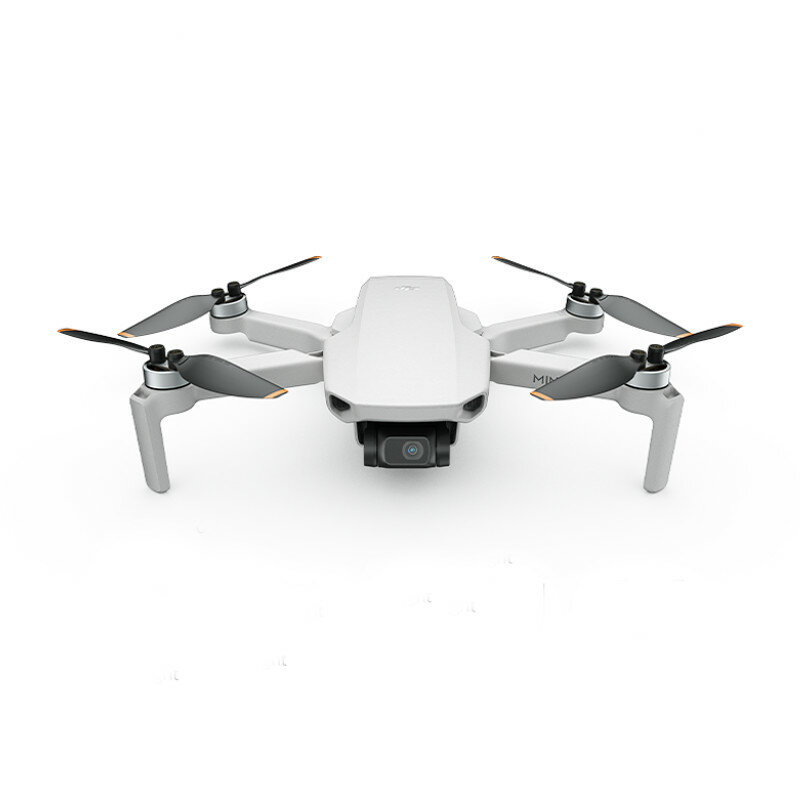

DJI Mini SE 4KM FPV with 2.7K Camera 3-Axis Gimbal 30mins Flight Time 249g Vision Sensor GPS Hover RC Drone Quadcopter RTF

$529.99

CHECK PRICE

Description

DJI Mini SE 4KM FPV with 2.7K Camera 3-Axis Gimbal 30mins Flight Time 249g Vision Sensor GPS Hover RC Drone Quadcopter RTF


Specifications:

Aircraft

Takeoff Weight < 249 g
Dimensions Folded: 138×81×58 mm (L×W×H)
Unfolded: 159×203×56 mm (L×W×H)
Unfolded (with propellers): 245×289×56 mm (L×W×H)
Diagonal Distance (propellers excluded) 213 mm
Max Ascension Speed 4 m/s (S Mode)
2 m/s (P Mode)
1.5 m/s (C Mode)
Max Descent Speed 3 m/s (S Mode)
1.8 m/s (P Mode)
1 m/s (C Mode)
Max Speed

(near sea level, no wind)

13 m/s (S Mode)
8 m/s (P Mode)
4 m/s (C Mode)
Maximum Takeoff Altitude 3000 m
Max Flying Time 30 minutes (measured while flying at 17 kph in windless conditions)
Max Wind Speed Resistance 8.5 m/s to 10.5m/s (Scale 5)
Max Tilt Angle 30° (S Mode)
20° (P Mode)
20° (C Mode)
Max Angular Vellocity 150°/s (S Mode)
130°/s (P Mode)
30°/s (C Mode)
Operating Temperature Range 0° to 40°C (32° to 104°F)
Operating Frequency Model MT2SS5: 5.725-5.850 GHz
Model MT2SD25: 2.400-2.4835 GHz, 5.725-5.850 GHz
Transmitter Power (EIRP) Model MT2SS5
5.8 GHz: <30 dBm (FCC); <28 dBm (SRRC)
Model MT2SD25
2.4 GHz: <19 dBm (MIC/CE)
5.8 GHz: <14 dBm (CE)
GNSS GPS+GLONASS
Hover Accuracy Ran-ge Vertical: ±0.1 m (with Vision Positioning), ±0.5 m (with GPS Positioning)
Horizontal: ±0.3 m (with Vision Positioning), ±1.5 m (with GPS Positioning)

Gimbal

Mechanical Range Tilt: -110° to 35°
Roll: -35° to 35°
Pan: -20° to 20°
Controllable Range Tilt: -90° to 0° (default setting) -90° to +20° (extended)
Stabilization 3axis (tilt, roll, pan)
Max Control Speed (tilt) 120°/s
Angular Vibration Range ±0.01°

Sensing System

Downward Operating Ran-ge: 0.5-10 m
Operating Environment Non-reflective, discernable surfaces
Diffuse reflectivity (>20%)
Adequate lighting (lux>15)

Camera

Sensor 1/2.3” CMOS
Effective Pixels: 12 MP
Lens FOV: 83°
35 mm Format Equivalent: 24 mm
Aperture: f/2.8
Shooting Range: 1 m to ∞
ISO Range

Video:
100-3200 (Auto)

100-3200 (Manual)
Photo:
100-3200 (Auto)
100-3200 (Manual)

Shutter Speed Electronic Shutter: 4-1/8000s
Still Image Size 4:3: 4000×3000
16:9: 4000×2250
Still Photography Modes Single shot
Interval: 2/3/5/7/10/15/20/30/60 s
Video Resolution 2.7 K: 2720×1530 24/25/30 p
FHD: 1920×1080 24/25/30/48/50/60 p
Max Video Bitrate 40 Mbps
Supported File Systems FAT32 (≤32 GB)
exFAT (>32 GB)
Photo Format JPEG
Video Format MP4 (H.264/MPEG-4 AVC)

Remote Controller &
Video Transmission

Operating Frequency Model MR1SS5: 5.725-5.850 GHz
Model MR1SD25: 2.400-2.4835 GHz, 5.725-5.850 GHz
Max Transmission Distance
(unobstructed, free of interference)
Model MR1SS5
5.8 GHz: 4000 m (FCC); 2500 m (SRRC)
Model MR1SD25
2.4 GHz: 2000 m (MIC/CE)
5.8 GHz: 500m  (CE)
Operating Temperature Range 0° to 40°C (32° to 104°F)
Transmitter Power (EIRP) Model MR1SS5
5.8 GHz: <30 dBm (FCC); <28 dBm (SRRC)
Model MR1SD25
2.4 GHz: <19 dBm (MIC/CE)
5.8 GHz: <14 dBm  (CE)
Battery Capacity 2600 mAh
Operating Current/Voltage 1200 mA 3.6 V (Android)
450 mA 3.6 V (iOS)
Supported Mobile Device Size Max length: 160 mm
Max thickness: 6.5-8.5 mm
Supported USB Port Types Lighting, Micro USB (Type-B), USB Type-C
Video Transmission System Enhanced Wi-Fi
Live View Quality 720p/30fps
Max. Bitrate 4 Mbps
Latency
(depending on environmental conditions and mobile device)
170-240 ms

Intelligent Flight Battery

Capacity 2250 mAh
Voltage 7.7 V
Max Charging Voltage 8.8 V
Battery Type LiPo 2S
Energy 17.32 Wh
Net Weight 82.5 g
Max Charging Power 29 W
Charging Temperature Ran-ge 5° to 40°C (41° to 104°F)

Charger

Input 100-240 V, 50/60 Hz, 0.5A
Output 12V 1.5 A / 9V 2A / 5V 3A
Rated Power 18 W

APP


Name DJI Fly
Required Operating System iOS v10.0 or later Android v6.0 or later

Supported SD Cards

Supported SD Cards UHS-I Speed Class 3 or above is required. A list of reccomended microSD cards can be found below

Features:

– < 249g Ultralight
– 30-mins Max Flying Time
– 4KM HD Video Transmission
– Vision Sensor + GPS Precise Hover
– 3-Axis Gimbal 2.7K Camera
– Simplified Recording & Editing

Package Included:

Mini SE:
1 x Aircraft
1 x Remote Controller
1 x Intelligent Flight Battery
1 x Pair of Spare Propellers
1 x USB Cable
1 x Gimbal Protector
3 x RC Cable (USB/USB-C/Lighting/)
1 x Pair of Spare Control Sticks
6 x Spare Screw
1 x Screwdriver

Mini SE Fly More Combo:
1 x Aircraft
1 x Remote Controller
3 x Intelligent Flight Battery
3 x Pair of Spare Propellers
2 x USB Cable
1 x Gimbal Protector
3 x RC Cable (USB/USB-C/Lighting/)
1 x Pair of Spare Control Sticks
18 x Spare Screw
1 x Screwdriver
1 x Two-Way Charging Hub
1 x Carrying Bag

Additional information

Weight 1.2 kg
