Description

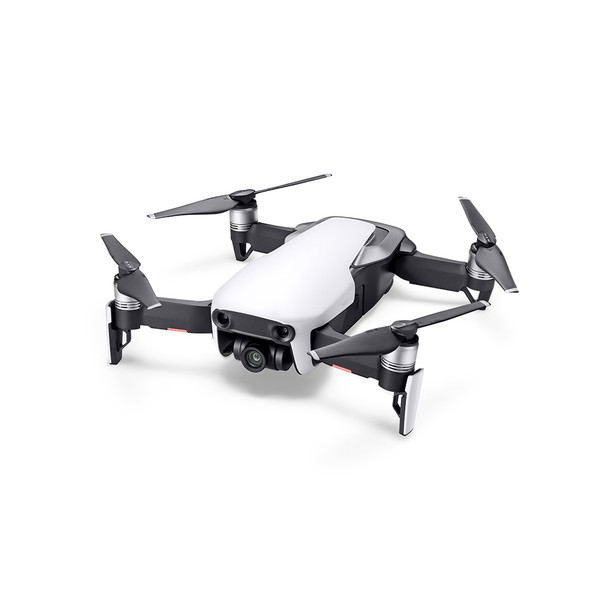

DJI Mavic Air 4KM FPV w/ 3-Axis Gimbal 4K Camera 32MP Sphere Panoramas RC Foldable Drone Quadcopter
Specifications:
Aircraft |
Takeoff Weight | 430 g |
| Dimensions | Folded: 168×83×49 mm (L×W×H) Unfolded: 168×184×64 mm (L×W×H) |
|
| Diagonal Distance | 213 mm | |
| Max Ascent Speed | 3 m/s (S – mode[1]) 2 m/s (P – mode) 2 m/s (Wi-Fi mode) |
|
| Max Descent Speed | 2 m/s (S – mode[1]) 1.5 m/s (P – mode) 1 m/s (Wi-Fi mode) |
|
| Max Speed (near sea level, no wind) | 68.4 kph (S – mode[1]) 28.8 kph (P – mode) 28.8 kph (Wi-Fi mode) |
|
| Max Service Ceiling Above Sea Level | 5000 m | |
| Max Flight Time (no wind) | 21 minutes (at a consistent 25 kph) | |
| Max Hovering Time (no wind) | 20 minutes | |
| Max Flight Distance (no wind) | 10 km (at a consistent 25 kph) | |
| Max Wind Speed Resistance | 29 – 38 kph | |
| Max Tilt Angle | 35° (S – mode[1]) 25° (P – mode) |
|
| Max Angular Velocity | 250°/s (S – mode[1]) 250°/s (P – mode) |
|
| Operating Temperature Range | 0°C – 40°C | |
| Operating Frequency | 2.400 – 2.4835 GHz 5.725 – 5.850 GHz |
|
| Transmission Power (EIRP) | 2.400 – 2.4835GHz: FCC: ≤28 dBm CE: ≤19 dBm SRRC: ≤19 dBm MIC: ≤19 dBm 5.725 – 5.850 GHz: FCC: ≤31 dBm CE: ≤14 dBm SRRC: ≤27 dBm |
|
| GNSS | GPS + GLONASS | |
| Hovering Accuracy Range | Vertical: ±0.1 m (with Vision Positioning) ±0.5 m (with GPS Positioning) Horizontal: ±0.1 m (with Vision Positioning) ±1.5 m (with GPS Positioning) |
|
| Internal Storage | 8 GB | |
Gimbal |
Mechanical Range | Tilt: -100° to 22° Roll: -30° to 30° Pan: -12° to 12° |
| Controllable Range | Tilt: -90° to 0° (default setting) -90° to +17° (extended) |
|
| Stabilization | 3-axis (tilt, roll, pan) | |
| Max Control Speed (tilt) | 120°/s | |
| Angular Vibration Range | ±0.005° | |
Camera |
Sensor | 1/2.3” CMOS Effective Pixels: 12 MP |
| Lens | FOV: 85° 35 mm Format Equivalent: 24 mm Aperture: f/2.8 Shooting Range: 0.5 m to ∞ |
|
| ISO Range | Video: 100 – 1600 (auto) 100 – 1600 (manual) Photo: 100 – 1600 (auto) 100 – 3200 (manual) |
|
| Shutter Speed | Electronic Shutter: 8 – 1/8000s | |
| Still Image Size | 4:3: 4056×3040 16:9: 4056×2280 |
|
| Still Photography Modes | Single shot HDR Burst shooting: 3/5/7 frames Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7EV Bias Interval: 2/3/5/7/10/15/20/30/60 s |
|
| Video Resolution | 4K Ultra HD: 3840×2160 24/25/30p 2.7K: 2720×1530 24/25/30/48/50/60p FHD: 1920×1080 24/25/30/48/50/60/120p HD: 1280×720 24/25/30/48/50/60/120p |
|
| Max Video Bitrate | 100Mbps | |
| Supported File System | FAT32 | |
| Photo Format | JPEG/DNG (RAW) | |
| Video Format | MP4/MOV (H.264/MPEG-4 AVC) |
|
Sensing System |
Forward | Precision Measurement Range: 0.5 – 12 m Detectable Range: 0.5 – 24 m Effective Sensing Speed: ≤ 8 m/s Field of View (FOV): Horizontal 50°, Vertical ±19° |
| Backward | Precision Measurement Range: 0.5 – 10 m Detectable Range: 0.5 – 20 m Effective Sensing Speed: ≤ 8 m/s Field of View (FOV): Horizontal 50°, Vertical ±19° |
|
| Downward | Altitude Range: 0.1 – 8 m Operating Range: 0.5 – 30 m |
|
| Operating Environment | Forward: Surface with clear pattern and adequate lighting (lux > 15) Backward: Surface with clear pattern and adequate lighting (lux > 15) Downward: Detects clearly patterned surfaces with adequate lighting (lux>15) and diffuse reflectivity (>20%) |
|

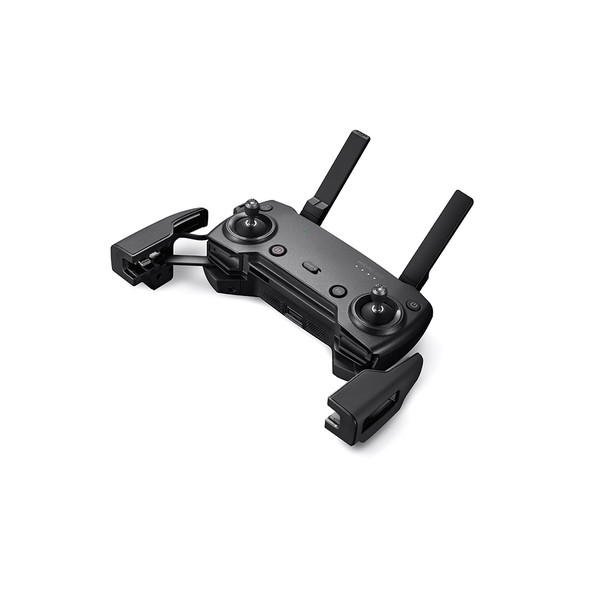

Remote Controller |
Operating Frequency | 2.400 – 2.4835 GHz 5.725 – 5.850 GHz |
| Max Transmission Distance (unobstructed, free of interference) |
2.400 – 2.4835 GHz: FCC: 4000 m CE: 2000 m SRRC: 2000 m MIC: 2000 m 5.725 – 5.850 GHz: FCC: 4000 m CE: 500 m SRRC: 2500 m |
|
| Operating Temperature Range | 0℃ – 40℃ | |
| Transmission Power (EIRP) | 2.400 – 2.4835 GHz: FCC: CE: ≤18 dBm SRRC: ≤18 dBm MIC:≤18 dBm 5.725 – 5.850 GHz: FCC: ≤30 dBm CE: ≤14 dBm SRRC: ≤26 dBm |
|
| Battery | 2970 mAh | |
| Operating Current/Voltage | 1400 mA ⎓ 3.7 V (Android) 750 mA ⎓ 3.7 V (iOS) |
|
| Supported Mobile Device Size | Max length: 160 mm Supported Thickness: 6.5-8.5 mm |
|
| Supported USB Port Types | Lightning, Micro USB (Type-B), USB-C | |
Mobile Device Control |
Operating Frequency | 2.400 – 2.4835 GHz 5.725 – 5.850 GHz |
| Max Transmission Distance (unobstructed, free of interference) | Distance: 80 m Height: 50 m |
|
Intelligent Flight Battery |
Capacity | 2375 mAh |
| Voltage | 11.55 V | |
| Max Charging Voltage | 13.2 V | |
| Battery Type | LiCoO₂ 3S | |
| Energy | 27.43 Wh | |
| Net Weight | 140 g | |
| Charging Temperature Range | 5℃ – 40℃ | |
| Max Charging Power | 60 W | |
Charger |
Input | 100 – 240 V, 50/60 Hz, 1.4 A |
| Output | Main: 13.2 V ⎓ 3.79 A USB: 5 V ⎓ 2 A |
|
| Voltage | 13.2 V | |
| Rated Power | 50 W | |
APP |
Video Transmission System | Enhanced Wi-Fi |
| Name | DJI GO 4 | |
| Live View Quality | Remote Controller: 720p@30fps Smart Device: 720p@30fps DJI Goggles: 720p@30fps |
|
| Latency (depending on enviornmental conditions and mobile device) | 170 – 240 ms | |
| Required Operating System | iOS v9.0 or later Android v4.4 or later |
|
Supported SD Cards |
Supported SD Cards | microSD Class 10 or UHS-1 rating required |
| Recommended microSD Cards | 16G 32G 64G 128G |
|
Footnotes |
Footnotes | [1] Remote controller reqired. |
Features:

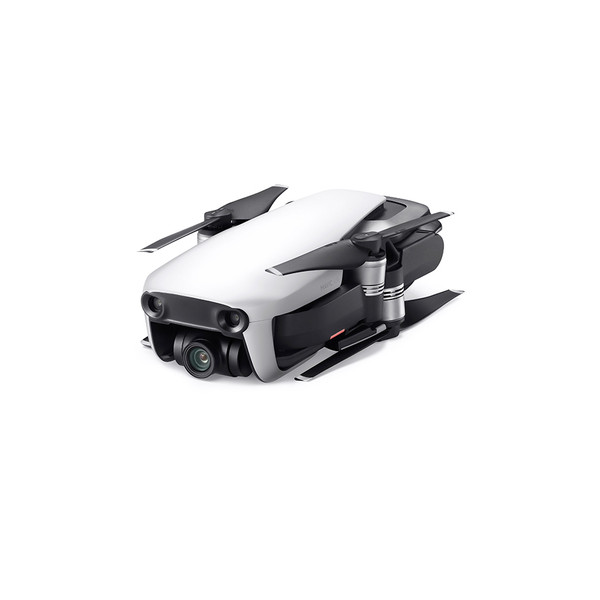

– 3D foldable design, as tall and wide as a smartphone when folded.
– The most portable DJI Drone to house a 3-axis mechanical gimbal and Integrates a 1/2.3" 12MP CMOS sensor.
– 32MP Sphere Panoramas, stitches 25 photos together. and can view them with DJI Goggles.
– Shoots video at an incredible 4K 30 fps, recording at 100 Mbps to capture every second with UHD quality.
– Support for recording 1080P 120 fps slow-motion video.
– New HDR algorithms help you obtain the right exposure seettings intelligently, according to lighting conditions.
– ActiveTrack, SmartCapture, QuickShots function.
– Intelligent flight batteries are high-density lithum batteries, flight time up to 21 minutes.
– A new Wifi video transmission system support dual frequency bands of 2.4/5.8GHz and a 720P live view from up to 4KM away.

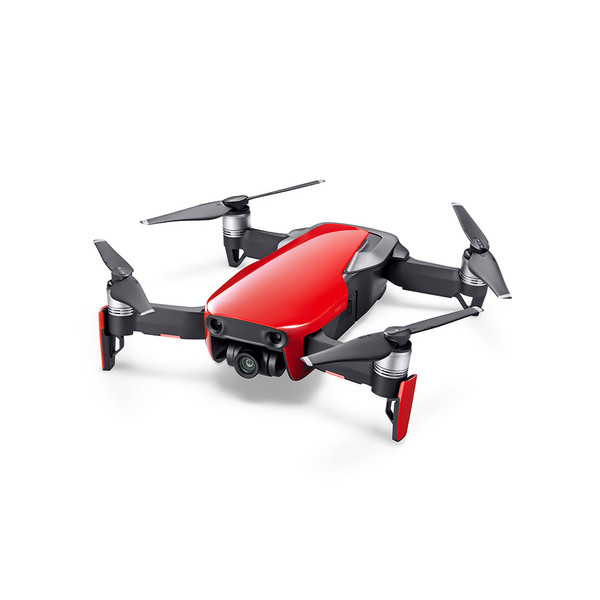

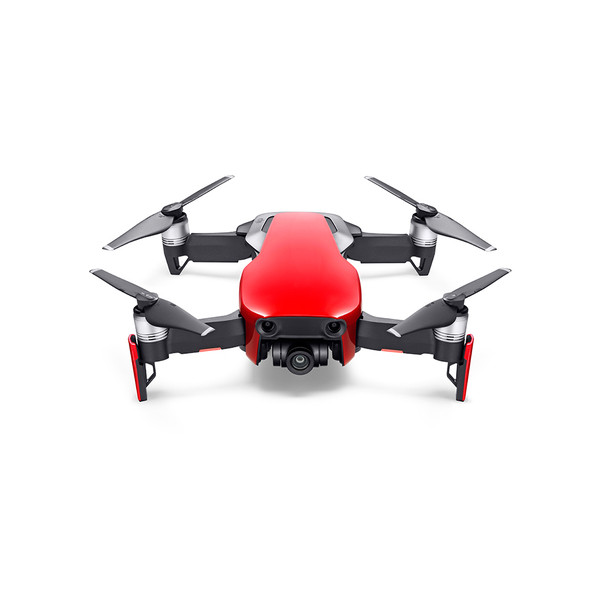

– Available in Three colors: Arctic White, Onyx Black, Flame Red
– Three version for select: Mavic Air, Mavic Air Fly More Combo, Fly More Combo & DJI Goggles
Package Included:
Mavic Air:
1 x Aircraft
1 x Remote Controller
1 x Intelligent Flight Battery
1 x Charger
1 x Power Cable
8 x Propeller
4 x Propeller Guards
3 x RC Cable (Lightning, Standard Micro USB, USB Type-C)
1 x Gimbal Protector
1 x Communication Cable (USB3.0 Type-C)
1 x USB aDAPTER
3 x RC Cable Slider (1 large, 2 small)
1 x Carrying Case
2 x Spare Control Sticks
Fly More Combo:
1 x Aircraft
1 x Remote Controller
3 x Intelligent Flight Battery
1 x Charger
1 x Power Cable
12 x Propeller
4 x Propeller Guards
3 x RC Cable (Lightning, Standard Micro USB, USB Type-C)
1 x Gimbal Protector
1 x Communication Cable (USB3.0 Type-C)
1 x USB aDAPTER
3 x RC Cable Slider (1 large, 2 small)
1 x Carrying Case
2 x Spare Control Sticks
1 x Battery Charging Hub
1 x Battery Power Bank Adaptor
1 x Travel Bag
Fly More Combo & DJI Goggles:
1 x Aircraft
1 x Remote Controller
3 x Intelligent Flight Battery
1 x Charger
1 x Power Cable
12 x Propeller
4 x Propeller Guards
3 x RC Cable (Lightning, Standard Micro USB, USB Type-C)
1 x Gimbal Protector
1 x Communication Cable (USB3.0 Type-C)
1 x USB aDAPTER
3 x RC Cable Slider (1 large, 2 small)
1 x Carrying Case
2 x Spare Control Sticks
1 x Battery Charging Hub
1 x Battery Power Bank Adaptor
1 x Travel Bag
1 x DJI Goggles
