Sound Unit for RC Tractors & Programming Cable for RC Tractor Sound Unit
Description:

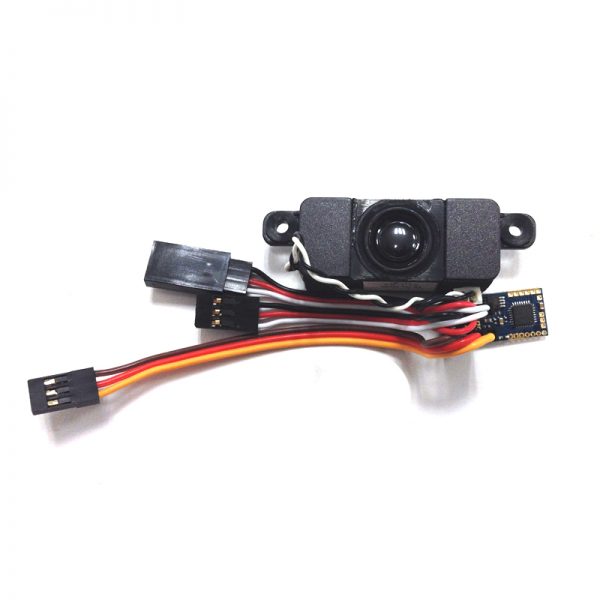

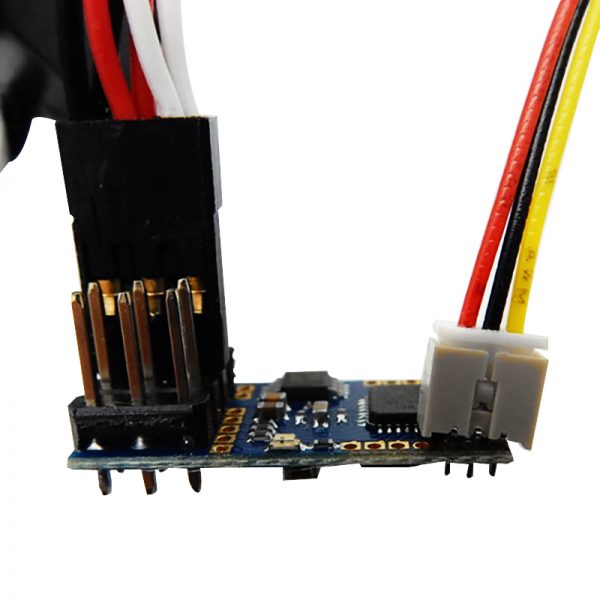

Sound Unit for RC Tractors
This sound unit is developed for electric powered RC tractors. It could be used to 1/32, 1/24 and 1/18 RC tractors, especially suitable for 1:32 Siku Lanz Eil-Bulldog RC Tractor 2.4G conversion.
Technical Data:
Dimension: 11 x 23,5 x 3,2mm (min.11x16x3,2mm)
Voltage: 3V to 5V (supplied by the receiver) Note the maximum supply voltage of 5V!
Current: app. 10mA without sound, app. 250mA at max. volume
Speaker: 8-32 Ohm
Output power: 1W at 8-Ohm at 5V; 0,6W at 8-Ohm at 3V
Proportional inputs: 1ms to 2ms
Sound quality: up to 22 kHz

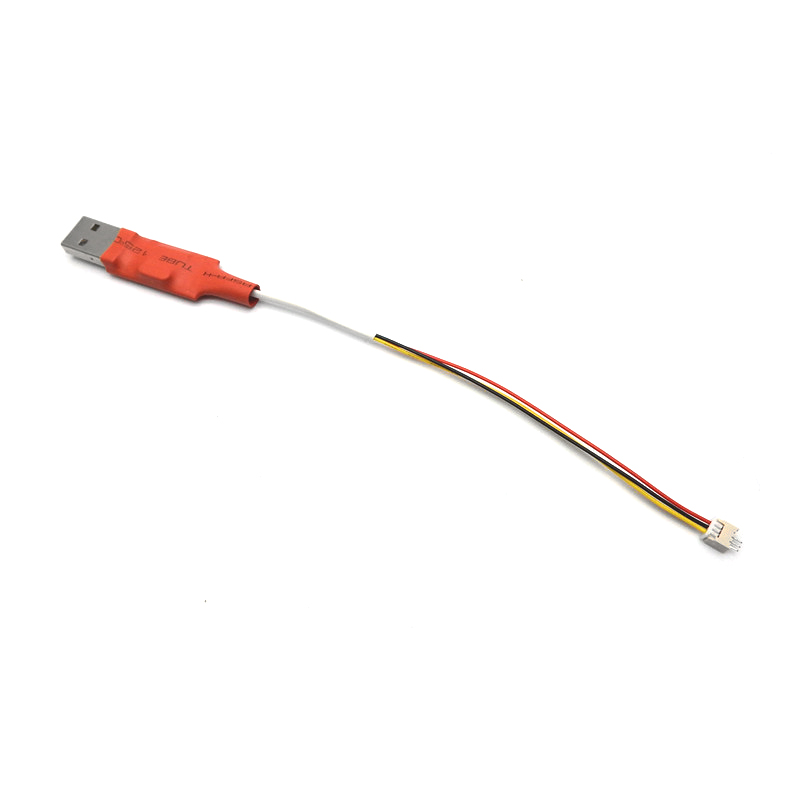

Programming Cable for RC Tractor Sound Unit

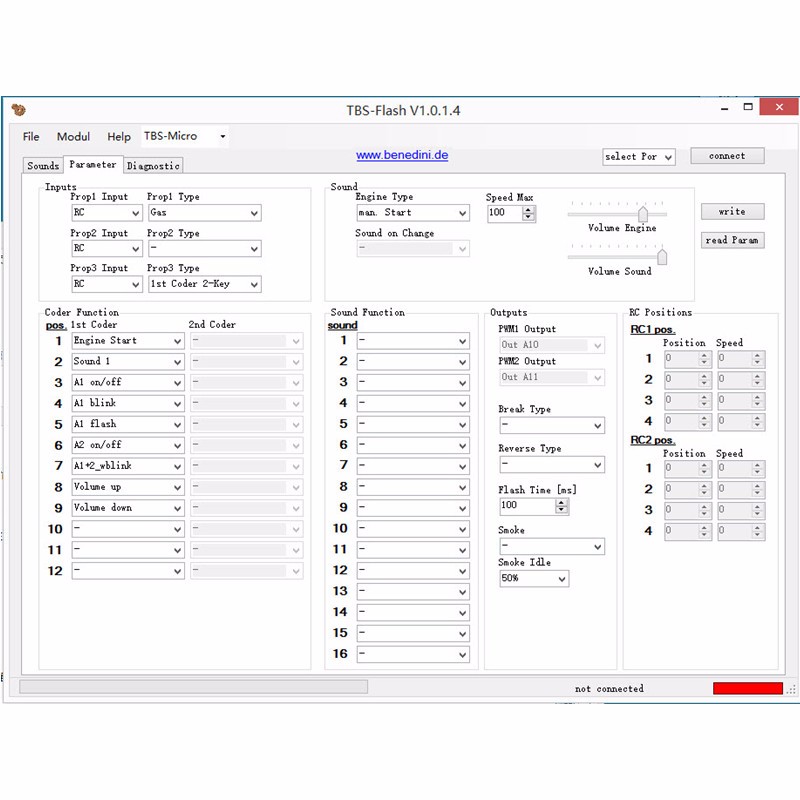

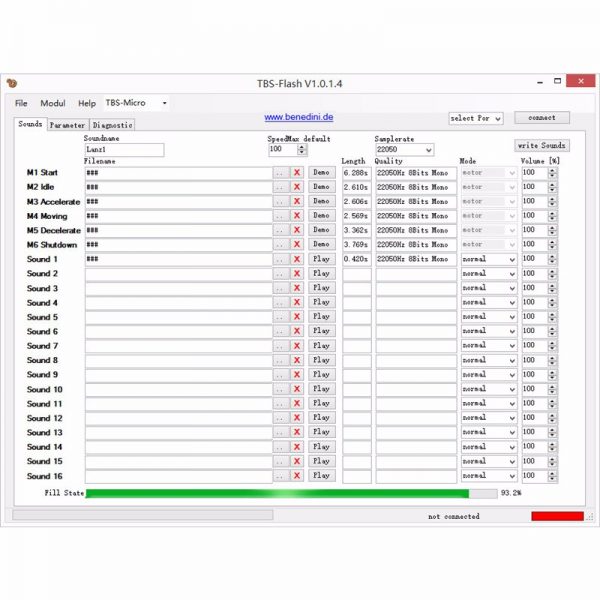

This programming cable is developed specially for RC Tractor Sound Unit. With this programming cable you could switch 4 different tractor sounds provided, and you can reveal so much new function on Sound Unit, not only program new sounds, but you can also use channel 3 to choose from 16 different sound or and light control functions.
For more information, please refer to:
http://www.banggood.com/Sound-Unit-For-132-124-118-RC-Tractors-132-Siku-Lanz-Eil-Bulldog-RC-Tractor-2_4G-Conversion-p-1034926.html
http://www.banggood.com/Programming-Cable-For-RC-Tractor-Sound-Unit-Programming-New-Sounds-Choosing-Different-SoundsLight-p-1034925.html
For TBS Micro Sound Unit manual, Programming Software, Programming Software Manual, USB Driver, Sound library, Please click HERE.
Package Included:
1 X Sound Unit
1 X Programming Cable
