Description
Description:

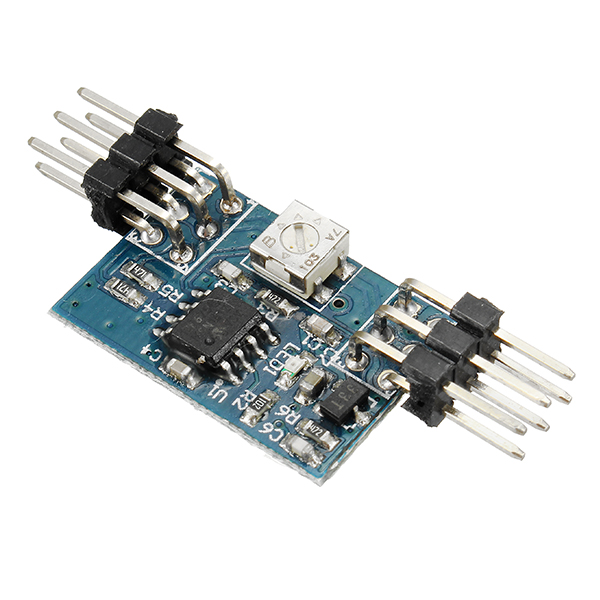

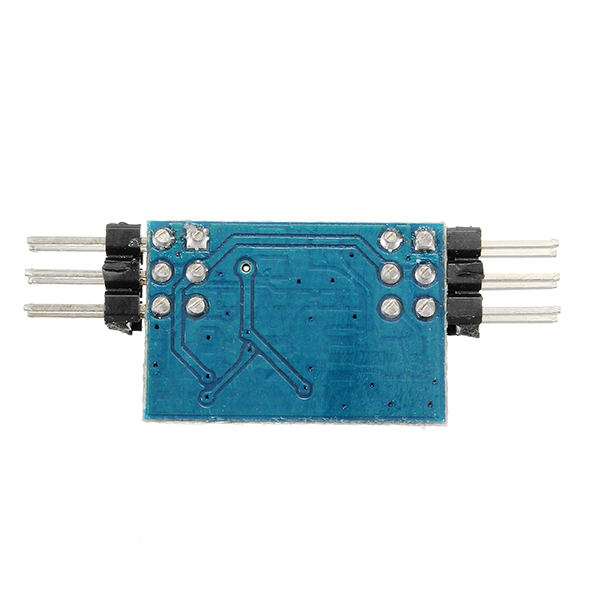

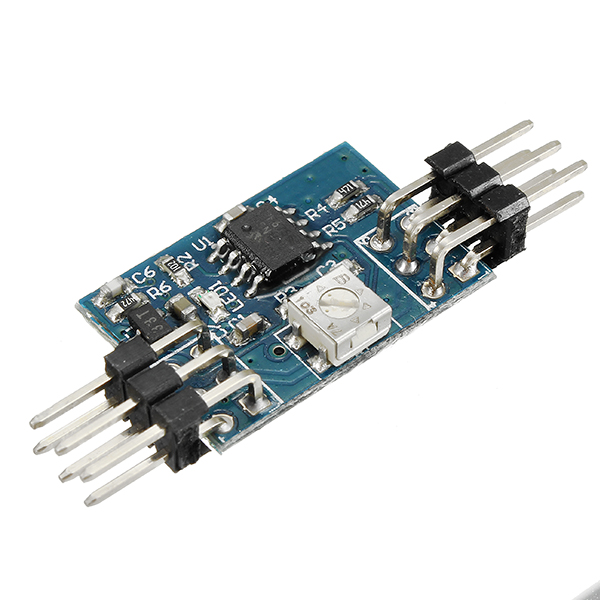

This is a RC signal mixer designed to control 2 standalone bi-directional ESCs (center stick = zero throttle). It mixes Rudder and Throttle inputs to produce two Throttle outputs. Throttle outputs limited to between zero and full forward/reverse throttle. Applying rudder at low throttle will NOT cause either output to cross over to the opposite direction. Mix Ratio could be adjusted from 33% to 100%.
Operation Voltage:
The PCB works from 4.2V to 9.6V. It take the power from ESC BEC and provide it to receiver.
Package Included:
1 x RC signal mixer

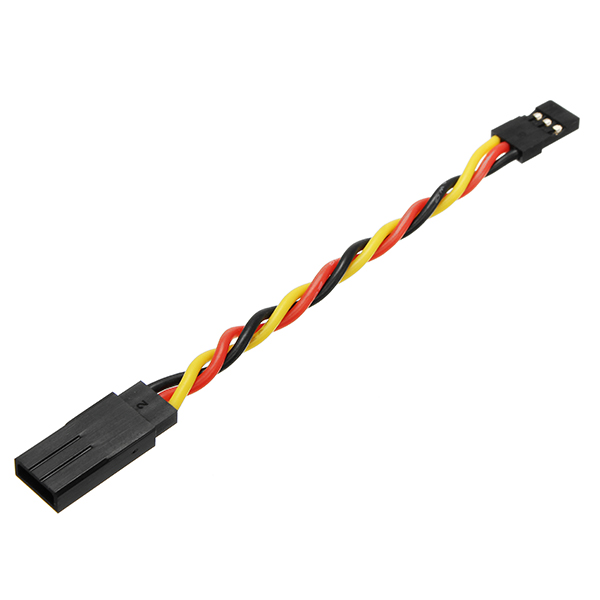

2 x JST extend cable (male to male)
2 x JST extend cable (male to female)
