Description
Description:

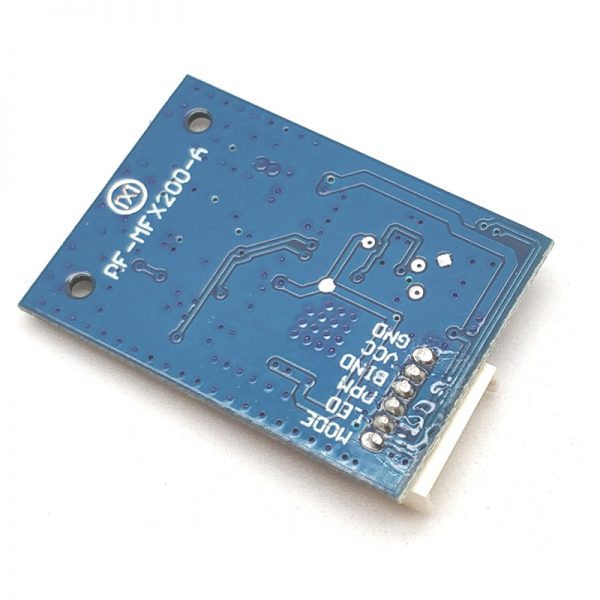

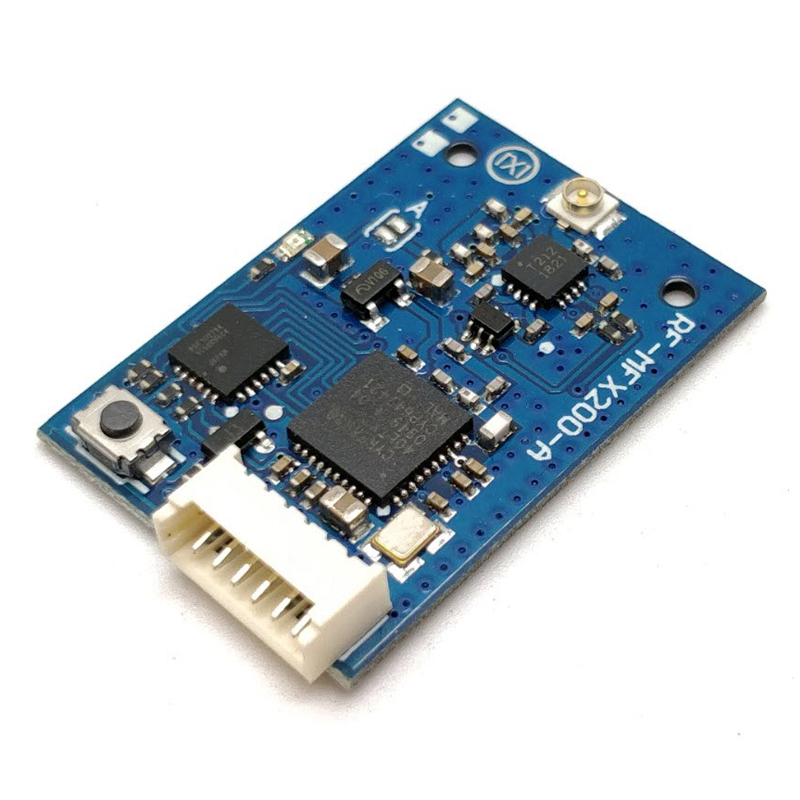

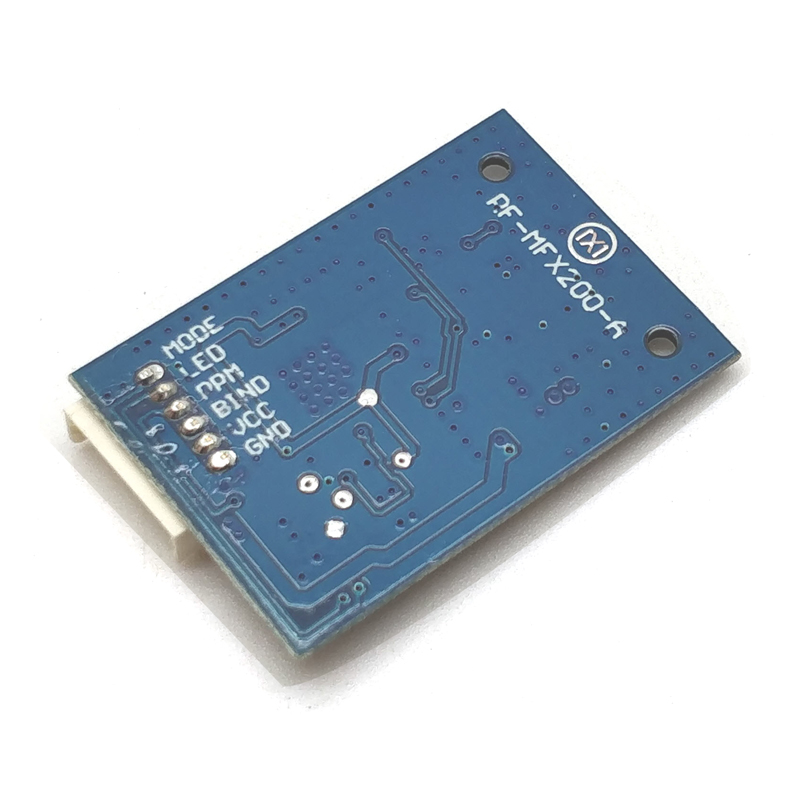

This 2.4G RF TX module support both the well-known Kyosho ASF system and Kyosho's innovative MHS (Mini-Z Hybrid Spread) system. This module is designed to convert any transmitters with PPM output to have the ability to connect Kyosho ASF/MHS micro racing cars. This is also a full range module allows you could control your ‘Mini-z’ cars in 150M range in open space.
Features:
1. Kyosho 2.4GHz ASF/MHS Selectable on board
2. High performance CPU enhance precision control feeling
3. 4 channel support
4. Micro size (30x20x5mm)
5. Ideal for converting any transmitter with PPM output
6. Operating Voltage 3.7V – 9.6V:
7. Weight: 10g

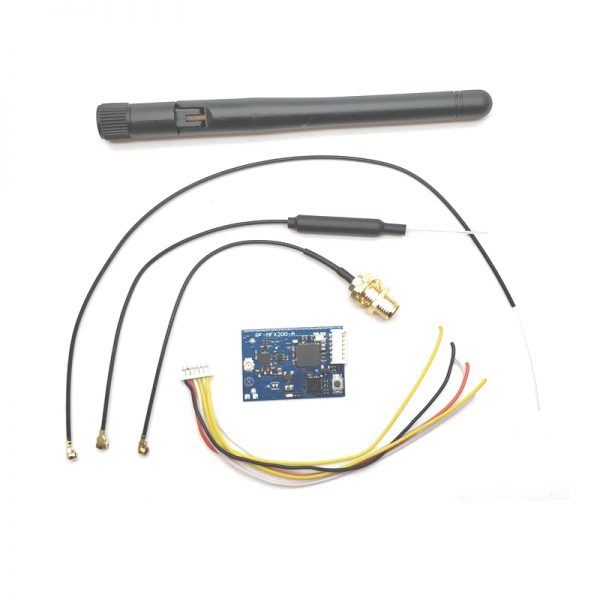

Package Included:
1 x 2.4G ASF/MHS RF TX module
1 x 1.5mm 6P JST plug with cable
1 x 2.4G Antenna
1 x 2.4G 3DBI Brass Tube Antenna
1 x 2.4G 3DBI Module Antenna
Package Included:
1 x 2.4G ASF/MHS RF TX module
BIND:
Press the “BIND” Button and power on the RF module, it will enter BIND mode
Notice:
Make sure antenna is connected before power on, power on without antenna connected may damage the PA unit.
