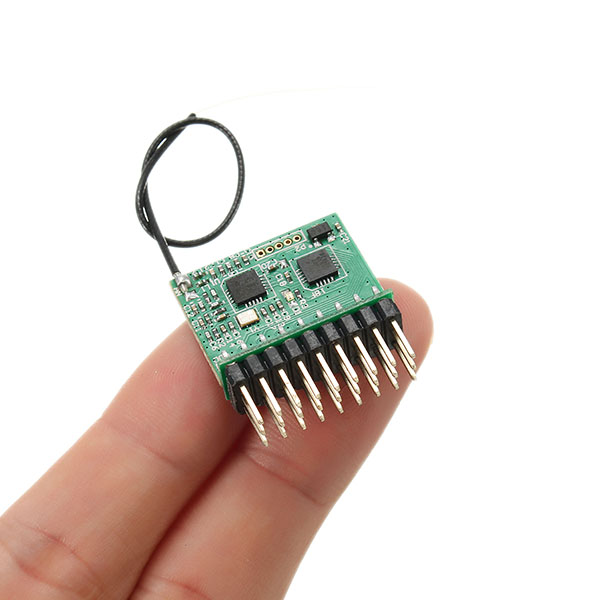

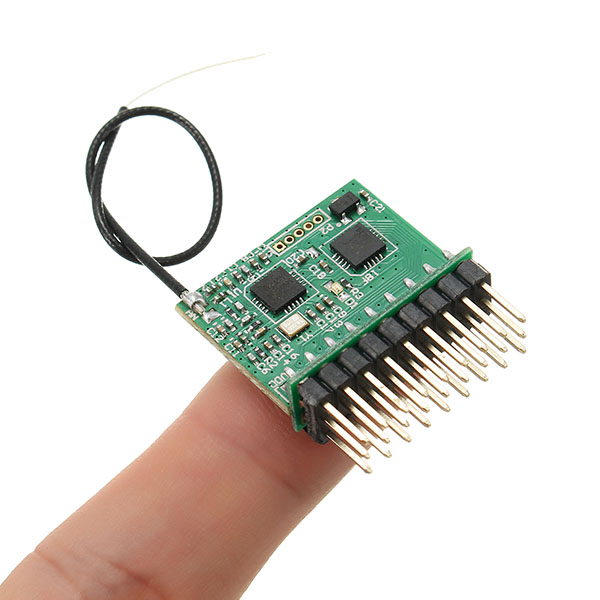

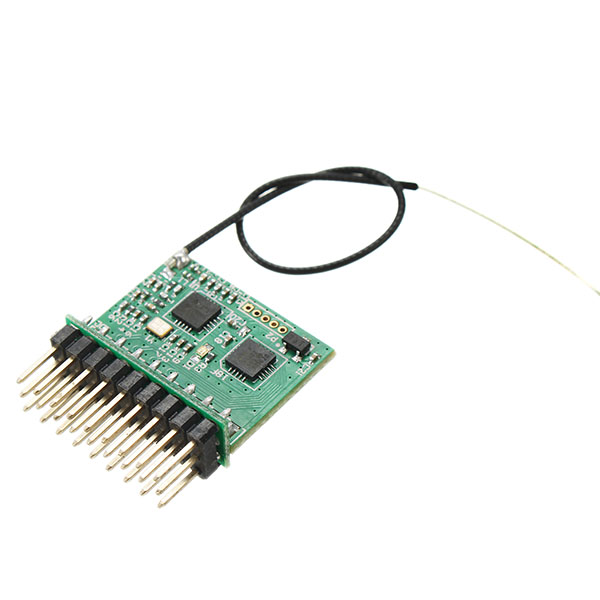

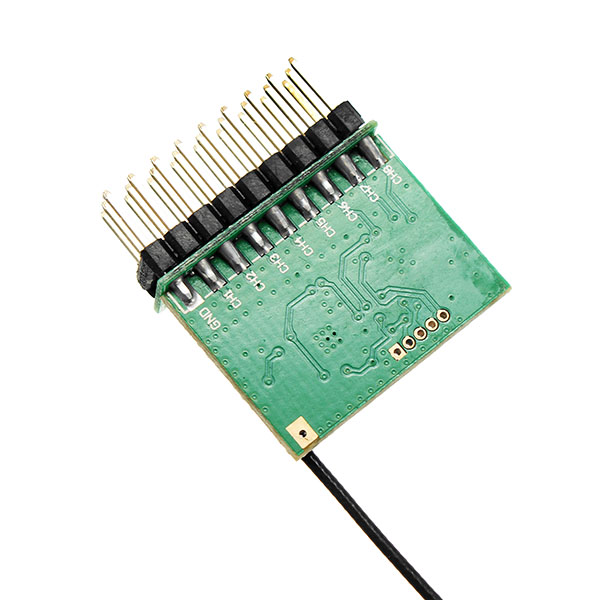

Item Name: DasMikro 8 Channel AFHDS Surface Receiver
Channels: 8ch
Frequency Band: 2.4 GHz AFHDS
Modulation: GFSK
Sensitivity: 1024
RF. Receiver Sensitivity: -100dbm
Power: 3.7~9.6V DC
Antenna Length: About 110mm
Size (W*Hx*D): 28 x 24 x 8mm
Weight: 4g
Features:
Standard 2.4Ghz 8-Channel Receiver for Flysky Transmitter, compatible with Flysky GT2B, GT3B, GT3C, i6, i10, T6, CT6B, TH9X 2.4Ghz Transmitter AFHDS protocol. Compact size design with auto-bind and failsafe.
Bind:
There is no bind pin designed, the receiver has an "autobind" procedure just like with small quad-copters. When switch on, receiver tries to bind with transmitter for about 3s (led is blinking). If receiver find a transmitter (must be also in bind mode) then it records transmitter identifier and works with it. If it can't bind with a transmitter then is retrieves previously bind transmitter identifier and works with it. This way, you save an extra pin and just need to bind only once. After bind procedure, If reception is ok then led if on, if no reception at all led if off, if reception if bad led is blinking randomly.
Failsafe:
Push the failsafe button the receiver will record 8 channels’ position as failsafe output.
Package Included:
1 x DasMikro 8 Channel AFHDS Surface Receiver
