Description
Description:
This Dual ESC module is designed for RC micro model tank, crawler and boat DIY.
Size: 19mm*23mm*5mm
Weight: 6g
Input Voltage: 4.2V-9.6V
Current: 6A Maximum
BEC: 5V1A
PWM Frequency: 250Hz
Note:
Option A: Dual Bi-Directional ESC with internal tank mix control function (2 motor mix control, signal 1 control forward/backward, signal 2 control left/right)
Option B: Dual Standalone Bi-Directional ESC (signal 1 control motor B, signal 2 control motor A)
Option C: Dual Bi-Directional ESC with Crawler DIG function (2 motor mix control, signal 1 control 2 motors forward/backward, signal 2 control the DIG function, signal 2 = middle, both motors are running; signal 2 = High, only motor A is running, motor B stop; signal 2 = Low, only motor B is running, motor A stop)

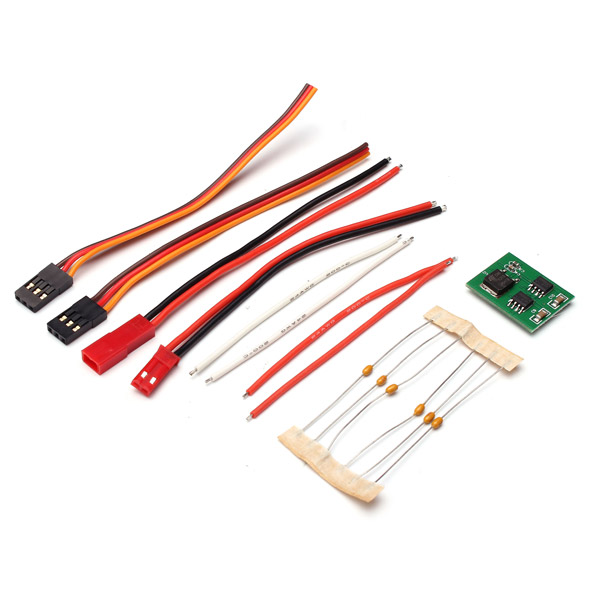

Package Included:

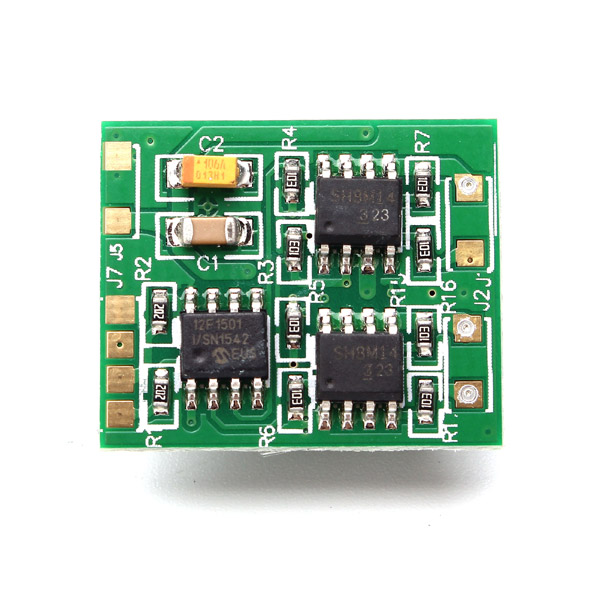

1 x 1S5A Micro Dual Bi-Directional ESC PCB
2 x Standard JST Servo Cable
1 x Standard Battery Plug Cable Set

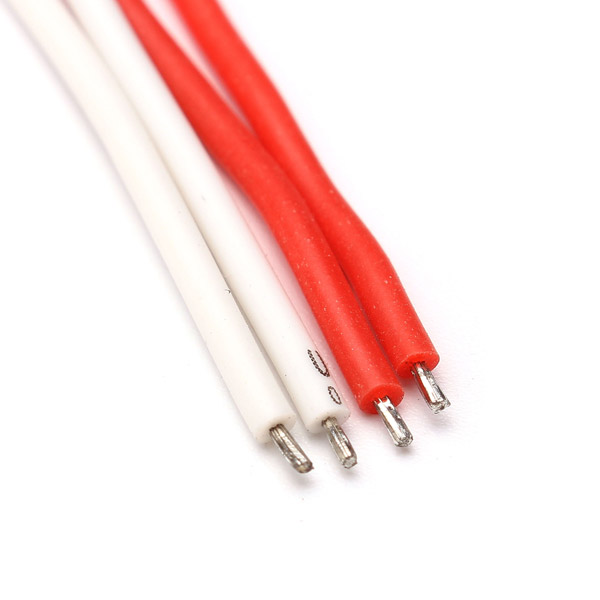

4 x Motor Cable
6 x Spark Capacitor (Brushed motor use)
,
