DasMikro 1S Bi-directional Brushed ESC With Break For Micro Racing Chassis
Description:
This Brushed ESC module is designed for RC micro indoor racing chassis DIY. It could be used to transfer micro racing chassis to standalone receiver. Like Mini-Z Lit, Dnano, Epoch 1/43, HPI RS32 and many 1/32 or 1/43 aftermarket chassis…
Default PWM frequency is 250Hz, provide 7 firmwares for different PWM frequency 250Hz, 500Hz, 1KHz, 2KHz, 4KHz, 8Khz, 16KHz. Users could update the firmware with PICKIT2 or PICKIT3.
Technical Data:
Net Weight: 2g
Operating Voltage: 3.6VS~5.5V
Size: 18*12*4mm
Current: 5A Maximum
Signal Lost Protection: Have
PWM frequency: 250Hz(Default), 500Hz, 1KHz, 2KHz, 4KHz, 8Khz, 16KHz
Package Included:

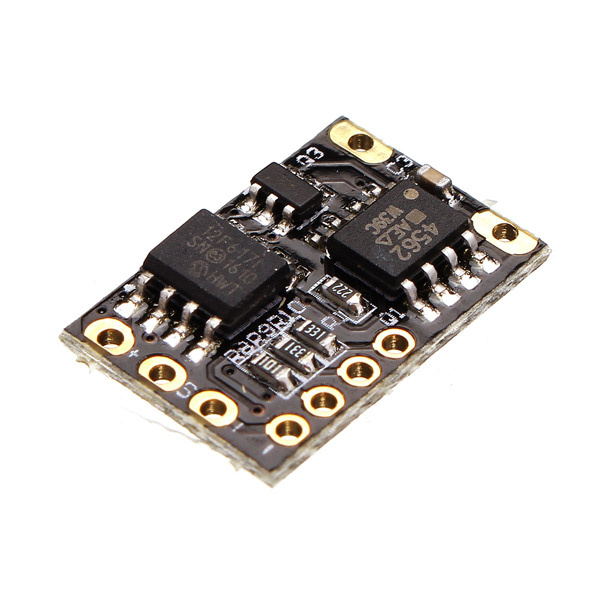

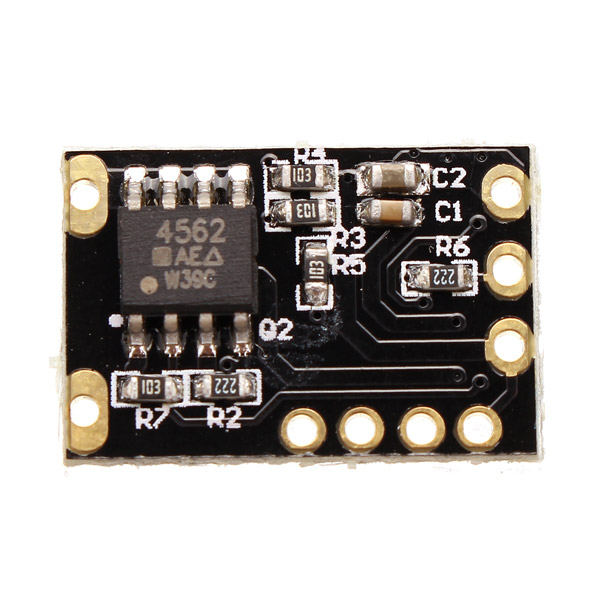

1 x 1S Bi-directional Brushed ESC Board
