Description
Description:

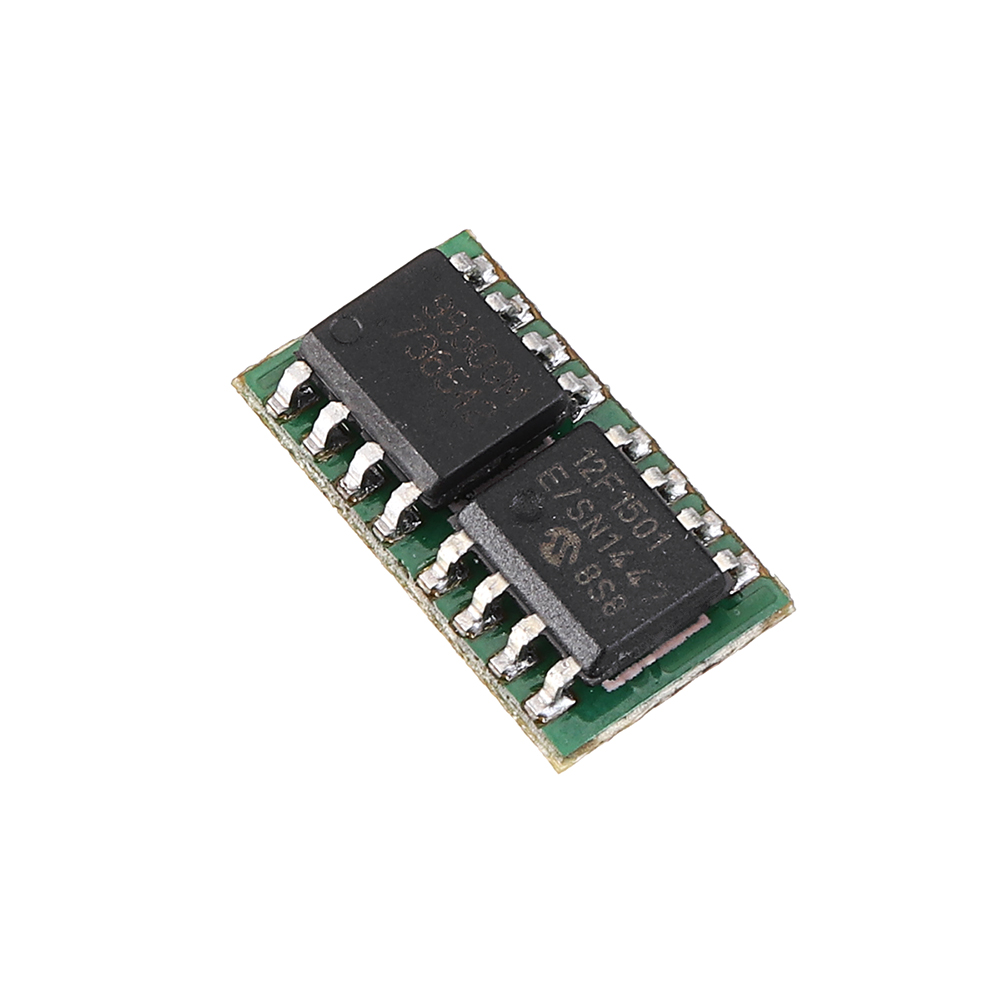

This ESC module is designed for 1/87 to 1/43 micro rc model.
The esc has no brake. Servo signal control the motor speed and servo signal control the front and rear led.
The esc has no brake. Servo signal control the motor speed and servo signal control the front and rear led.
When servo signal 2 is low, both front led and rear led are off.
When servo signal 2 is middle, front led is low beam and rear led is on.
When servo signal 2 is high, front led is far light and rear led is on.
Technical Data:
Description:
Working voltage: 3.7C-5.5V
Input Signal Type: PWM
Driving frequency: 250Hz
The servo signal range: 1ms-2ms
Output Current: 3A

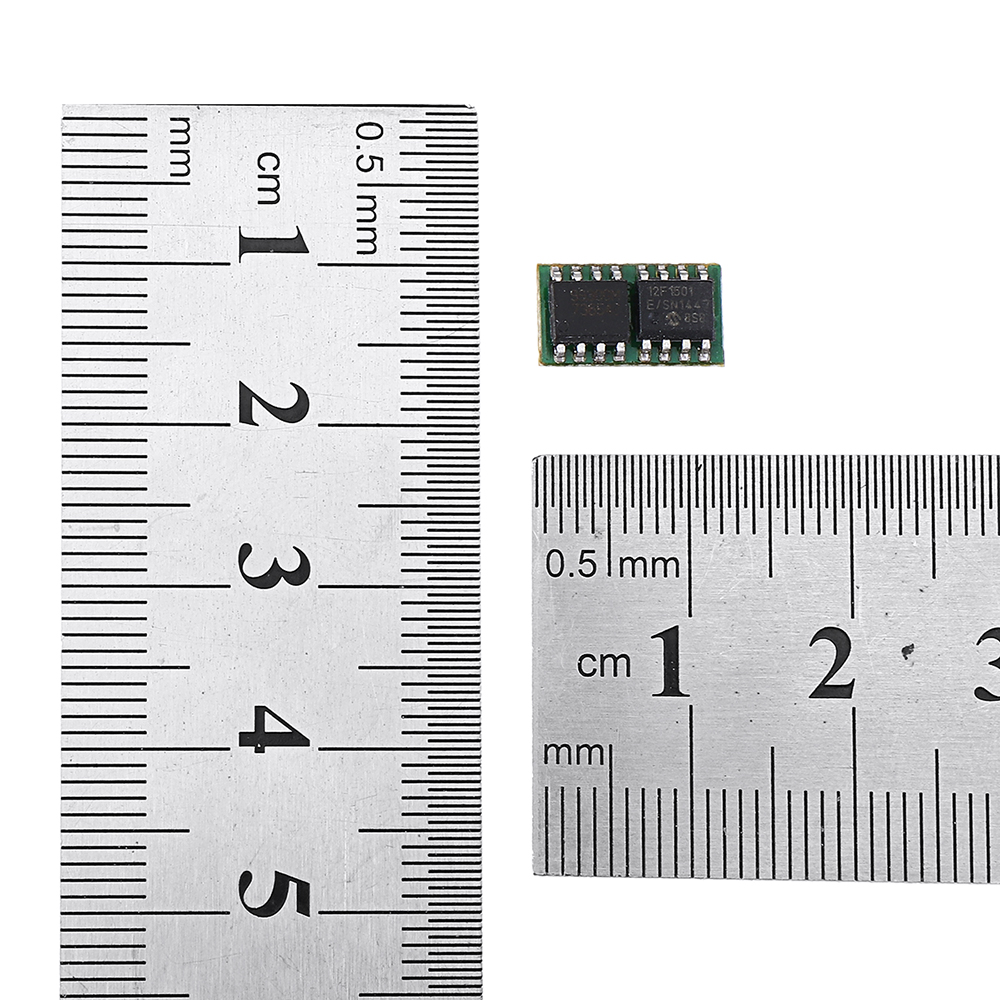

Size: 12mmx6mmx2.5mm

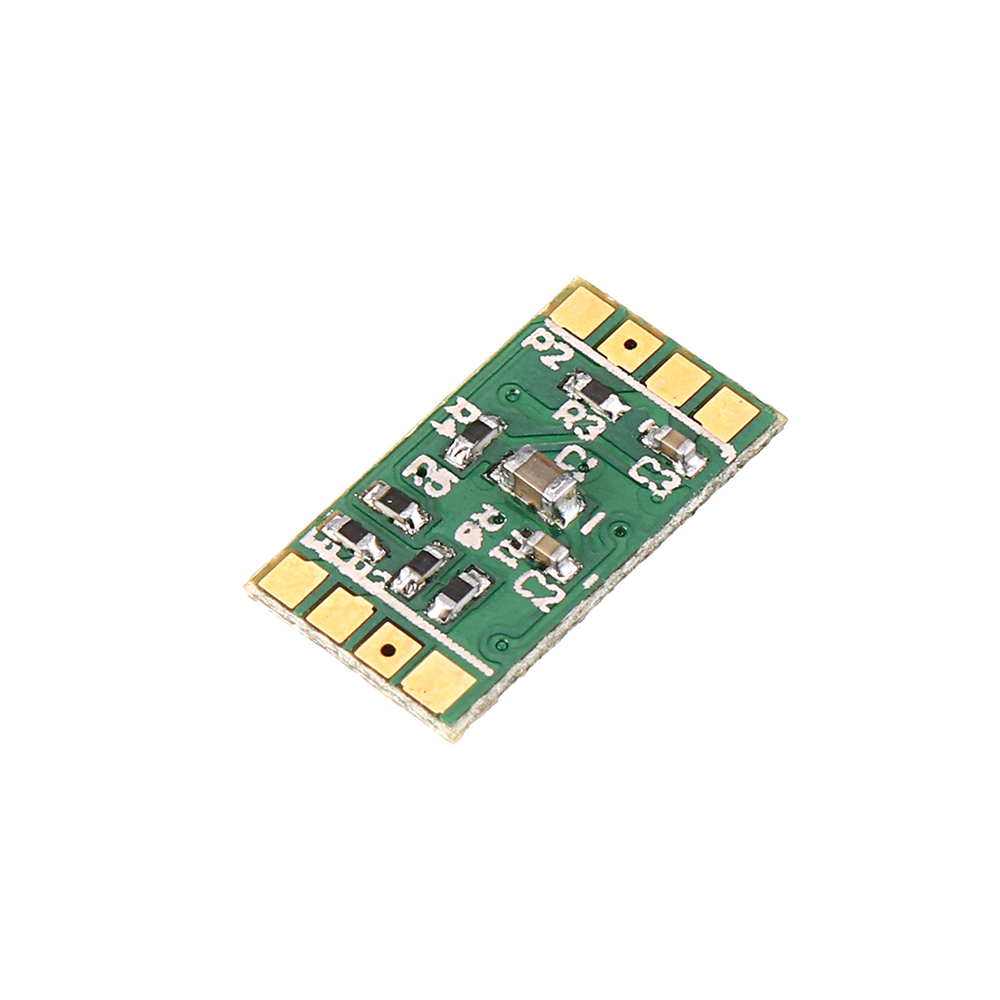

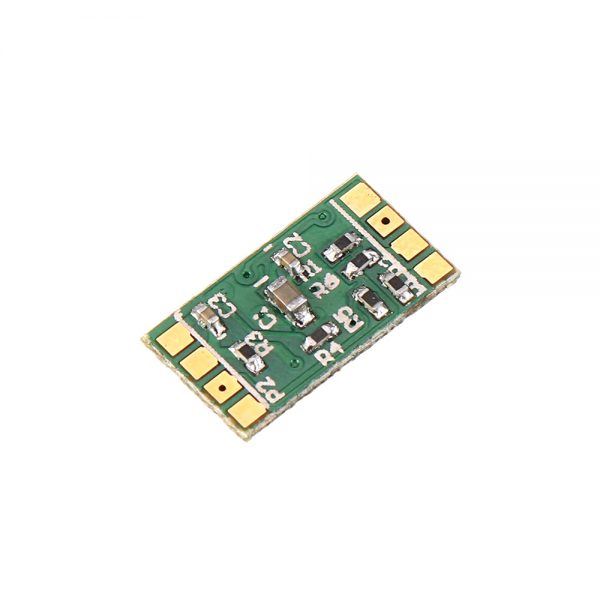

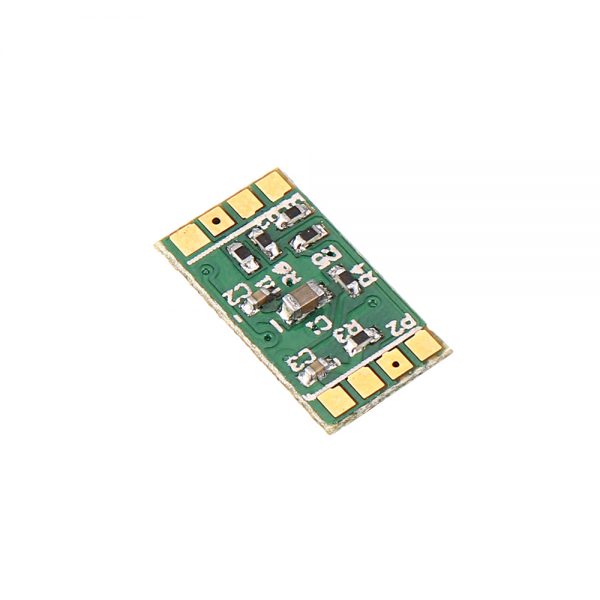

See more details about the wire connnection in the picture.
Package included:
1x Micro Speed Controller
