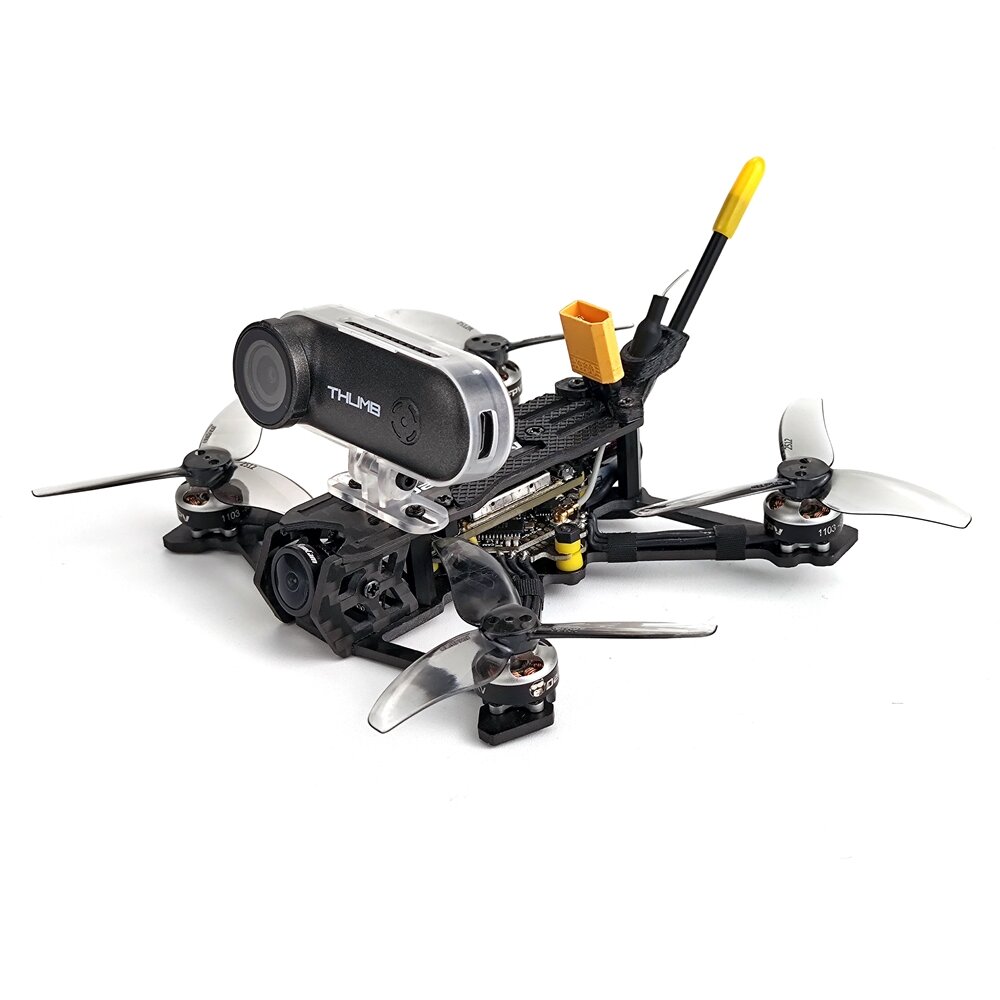

DarwinFPV TinyAPE Freestyle 2.5″ 2-3S FPV Racing RC Drone with RunCam Nano4 1103 Motor 600mW VTX Thumb Camera Support ELRS

Description

Tiny Ape Freestyle is the first 2.5” drone from Darwinfpv. In order to meet the needs of more friends and we have made multiple attempts. It comes with the Darwin ELRS2.0 F411 15A Bluejay AIO and the VTX006 which has 25-600mW output power.

Configuration:

Brand: DarwinFPV

	Tiny Ape Freestyle	Tiny Ape Freestyle+Thumb Camera
Weight	50.3g (without batteries and propeller)	61.3g (drone and camera)
Propeller	Gemfan 2512 3-blade propeller	Gemfan 2512 3-blade propeller
FC&ESC	F411 2S 15A FC (Built-in ELRS 2.4G receiver)	F411 2S 15A FC (Built-in ELRS 2.4G receiver)
Built-in Receiver Protocol	SPI ELRS 2.4G	SPI ELRS 2.4G
Motor	1103 8000KV Brushless Motor	1103 8000KV Brushless Motor
Camera	Run Cam Nano4	Run Cam Nano4
VTX	25-600mW VTX	25-600mW VTX
AIO Firmware	betaflight_4.3.0_BETAFPVF4SX1280	betaflight_4.3.0_BETAFPVF4SX1280
ESC Firmware	Bluejay_S_H_50_48_v0.14	Bluejay_S_H_50_48_v0.14
Recommended Battery	2S 380-450mah (Not Included)	2S 380-450mah (Not Included)

The AIO FC comes with ELRS_V1.0 pre-flashed. And we strongly advise everyone to stay on this version of the ELRS firmware until the BetaFlight 4.3 is officially released, as you may some bugs.

However, if you own a TX with a firmware ver. 2.x and wish to update the FC firmware, it can be done via BetaFlight V4.3.0 RC1-RC3.

Make sure you choose the right firmware, which is called — BETAFPVF4SX1280. After successfully flashing the flight controller with the latest officially released ELRS firmware, you need to flash the CLI and VTX configuration files. The following are the built-in receiver pairing tutorials and CLI files that need to be flashed after the update:

Darwinfpv ELRS-V2.0 CLI

Darwin AIO 002 FC Pairing Tutorial：

Run Cam Nano 4 Camera

The Run Cam Nano 4 uses a 1/3” CMOS sensor, 2.1mm lens and 800TVL resolution for truer colors and clearer low-light night vision.

1103 8000KV Brushless motor

1103 8000KV Brushless motor is only 3.7g and it’s power and thrust are surprising, and the flight time can achieve about 5 Minutes. We have notice: the motor only supports 2S batteries, and if it is connected to 3S to push the throttle too much the motor will be permanently damaged .

	380mah（3S）	450mah（2S）
Landing voltage	9.75V	6.5V
VTX Power	400mW	400mW
Flying Time	5.25min	5.18min

VTX
VTX006 has 25-600mW output power and can provide stable images and powerful transmission. You can choose the perfect output

power according to you FPV requirements. ( The default setting of the output power for Tiny Ape is 400mW).

Red light flashes frequency	Power
1	25mW
2	200mW
3	400mW
4	600mW

Flight Control(FC)
This is an updated version of Darwin AIO. We integrated the ELRS receiver on the FC to make it easier to apply to mini drones. The ESC

adopts Bluejay firmware, compatible with 1-3S Lipo input, 15A continuous current and 17A peak current. FC provides 2 sets of Uarts

 interfaces, and also provides various external device interfaces such as SBUS, Softserial, CTR, BUZZ, RGB, etc., which perfectly solves the

problem of insufficient number of F411 Uarts.

The built-in receiver is an SPI protocol receiver, so you need to select SPI receiver support (SPI RX support) in the betaflight configurator.

Under normal circumstances, the checkbox on the betaflight configurator receiver is empty. If the betaflight configurator used is 10.8.0 and above, the checkbox should select ‘EXPRESSLRS’. As shown below.

Package Included:

1* DarwinFPV TinyAPE Freestyle/TinyAPE Freestyle+Thumb Camera
