Description
Darwin Baby Ape has been loved by many pilots as soon as it was published. In order to design a better FPV drone, we have upgraded the Baby Ape based on the pilots’ feedback and launched the BabyApe Pro V2. It is PNP Version, ELRS Version click here.
We made seveal upgrades from the frame. First of all, nylon standoffs is upgraded to aluminum alloy standoffs, which strengthens the frame and stables structure.
Second, We added the receiver fixing bracket.
Third, we upgraded the frame/arm. They are upgraded from 4 individual (2.5mm thicness) to 2 integrated (3.0mm thickness). It is more easy to disassemble, sturdy and durable.
Last, the V2 version only needs 4 screws to fix, and the arm can be replaced by removing 2 screws without removing the whole drone.
Description:
Brand: DarwinFPV

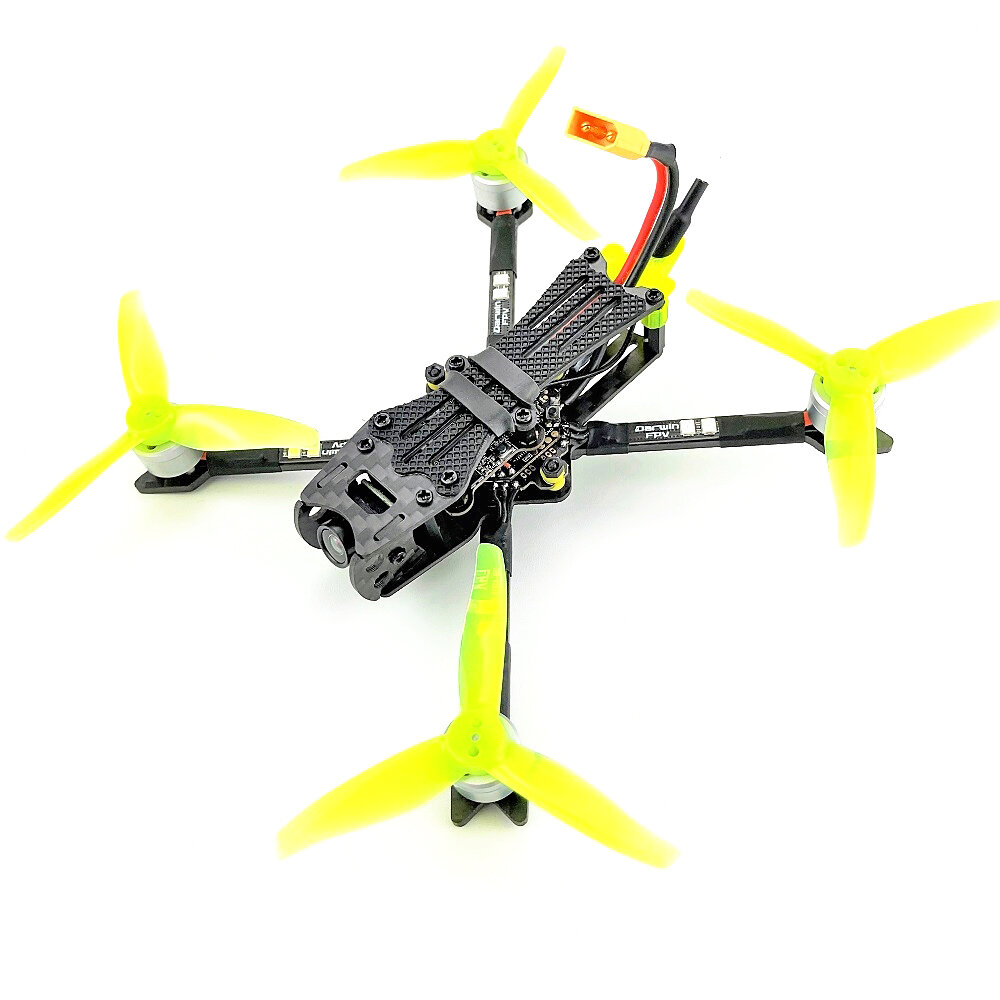

Item Name: Baby Ape/Pro 142mm 3′ FPV Drone
Color: Yellow/Black/Purple
Weight: 71.6g
| 142mm Racing Frame Kit （Click） |
Wheelbase: 142mm Frame arm thickness: 2.5mm Other thickness:1 .5mm Frame kit material: 3K carbon fiber |
| 1104 4300KV 2-3S Brushless Motor |
KV: 4300KV Lipo cell: 2-3S Weight: 6.0g |
| AIO 4 IN115A BLHeli S ESC |
Input voltage: 1-3SLIPo Continuous current: 15A Peak current:17A (10S) BEC output: No MCU: 48MHz EFM8BB21F16G Protocol: DSHOY/Oneshot/MultiHhot BLHeli-S Firmware target: S-H-50 Telemetery: No Current Sensor:No Main control chip:EFM8BB21 Firmware upgrade: Supports Dshot600 Oneshot125 MOS: 3*3 |
| F411 AIO Flight Controller (Click) |
Main control chip: STM32F411 Sensor: MPU6500 Integrated OSD PPMDSM/IBUS/UAR share: UART1-RX Mounting holes distance: 25.5*25 .5mm Supports Betaflight firmware Baro: No Black Box: No |
|
Baby APE Darwin700TVL Camera |
Resolution:700TVL Lens: 1.8mm Input: 3.5-5V TV System: PAL/NTSC |
|
Baby APE Pro CADDX ANT Camera |
Resolution:1200TVL Mage Sensor: 1/3′ CMos Sensor Input: DC 3.7-18V TV System: PAL/NTSC |
| 5.8G 40CH 0mW/25mw/200mw switchable VTX |
Supports TBS SmartAudio Transmitting power: 0mW/25mW/100mW/200mW switchable Channel: 40CH Full video format: NTSC/PAL Input voltage: 7V~24V Power dissipation: +12V/600MW Size: 25x20x6mm Weight: S3.2g (except antenna) With copper pipe mini antenna (ipex antenna) |
| 3016 3-blade propeller |
Material: PC Mounting hole: 1.5mm Center thickness: 5.5mm Quantity: 2 pairs Weight: 1.18g a pair |
| Lipo Battery | Recommend 2-3S 300-450mah(Not included) |
| Receiver | PNP(without Receiver) |
Package Included(Optional):
1x Baby Ape/Pro 142mm 3′ FPV Drone PNP
