Description
Introduction:

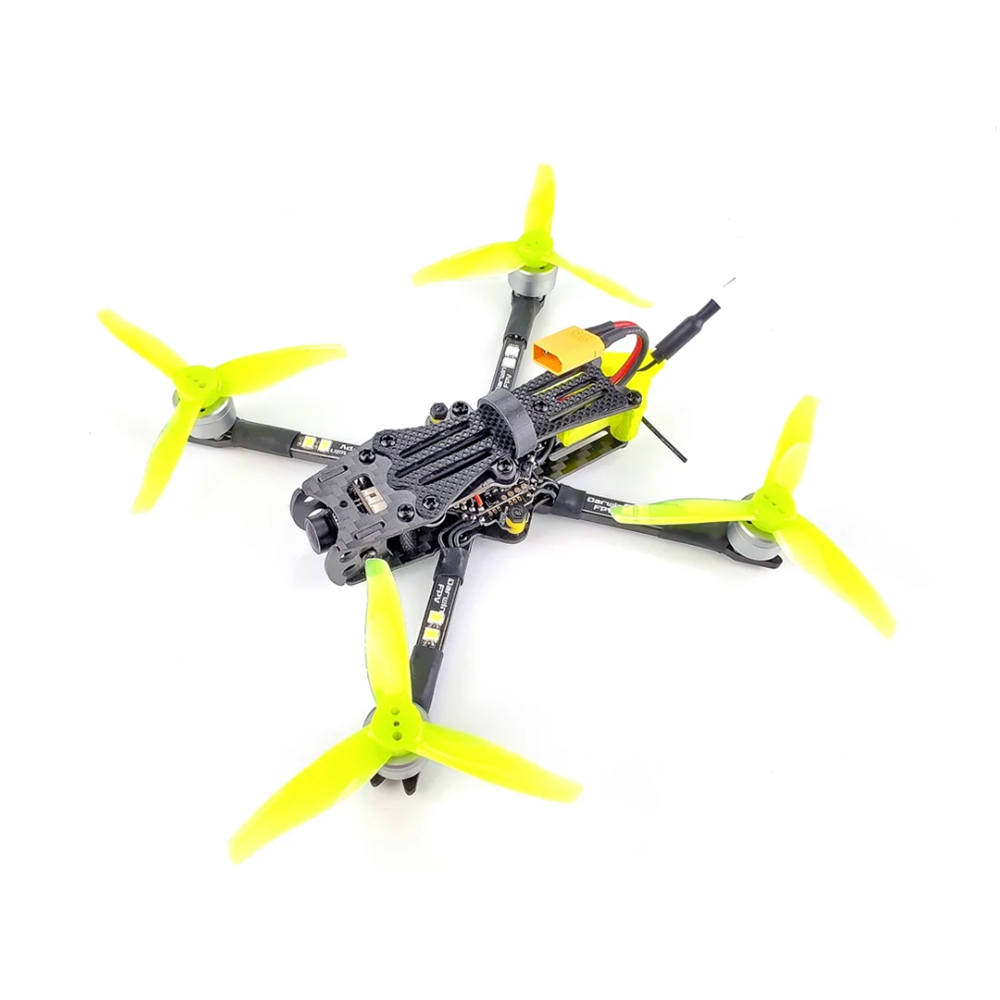

Darwin Baby Ape has been loved by many pilots as soon as it was published. In order to design a better FPV drone, we have upgraded the Baby Ape based on the pilots’ feedback and launched the BabyApe Pro V2. Now add ELRS Receiver version for option. ( PNP Version click here)
We made seveal upgrades from the frame. First of all, nylon standoffs is upgraded to aluminum alloy standoffs, which strengthens the frame and stables structure.
Second, We added the receiver fixing bracket.
Third, we upgraded the arms. The arms are upgraded from 4 individual arms(2.5mm thicness) to 2 integrated arms(3.0mm thickness). It is more easy to disassemble, sturdy and durable.
Last, the V2 version only needs 4 screws to fix, and the arm can be replaced by removing 2 screws without removing the whole drone.
Specification:
Brand: Darwinfpv
Model: Baby Ape Pro V2 ( ELRS Version )
Color: Yellow/Black/Purple ( Optional)
Item Name: 142mm Wheelbase 3 Inch 2-3S FPV Racing Drone BNF
Receiver: ELRS 2.4G
| F411 AIO Flight Controller | Main control chip: STM32F411 Integrated OSD PPM/DSM/IBUS/UAR share: UART1-RX IMU: MPU6500 (SPI) Mounting holes distance: 25.5*25.5mm Supports Betaflight firmware |
| Onboard 4IN1 15A BL_S ESC | Input voltage: 1-3S LiPo Continuous current: 15A Pe ak current:17A (10S) BEC output: no Main control chip: EFM8BB21 Firmware upgrade: Supports Dshot600/Oneshot125 MOS: 3*3 |
| 1104 4300KV 2-3S Brushless Motor | KV: 4300KV Lipo cell: 2-3S |
| 3016 3-blade propeller |
Mounting hole: 1.5mm Center thickness: 5.5mm Quantity: 2 pairs Weight: 1.18g a pair |
| 5.8G 40CH 0mW/25mw/200mw switchable VTX | Supports TBS SmartAudio Transmitting power: 0mW/25mW/100mW/200mW switchable Channel: 40CH Full video format: NTSC/PAL Input voltage: 7V~24V Power dissipation: +12V/600MW Size: 25×20×6mm Weight: ≤3.2g (except antenna) With copper pipe mini antenna (ipex antenna) |
| CADDX ANT Camera | Resolution:1200TVL mage Sensor: 1/3′ CMos Sensor Input: DC 3.7-18V TV System: PAL/NTSC |
Package Included:
1x Baby Ape Pro V2 Drone
2x 3016 Propellers CW
2x 3016 Propellers CCW
1x Set of Screws
1x ELRS Receiver
