DW Wing C10 2900KV Micro Brushless Motor ESC Servo LiPo Battery Propeller Power System Combos
Description:
Brand Name: DW Wing
Item Name: Power System Combos
Motor: C10 2900KV
Servo: 2.5g *3
ESC: 5A 2S *1
Battery: 2S 7.4V 400mAh LiPo *1
Propeller: 5030 CW*2, 5030 CCW *2
Prop Saver: 1.5mm *1
Motor Specification:
Dimension: 17.8x13mm
Weight: 8g
Max. Power: 5A or 40W
Diameter of Shaft: 2mm
Length of Shaft: 5mm
Suggested Prop: 5×3
Test Data:
| Volts (V) |
Amps (A) |
Watts (W) |
RPM | Pitch Speed (m/s) |
Thrust (g) |
Thrust (oz) |
| 7 | 3.5 | 24.5 | 11200 | 14.22 | 140 | 4.94 |
| 7.4 | 3.6 | 26.94 | 11500 | 14.61 | 151 | 5.33 |

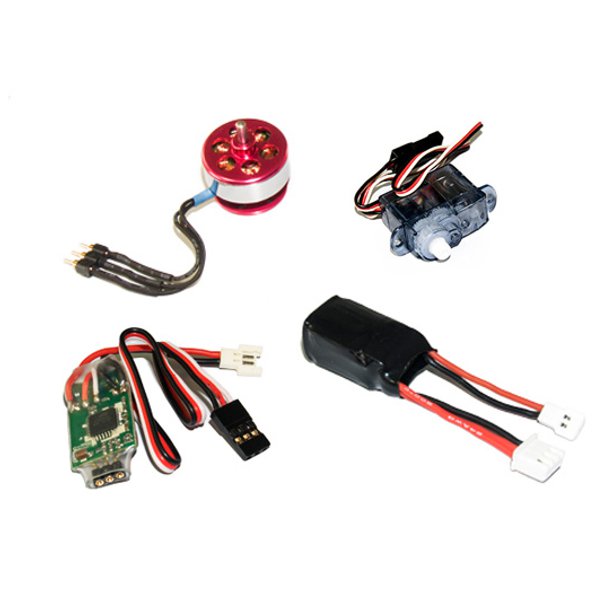

Package Included:
1x C10 2900KV motor
3x 2.5g Servo
1x 5A 2S ESC
1x 2S 7.4V 400mAh LiPo Battery
2x 5030 CW Propeller
2x 5030 CCW Propeller
1x 1.5mm Prop Saver
