Description:

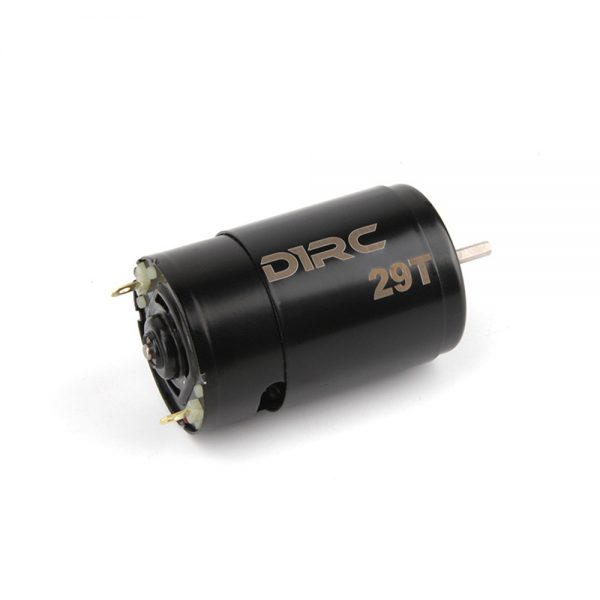

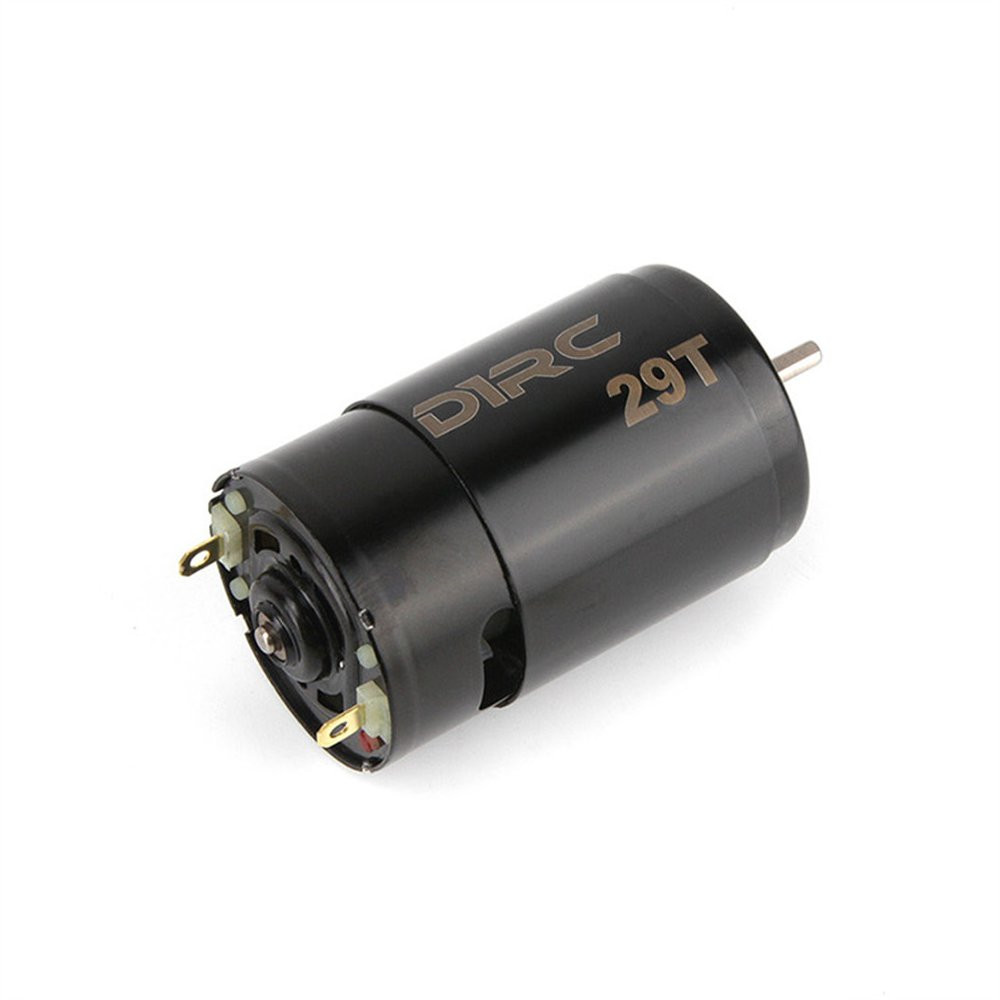

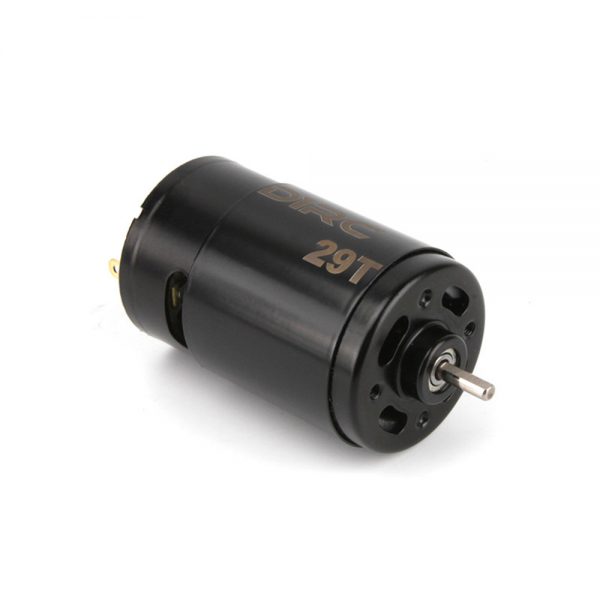

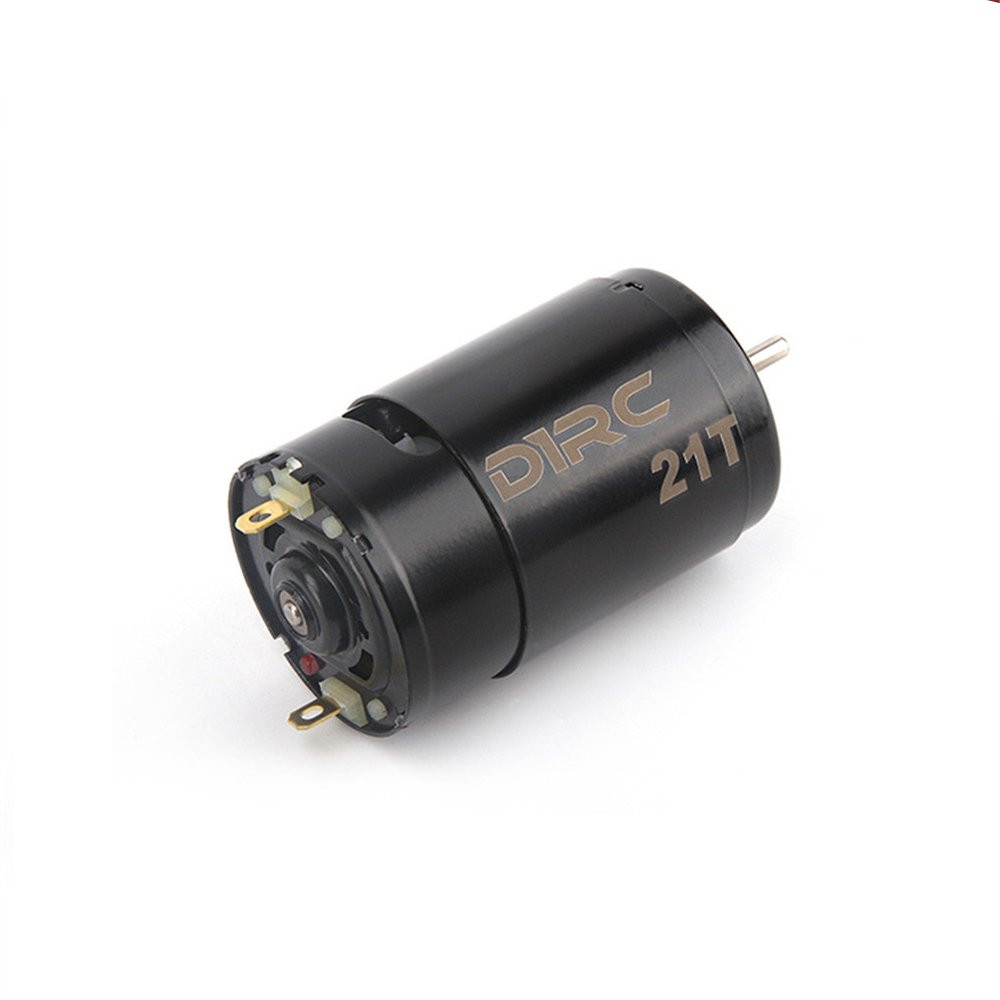

Item: 550 Brushed Motor (21/29T )
Weight:about 225g
Weight:about 225g
Voltage range:6-18V
When the Voltage is 7.4V, No-load: Speed: 10400 rpm, No-load Current: 1A
Efficacy MAX: Efficacy: 71%, Torque: 42.441mN-M. Speed: 8984 rpm, Current: 6.3
When it is output power: Output power: 68.88W, Torque: 155.842mN-M, Speed: 5465 rpm, Current: 19.62A
When it is output power: Output power: 68.88W, Torque: 155.842mN-M, Speed: 5465 rpm, Current: 19.62A
Shaft Diameter: 3.175mm,Output shaft: 9mm, Outer diameter: 36mm, Body length: 60mm, Mounting hole: Distance 25mm, 3mm screw hole
Apply to: 1/8 1/10 RC Car,Wraith,ACEI,TRX4,KM2,SCX10, if the motor installation space can meet this length of 550mm,that you can use
Features:
Extended oil bearing sleeve, low noise, long life
Inner rotor with multi-pole winding, strong torque, low speed performance, linear fine
Built-in cooling fan, external degaussing jacket
Package included:
1x 550 Brushed Motor
