Description

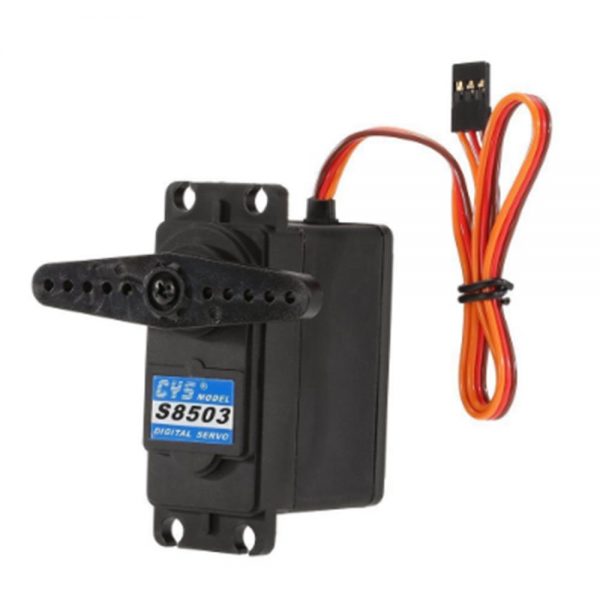

CYS-S8503 30KG Digital Metal Gear Servo for 1/5 Redcat HPI Baja 5B SS RC Car Gas Buggy Monster Truck
Features:
All aluminum alloy case torque
Large stall torgue of 28Kg
High precision metal gear
Light weight and easy to take
Modified design and high quality
Ideal choice for 1/51 Redcat HPI Baja 5B SS RC car
Specification:
Item No. CYS-S8503
Type Digital
Weight 164g
Size 59.2*29.2*51.3mm
Control System (+)Pulse Width Control 1500usec Neutral
Required Pulse
Operating Voltage 6.0~7.4Volts
Operating Temperature Range (-)10 to +50 degree C
Operating Speed (6.0V) 0.22sec/60° at no load
Operating Speed (7.4V) 0.20sec/60° at no load
Stall Torque (6.0V) 26kg.cm
Stall Torque (7.4V) 28kg.cm
Operating Angle 45deg.one side pulse traveling 500 usec
360 Modifiable No
Direction Anticlockwise/Pulse Traveling 1000~2000usec
Current Drain (6.0V) 20mA/idle and 300mA no load operating
Current Drain (7.4V) 20mA/idle and 400mA no load operating
Stall Current 3.5A/3.9A
Dead Band Width 4usec
Motor Type 3 Pole Ferrite Drive
Bearing Type Dual Ball Bearing
Horn gear spline 17T
Gear Type Metal
Important Notes:
-Refer to the figure when installing the servo accessories.
-For engine powered airplanes and boats, rubber must be used to reduce vibration.
– Please choose correct model for your application.
-Torque over-loaded will damage the servo's mechanism-.
– Keep the servo clean and away from dust, corrosive gas and humid air.

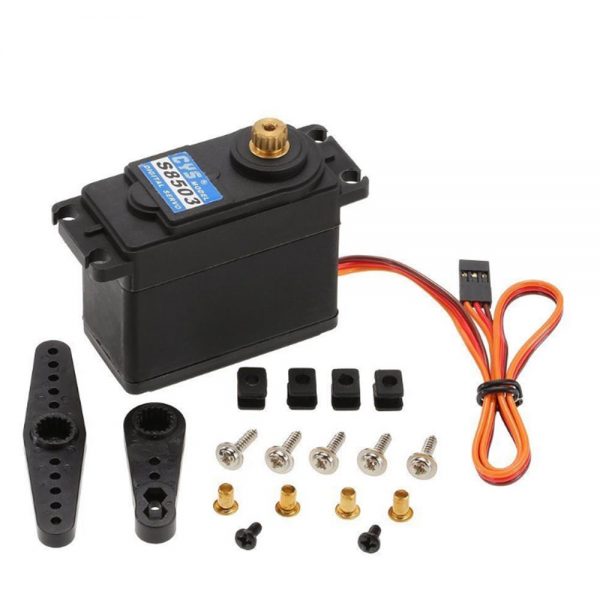

Package Included:
1 * CYS-S8503 30KG Digital Servo
1 * Spare Parts Set
