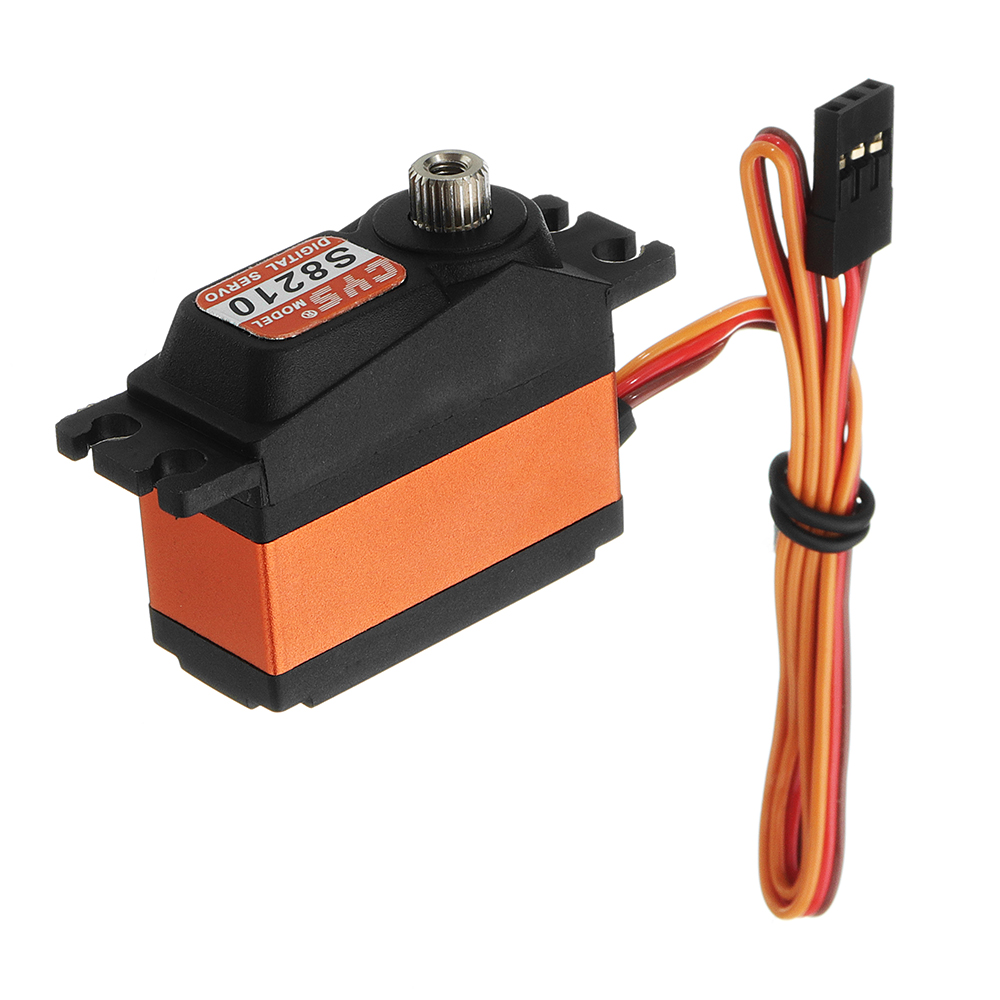

CYS-S8210 4.8-6.0V Metal Gear Micro Digital Tsil Servo for 450 500 RC Helicopter
Description:
Item No. CYS-S8210
Type Digital
Weight 25g
Size 35*15*30mm
Control System (+)Pulse Width Control 1500usec Neutral
Operating Voltage 4.8~6.0Volts
Operating Temperature Range (-)20 to +60 degree C
Operating Speed (4.8V) 0.10sec/60° at no load
Operating Speed (6.0V) 0.08sec/60° at no load
Stall Torque (4.8V) 2.0kg.cm
Operating Temperature Range (-)20 to +60 degree C
Operating Speed (4.8V) 0.10sec/60° at no load
Operating Speed (6.0V) 0.08sec/60° at no load
Stall Torque (4.8V) 2.0kg.cm
Stall Torque (6.0V) 2.2kg.cm
Operating Angle 45deg.one side pulse traveling 500 usec
360 Modifiable No
Direction Anticlockwise/Pulse Traveling 1000~2000usec
Current Drain (4.8V) 20mA/idle and 120mA no load operating
Current Drain (5.0V) 20mA/idle and 150mA no load operating
Current Drain (4.8V) 20mA/idle and 120mA no load operating
Current Drain (5.0V) 20mA/idle and 150mA no load operating
Stall Current 800mA/900mA
Dead Band Width 2usec
Motor Type 3 Pole Ferrite Drive
Bearing Type Dual Ball Bearing
Horn gear spline 25T
Gear Type Metal
Important Notes:
-Refer to the figure when installing the servo accessories.
-For engine powered airplanes and boats, rubber must be used to reduce vibration.
– Please choose correct model for your application.
-Torque over-loaded will damage the servo's mechanism-.
– Keep the servo clean and away from dust, corrosive gas and humid air.

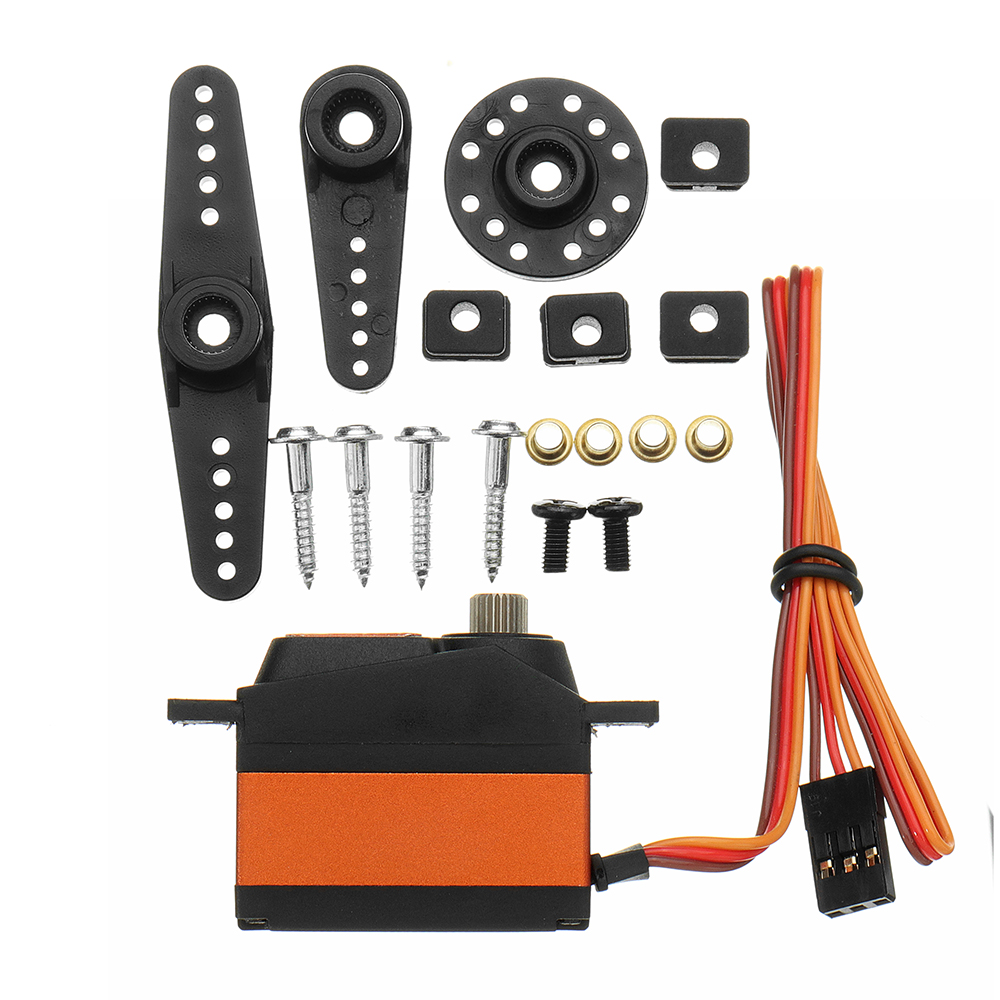

Package Included:
1 x CYS-S8210 500 Helicopter Tsil Servo
