CYS S0650 Large 55KG HV High Torque Metal Gear Digital Servo for RC Car Boat Airplane

$33.99

Local Warehouse
Cheapest Prices Worldwide
Fast Postage Available
100% Customer Satisfaction
Quality Guarantee
Buy Direct From Supplier

Category:

Description

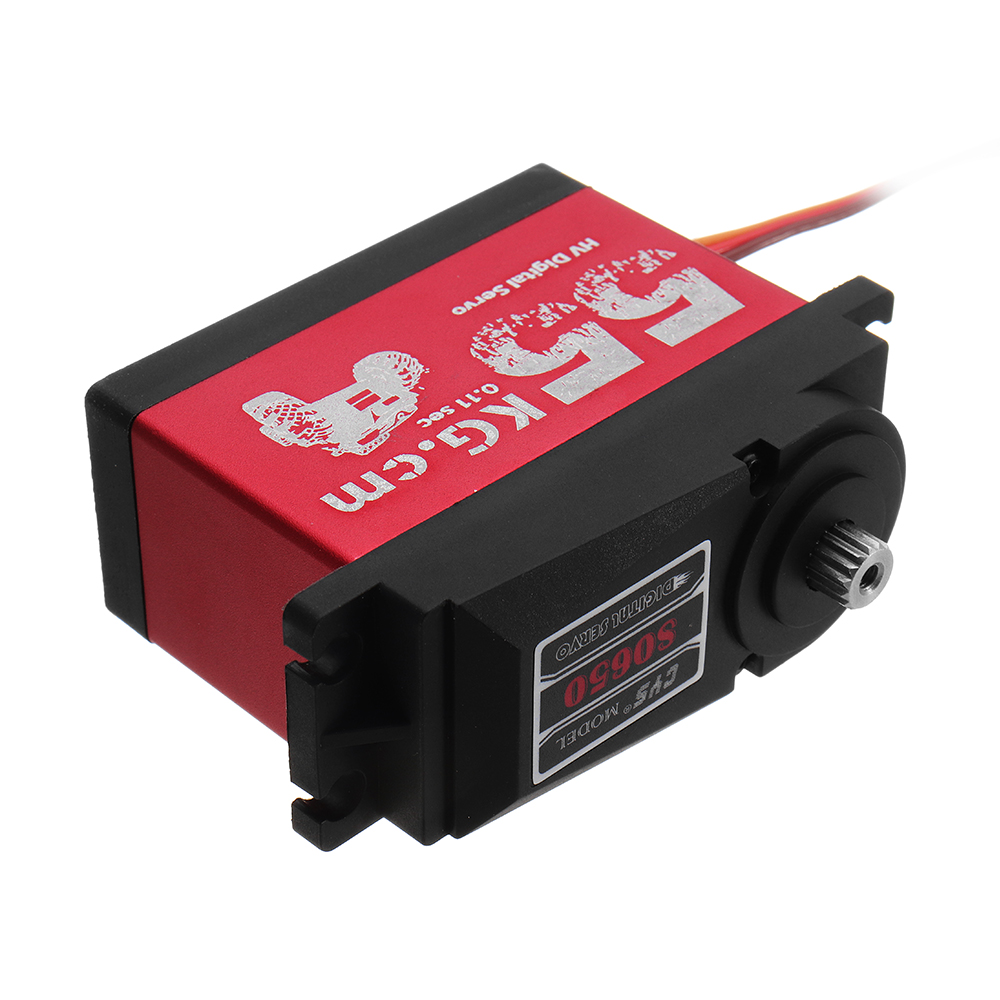

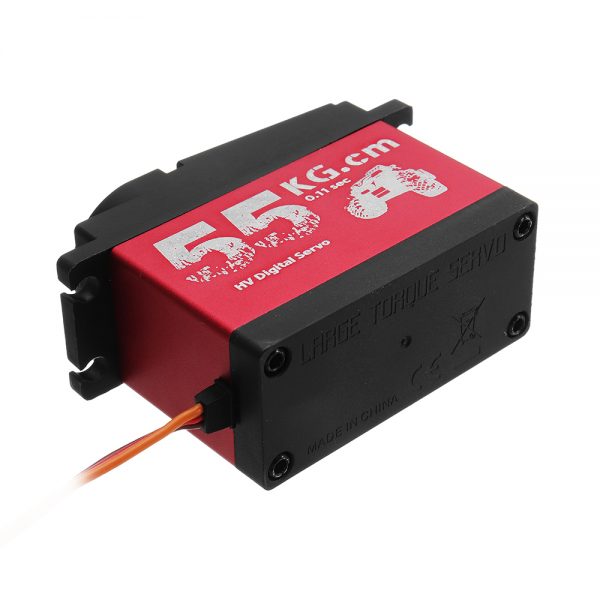

CYS-S0650 Large 55KG HV High Torque Metal Gear Digital Servo for RC Car Boat Airplane

The CYS-S0650 55Kg Digital Servo features HV high torque, metal gear, fast heat dissipation, sensitivity and responsiveness, which with high quality and performance is tailored for RC hobbyist to provide different experience and delight.

Features:

Wide operating voltage-6V to 7.4V
Easy to install and exquisite workmanship
High-precision metal gears provide more accuracy
Large Torque – maximum torque is up to 55kg.cm (7.4V)
Made of first-grade material ensure the longevity of the products
Ideal choice for RC Car Boat Airplane HPI Rovan Km Baja 5B 5T

Specifications:

Model: CYS-S0650
Item Name: CYS-S0650 HV Digital Servo
Operating Voltage: 6V-7.4V
Operating Speed (6.0V): 0.13sec / 60 degree
Operating Speed (7.4V): 0.11sec / 60 degree
Stall Torque (6.0V): 45kg.cm
Stall Torque (7.4V): 55kg.cm
Stall Current: 10.0A (6.0V) / 13.4V (7.4V)
Running Current (At no load): 120mA (6.0V)
Running Current (At no load): 150mA (7.4V)
Idle Current (At stopped): 20mA (6.0V / 7.4V)

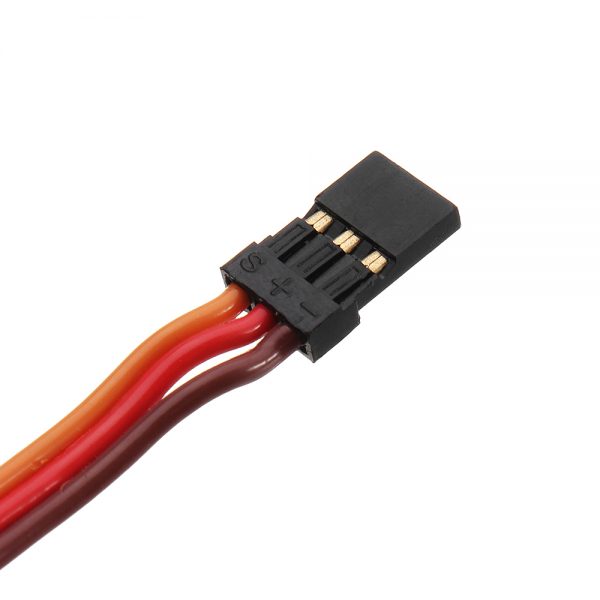

Connector Wire: About 300mm
Gear Type: Metal
Size: 66 * 30 * 56mm
Weight: 202g

Important Notes:

-Refer to the figure when installing the servo accessories.
-For engine powered airplanes and boats, rubber must be used to reduce vibration.
– Please choose correct model for your application.
-Torque over-loaded will damage the servo's mechanism-.
– Keep the servo clean and away from dust, corrosive gas and humid air.

Package Included:
1 * CYS-S8101 13KG Robot Servo

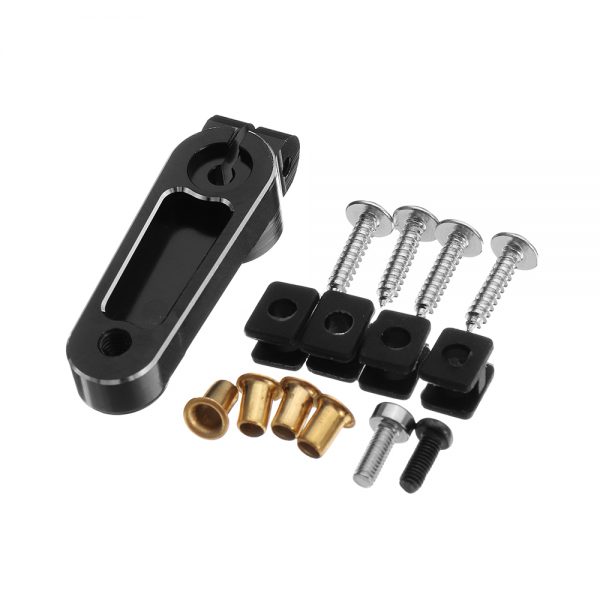

1 * Spare Parts Set
