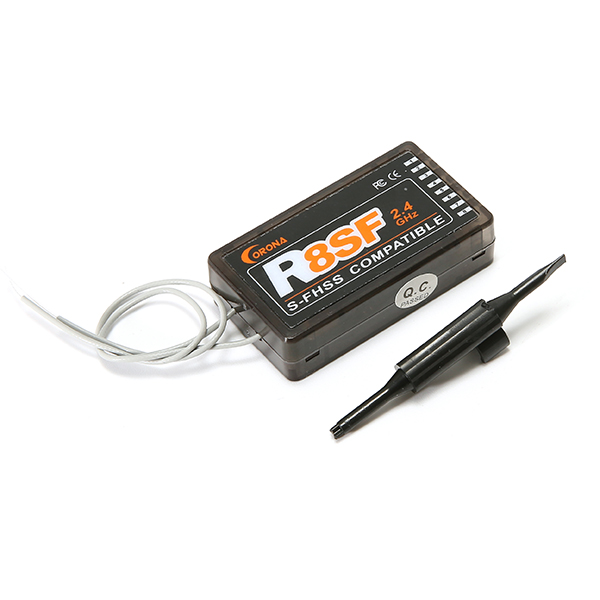

CORONA R8SF S-FHSS 2.4G 8CH Compatible Receiver for Fuataba T6J T6K T8J T10J T14SG T18MZT 18SZ
CORONA 2.4GHz S-FHSS Compatible Receiver is designed to use with FUTABA S-FHSS/FHSS 2.4GHz transmitters, such as air system T4YF,T6J,T6K,T8J,T10J, T14SG ,T18MZ,T18SZ or surface system 3PL,T3PRKA,4PLS,T4PX,T4GRS under S-FHSS/FHSS protocol mode.
Description:
Brand: Corona
Item Name: R8SF
CH: 8
Voltage Range :3.6~8.5V
Operating Current: 60mA max and 45mA under linked
Operation temperature: -10~70 degC
Latency: 13.6mS or 20.4mS
Sensitivity: about -100dBm for R8SF, -98dBm for R6SF and -95dBm for R4SF
Weight: 11g
Features:
S.BUS output support expanding servo channels on the 8th channel of R8SF
20.4mS latency under normal status after bind support analog servos,13.6mS latency under special status supply enhancement smooth flight with digital servos.
Bind procedure:
Turn on the S-FHSS/FHSS transmitter, leave it 0.5M~1M away the receiver.
Connect the battery to the receiver while pressing receiver’s F/S button.
Red LED light on and Green LED off when searching signals, and turn to Green LED light on and Red LED off indicate bind is succeeded.
Package included:
1x ORONA R8SF 2.4GHz S-FHSS Receiver
