Description
CORONA DS-929MG 13.6g Metal Gear Digital Servo
Descripton:
Brand Name: Corona
Item NO.: DS-929MG
Item Name: Digital servo
Dimensions: 22.5X11.5X24.6mm(0.88"x0.45"x0.96")
Operating Speed: 0.11sec/60º
Operating Stroke :40°/one side pulse traveling 400us
Operating Voltage: 4.8V / 6.0V
Operating Current: 200mA/60º
Operating Temperature Range: -20℃ ~ +60℃
Static Torque: 1.8kg
Stall Torque: 2.0kg.cm
Weight: 13.6g
Dead Band : ≤ 3uSec
Potentiometer: 2 slider/Direct Drive
Ball bearing: MR85
Gear: Metal

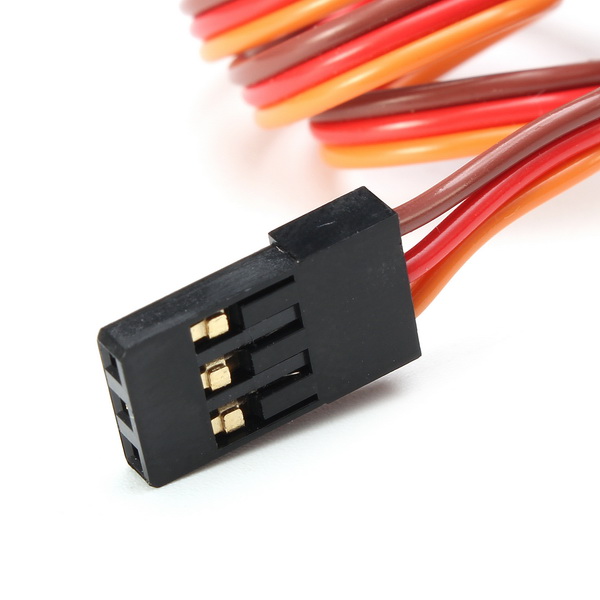

Connection Wire Length: 215mm

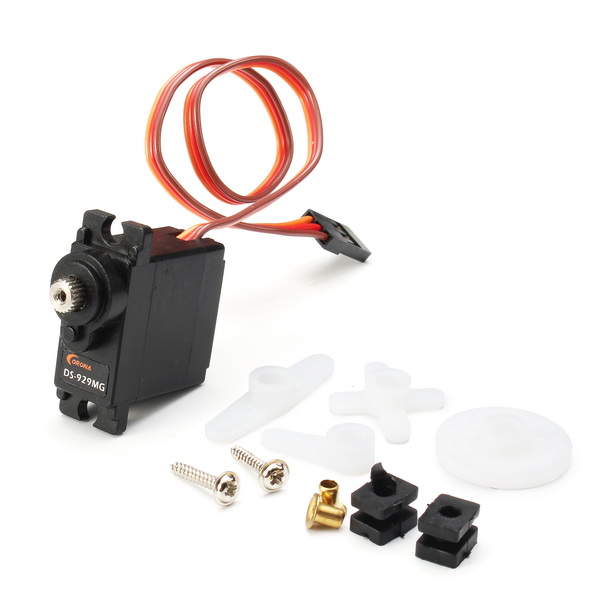

Package Included:
1x CORONA DS-929MG digital servo
