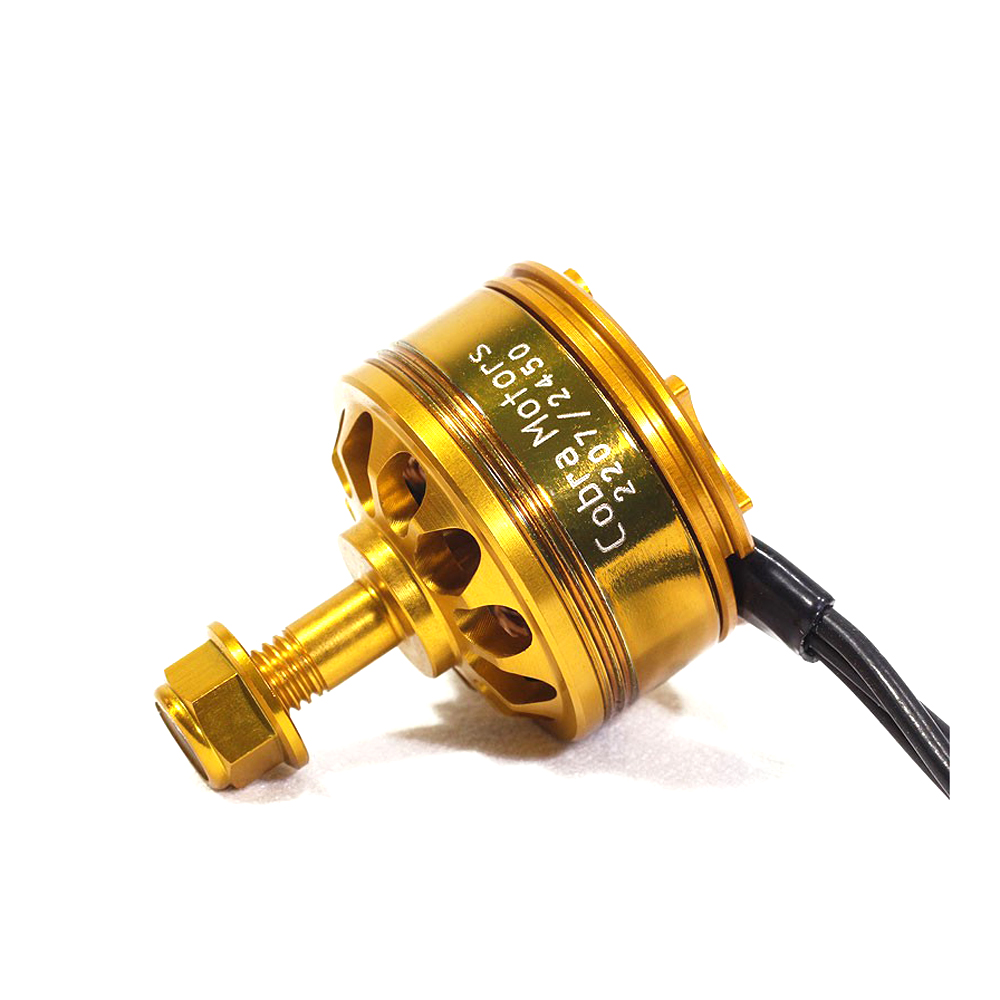

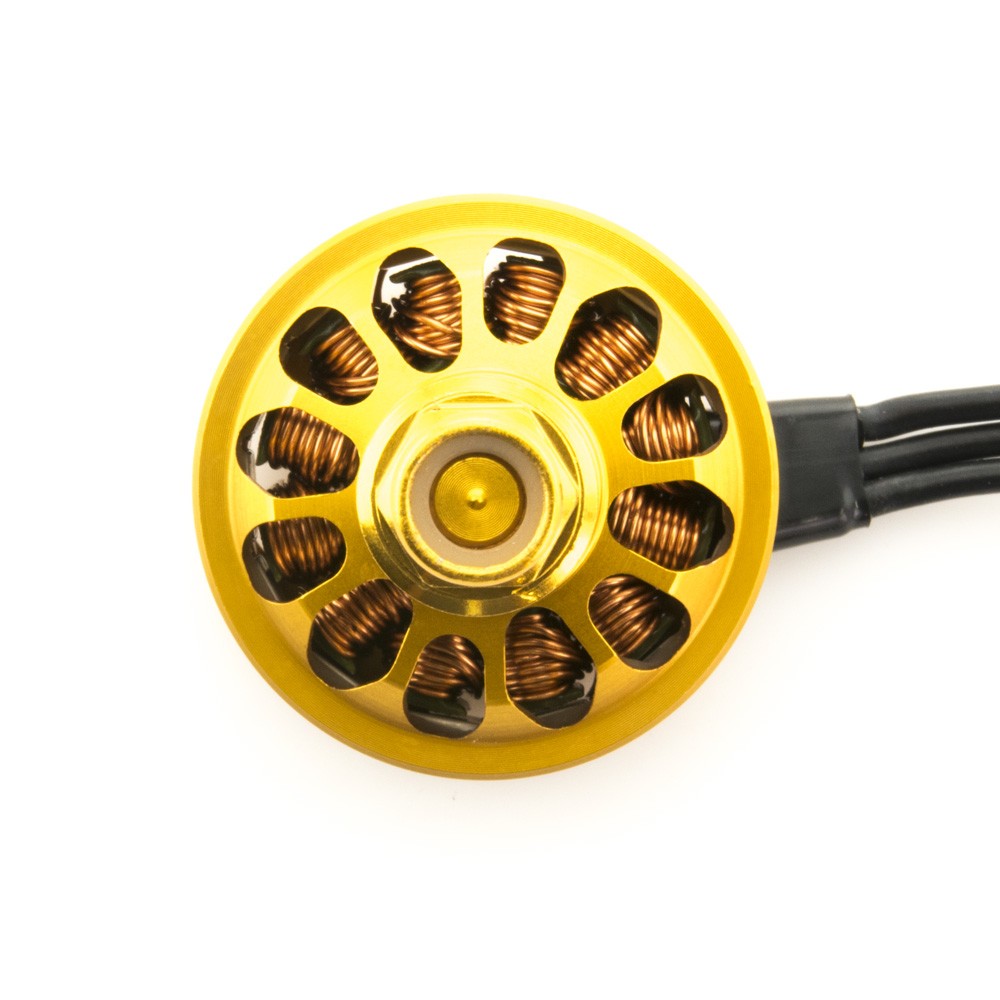

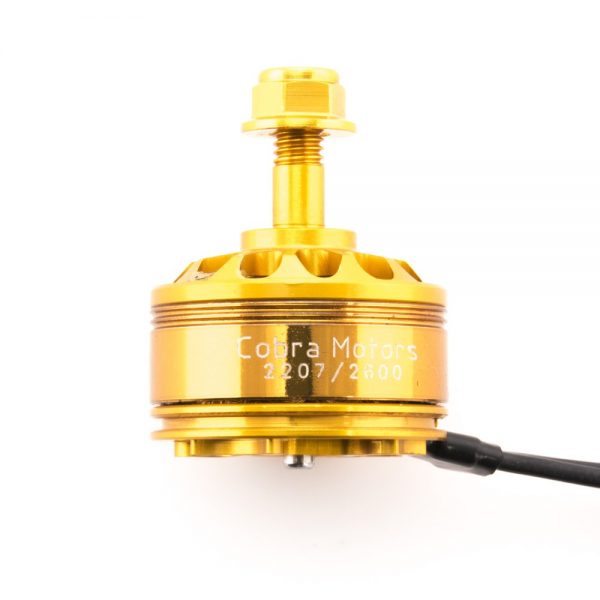

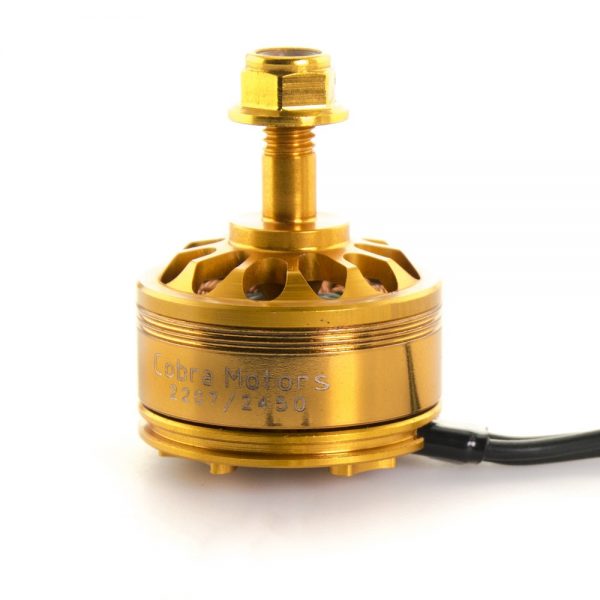

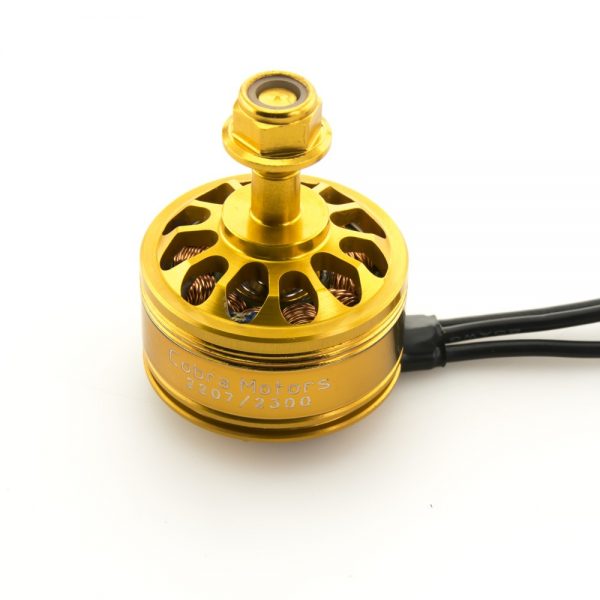

Cobra Champion CP2207 2207 Golden 2300KV 2450KV 2600KV 3-6S Brushless Motor For 250 280 300 RC Drone
Description:
Brand: Cobra
Item name: CP2207 Golden Brushless Motor
Stator diameter: 22.0 mm (0.866 in)
Stator thickness: 7.0 mm (0.276 in)
Number of stator slots: 12
Number of magnet poles: 14
Motor weight: 34.5 grams
Outside diameter: 27.9 mm
Motor shaft diameter: 3.00 mm
Prop shaft diameter: 5.00 mm
Motor body length: 21.0 mm
Overall shaft length: 36.4 mm
2600KV:
Motor wind: 14 turn delta
Motor KV value: 2600 RPM per volt
No Load current (Io): 1.9 amps @ 14 volts
Motor resistance (Rm) per phase: 0.04 Ohms
Motor resistance (Rm) phase to phase: 0.026 Ohms
Maximum continuous current: 34 Amps
Max continuous power (3-cell Li-Po): 370 watts
Max continuous power (4-cell Li-Po): 500 watts
Max continuous power (5-cell Li-Po): 605 watts
Features:
The stators are made with 0.20mm laminations for maximum efficiency and minimum Eddy Current losses.
Since these motors are typically soldered directly to the speed controller to save weight, the CP-2207 motor comes without bullet connectors, and feature extended pre-tinned motor leads that are 2-1/4 inches (55mm) long.

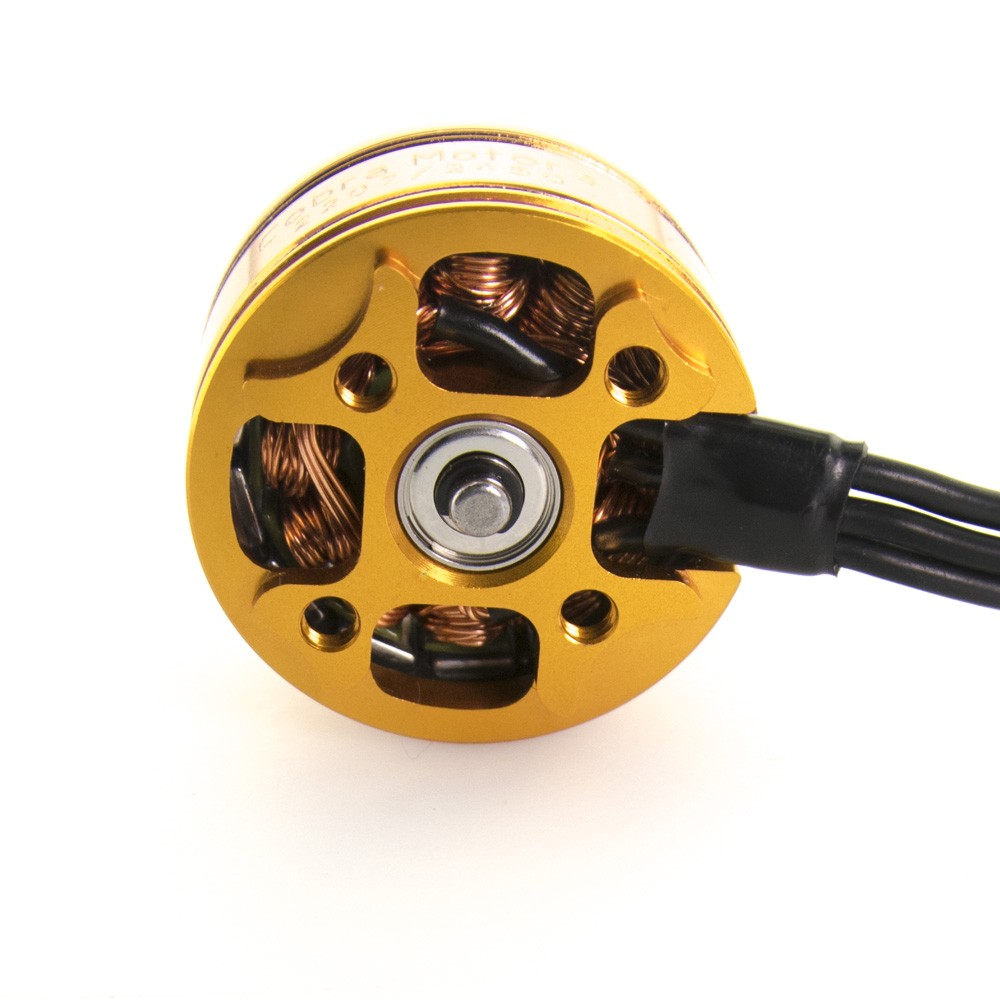

These motors also have 3mm threaded holes in a 16x19mm pattern on the back plate for easy installation on your model.
Features an integrated 5mm threaded motor shaft which eliminates the chance of having a prop adapter spin off in flight.
The included nylon insert prop nut, which has an integrated prop washer, provides a solid attachment for your propellers that will not loosen up and slip during use.

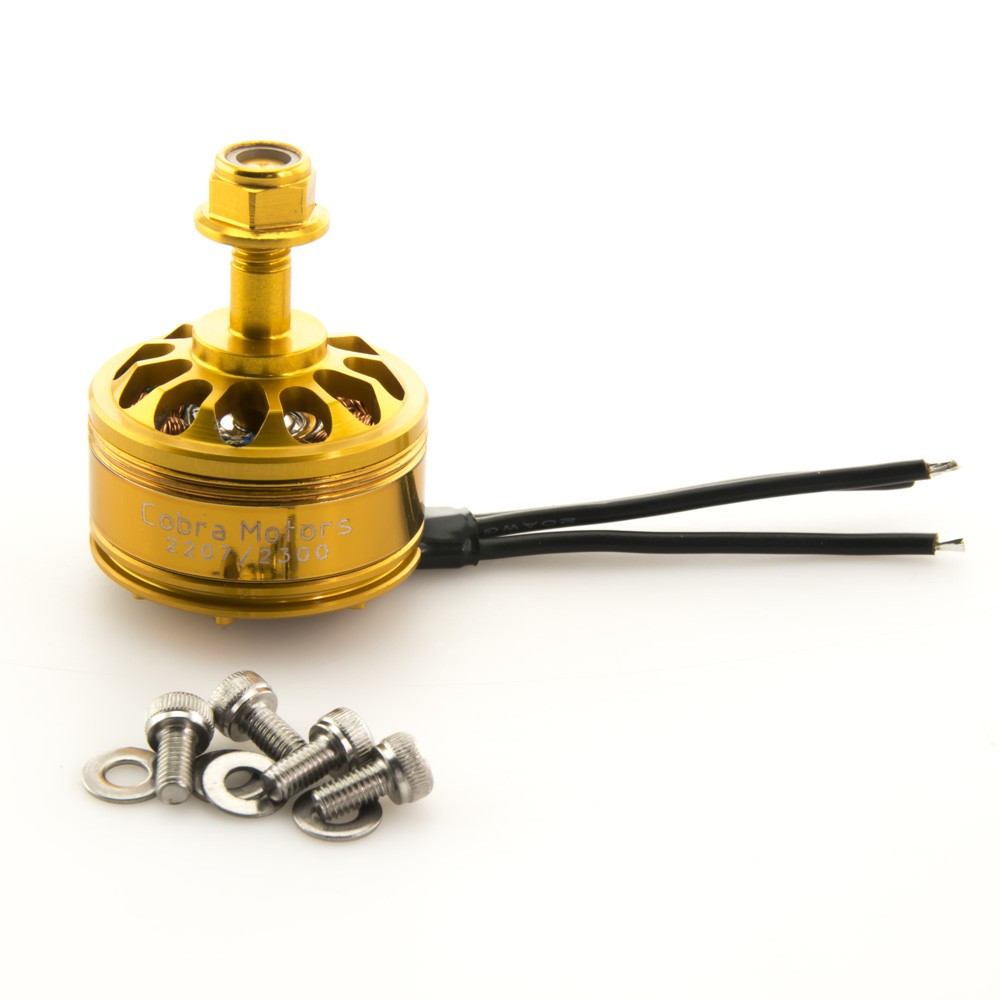

Package included:
1 x Cobra CP2207 brushless motor
1 x Flange style self-locking prop nut with nylon insert
4 x M3 flat washers
4 x M3*6 hexagon socket head screw
