Description
REDCON CM703 2.4GHZ 7CH DSM2 DSMX Compatible Receiver With Satellite PPM PWM Output
Description:
Brand Name: REDCON
Item Name: CM703 2.4GHZ 7CH DSM2 DSMX Compatible Receiver
Band: 2.4GHZ
Channel: 7+PPM output
Operating Voltage: 3.3V-9.6V
Brown-Out Voltage: 4.0v (Always supply power above this voltage)
Antenna Length Main RX: 13.5cm (2)
Modulation: DSM2/DSMX
PPM Output: Yes (support RC multicopters)
Compatible Transmitter: JR and Spektrum DSMX DSM2 transmitter
Features:
6 channels with PPM Output
3dbi gain antenna,15dbi gain amplifier.
Stronger anti-interference ability and farther control range.
Patent pending Model Match prevents flying a model using the wrong model memory (feature does not work with module systems)
Servo Sync (feature does not work with module systems)
Preset failsafe system
Quick Connect
Compatibility (Spectrum and JR DSM2 /DSMX): DX6I,DX7,DX8, DSX7,DSX9 DSX11
General Notes:
Only one time bind procedure is required on a new receiver.
Repetitive binding provides no extra security.
Always remember to remove the binding harness after successful bind is completed.
Package Included:

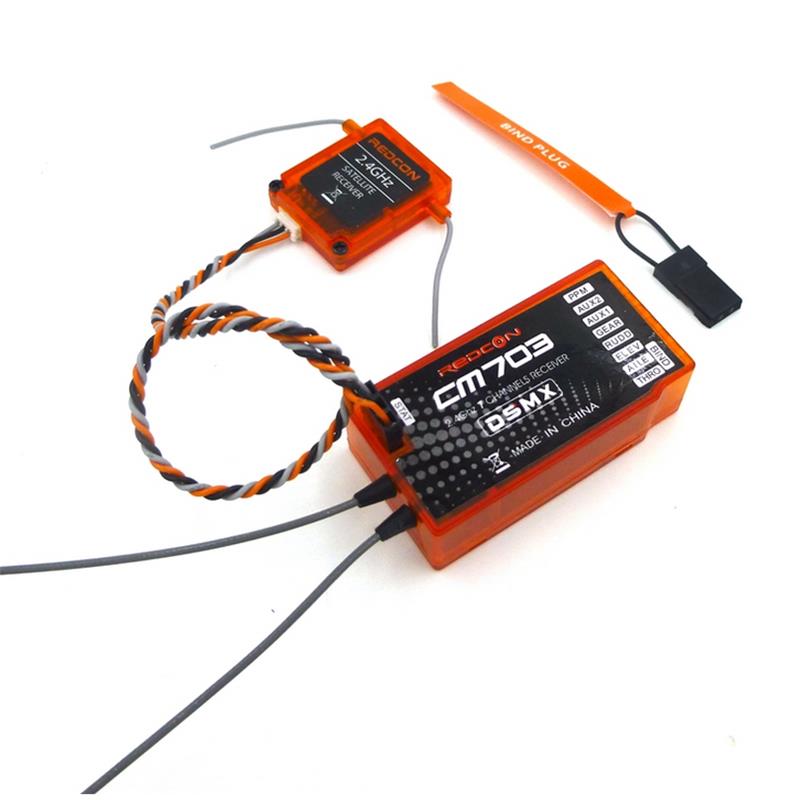

1XREDCON CM703 receiver

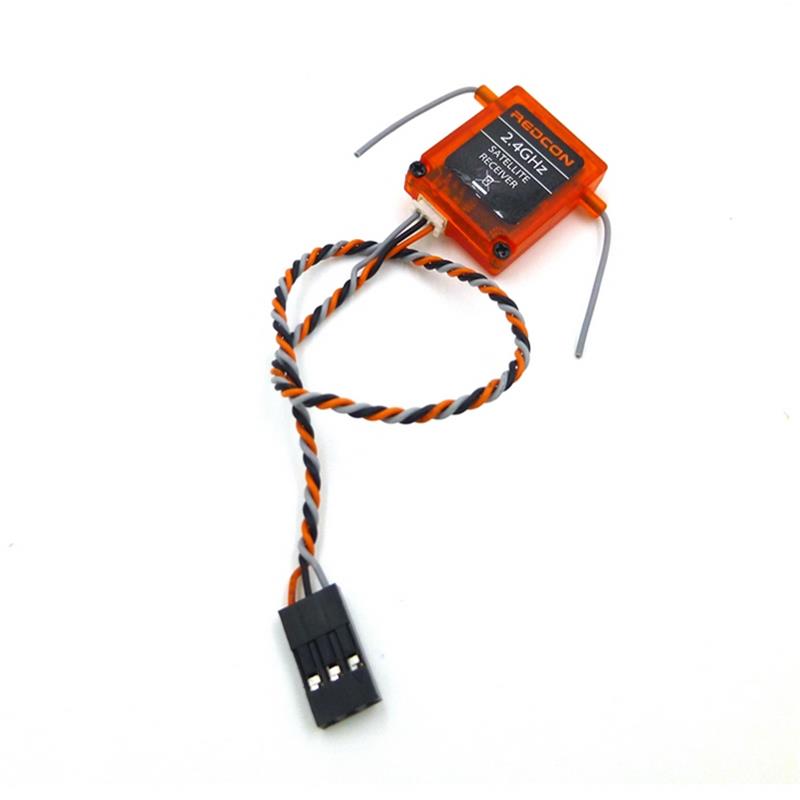

1XREDCON Satellite
