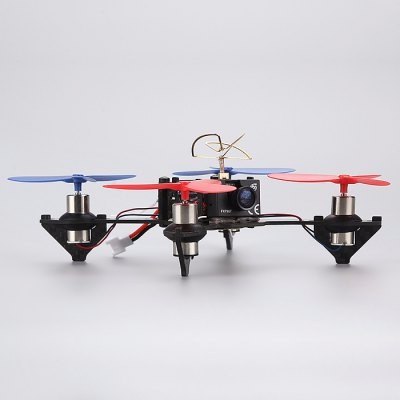

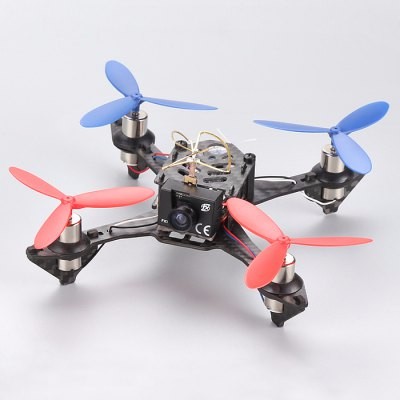

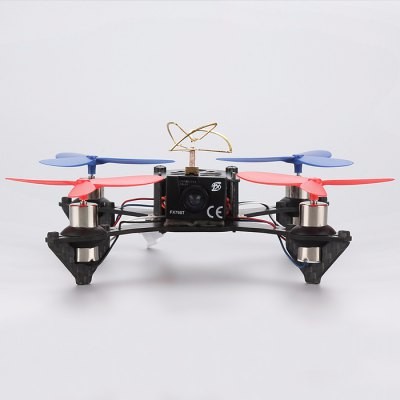

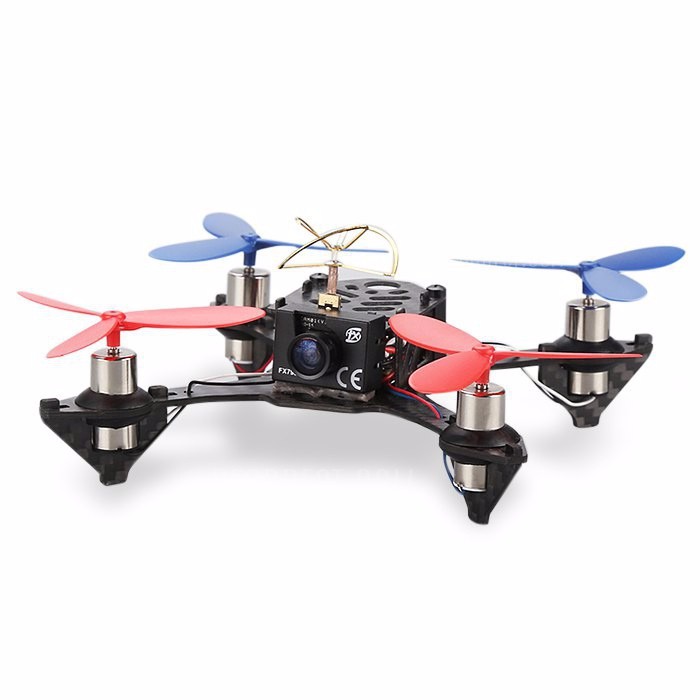

Cheerson TINY 117 Mini FPV Racing Quadcopter 5.8G 700 TVL HD Camera Based On F3_EVO Flight Controller
User Manual,Please Click:Cheerson TINY 117 Manual
Description:
Item Name:Cheerson TINY 117 Mini FPV Racing Quadcopter
Quadcopter size: 149 * 149 * 58mm
Body weight: 58.5g
Aircraft plus battery weight: 90g
Maximum takeoff weight: 100g
Flight Control Board: F3
Motor parameters: 1020
Body battery capacity: 600mah 2S 35C
Transmitter: support PPM, DSM, SBUS
Charging time: 20 minutes
Remote control flight distance: within 500 meters
Flight time: about 8 minutes
Colour: Black
Carbon fiber frame:
size: 10 * 10cm, weight: 10g, thickness: 1.5mm,
Small carbon fiber parts: thickness 1mm
Use of age: 14 years old above
Material: environmental protection ABS carbon fiber
Flight speed: less than 60km / h
Assembly method: DIY
Video transmission range: 200 meters
LED lights: None
Remote frequency / image transmission frequency: 2.4G / 5.8G
Flight environment: indoor and outdoor
Camera: 700 TVL HD 100 pixels (weight: 5.8g)
Memory Card: None
Note:The plane needs to be assembled by yourself.
Note:The plane needs to be assembled by yourself.
Package included:
8x Frame
1x USB charger
4x Fixed motor apron
1x Battery fixed accessories set
1x (Screw posts Screw ) set
4x Propellers(2x blue 2x red)
4x Motor
1x F3 Flight Control Board
1x Figure transmission camera
1x Non-slip mat
1x Body battery
