Charsoon Antimatter 250W 10A Balance Charger Discharger For LiPo/NiCd/PB Battery

Description:

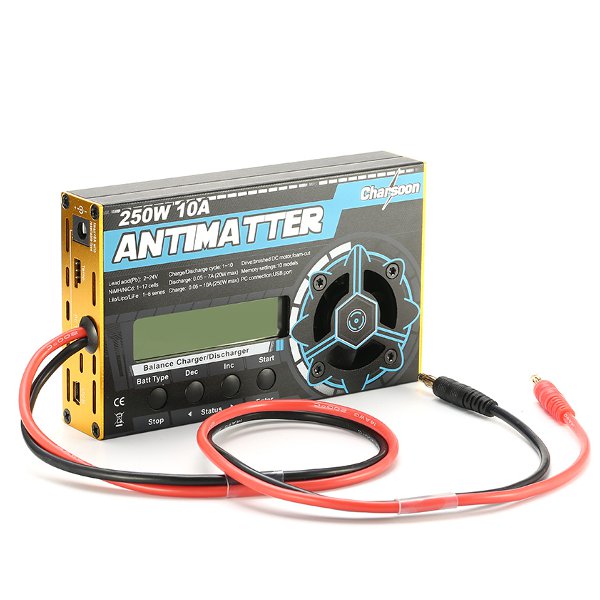

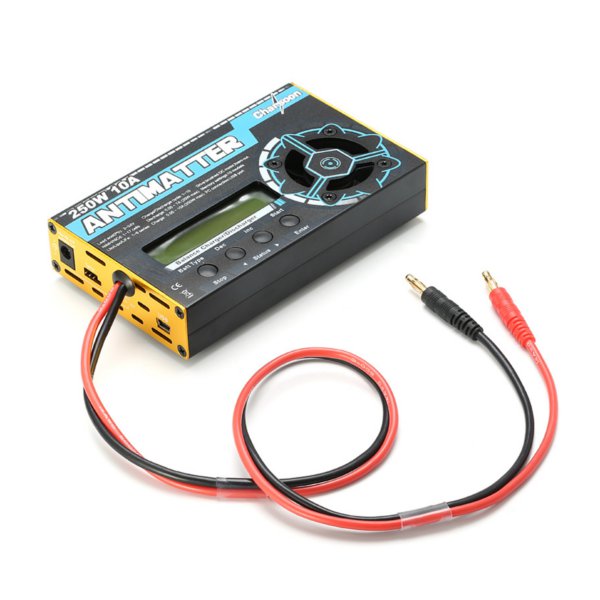

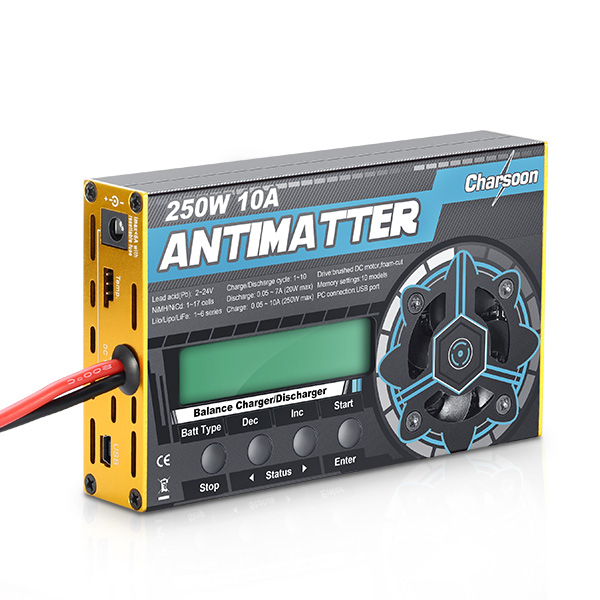

The Charsoon Antimatter 250W charger is a powerful charger for its size. This high power balancing charger/discharger can provide up to 10A charge rates and handle up to 6S Li-po/LiFe or 17S NiCd/NiMH battery.

The Charsoon Antimatter 250W has great features such as storage charging, cyclic charging / discharging, 10 charge parameter memory and can also be set up as a convenient power supply for a hot wire foam cutter.

Specification:

Brand Name Charsoon
Model Number  Antimatter
Input Voltage DC: 10-18V
Charge Current 0.05 ~ 10A
Discharge Current 0.05 ~ 7A
Maximum Charge Capacity 250W
Maximum Discharge Capacity 20W
Maximum Extern Discharge Power Capacity 170W@25V/7A
Current Drain For Balancing LiPoly 300mAh/cell
Battery Setup Memory 10
Lithium (Li-poly/LiIo/LiFe) Cell Count 1 ~ 6 series
NiCd/NiMH Cell Count 1 ~ 17 series
Pb Battery Voltage 2 ~ 24V
Dimensions 137 x 82 x 26mm
Weight 340g

Features:
Original Imported Components
This charger use original USA international rectifier and Japan rubycon,more reliable quality.

High Power,High Current,High-Performance Power Conversion Circuit
This charger uses advance Synchronous buck-boost DC/DC converter technology with an output conversion efficiency that can reach over 90%. This is not only save power and reduce heat build up but also makes the charger more compact and conveniently mobile.

Support Many Kinds of Battery
The charger can be used with Lipo,Lilo,LiFe,Ni-Cd,NiMH and Pb battery.

Data Storage
Convenient set of 10 battery profile memories that can be saved and loaded by number,

Various Charging/Discharging Settings and Cycles
For lithium batteries: balance charging,normal charging,fast charging,storage,discharging,ext-discharging,charge/discharge cycling an battery monitoring.
For NiCd/NiMH batteries: charging-auto,charging-manual,discharging,charge/discharge cycling and forming charge.
For Pb batteries: charging and discharging.

Unique Lithium Battery Expanding Discharging Program
When you connect the external capacity resistance,you can use it as the maximum discharge power capacity – 170W(25V/7A).

Unique Lithium Battery Monitor Program
When you use other equipment to charge or discharge a Lithium pack,you can use the charger to monitor the per-cell voltages,battery temperature and process time. If any individual cell appears over-charged or over-discharged or the pack is too hot or the process has gone on for too long,the charge will generate an alarm sound and the related information will blink.

Foam-cut Drive
In this mode,the charge acts as a convenient power supply for a hot wire foam cutter.

Battery Interior Resistance Measurement
The charger can not only measure the internal resistance of the battery pack,and also can measure the per-cell internal resistance (only available for lithium battery).

Perfect Protection Function
The charger has protection for reversed polarity(input or output),low input voltage,battery temperature,charging capacity and time overrun.

English Manual,Click Here

Note:
This charger doesn't come with the AC adapter and cord.

Package Included:
1x Charsoon Antimatter 250W charger
2x Alligator Clips +/-
1x XT60 connector charge lead
1x T connector charge lead
1x JST / Futaba Charge Lead
