Description
Freestyle version:click here
Specification

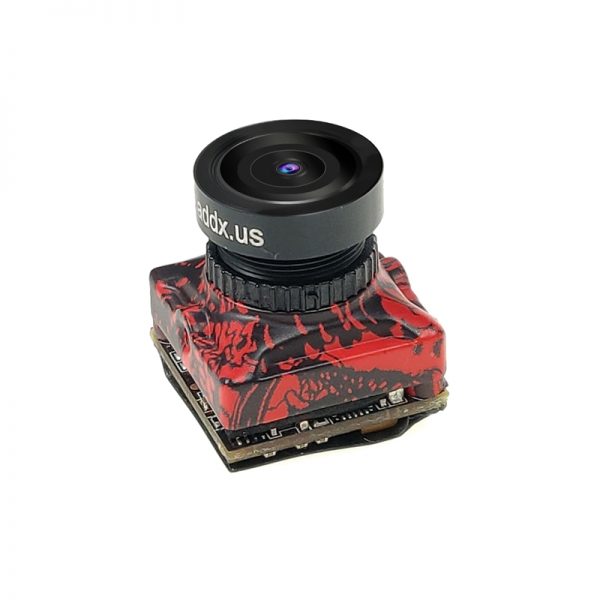

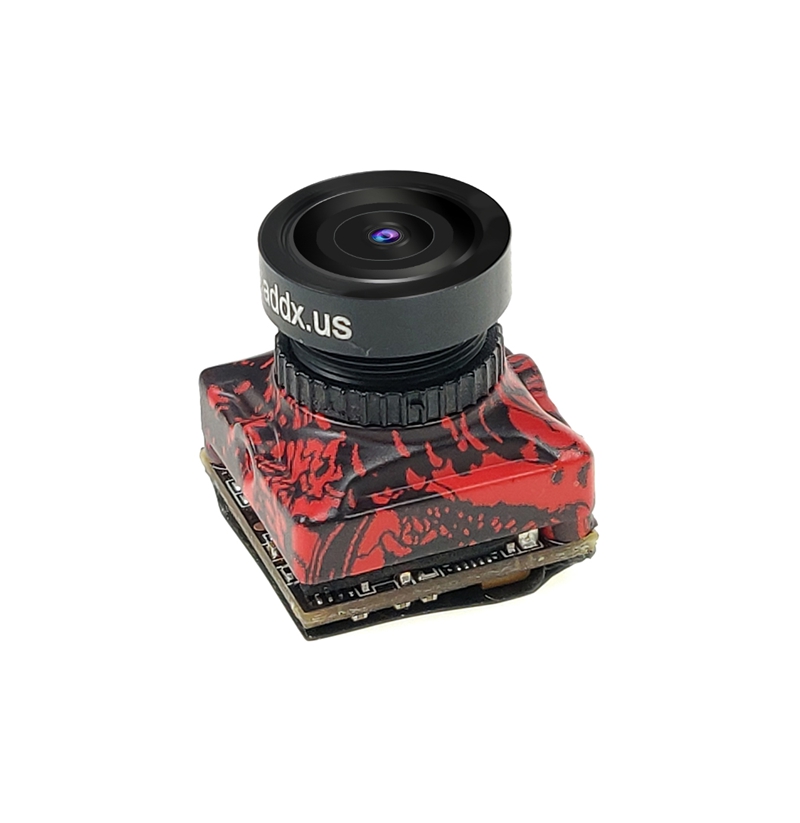

| Model | Turbo micro SDR2 plus (Race version) No jello,Extremely low latency |
| Image Sensor | SONY STARVIS sensor |
| Horizontal Resolution | 1000TVL |
| TV System | NTSC & PAL (changeable) |
| IMAGE | 16:9 & 4:3 (changeable) |
| WDR | Super WDR (Double Scan) |
| Min. Illumination | 0.0001Lux@F1.8 (Starlight) |
| Lens | Full Size Turbo Eye Lens |
| Synchronization | Internal |
| Electronic Shutter | PAL: 1/50~100,000; NTSC: 1/60~100,000 |
| S/N Ratio | >60dB (AGC OFF) |
| Flip / Mirror | Support |
| Video Output | CVBS |
| Camera OSD | Voltage/time/horizontal line/title |
| DNR | 3-DNR |
| LANGUAGE | ENG/FRANCE/RUS/SPA/PU/KOREA/CHN/JAPAN |
| Day/Night | Auto/Color/B&W/EXT |
| Dimensions | 19mm*19mm*17mm |
| Wide Power Input | DC 5-40V |
| Work Temperature | -20℃~+60℃ |
| Work Humidity | 20%~80% |
| Weight | 6.4g (N.W.)/ 41.8g (G.W.) |
Packing List
1 x Camera
1 x Aluminum bracket
1 x 5D-OSD menu board
1 x 4pin FPV silicone cable A (extend into a 2pin joint for OSD board and a 3pin joint for FPV)
1 x FPV silicone cable B (2-pin port for both side)
1 x Internal hexagonal wrench
1 x Screws set
