Description

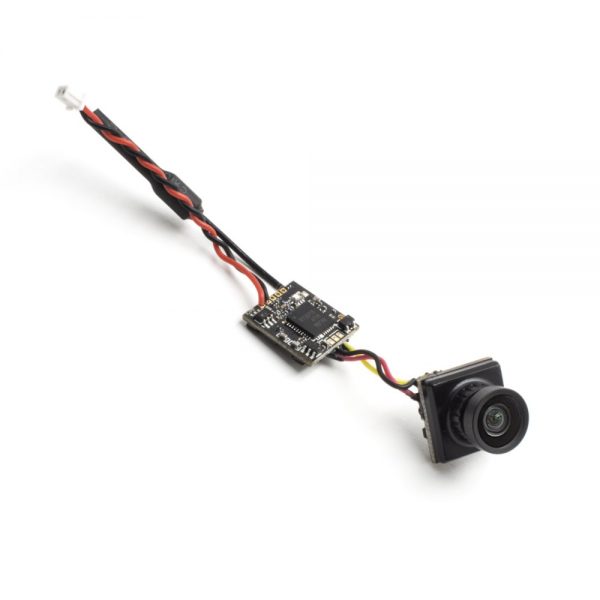

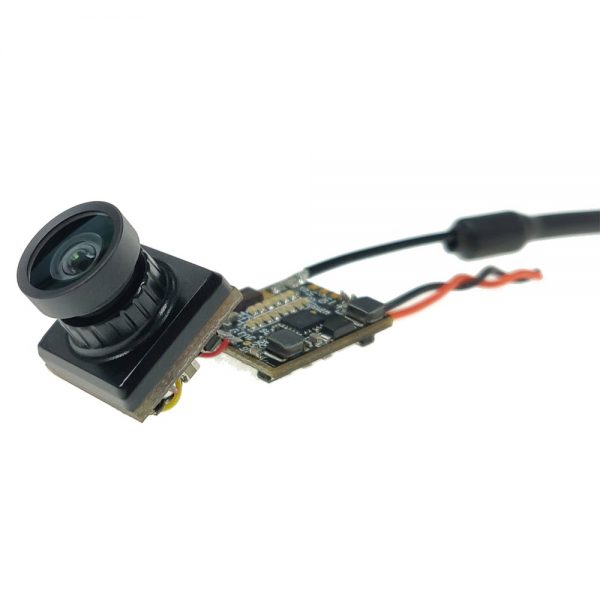

Caddx Firefly 1/3" CMOS 1200TVL 2.1mm Lens 16:9 / 4:3 NTSC/PAL FPV Camera With VTX For RC Drone
Specifications of Camera:
Brand Name: Caddx
Item Name: Firefly
Color: Black
Lens: 2.1mm
Image Sensor: 1/3" CMOS Sensor
Horizontal Resolution: 1200 TVL
TV System: NTSC / PAL (optional)
Image: 16:9 / 4:3 (optional)
Synchronization: Internal
Electronic Shutter PAL: 1/50~100,000; NTSC: 1/60~100,000
S/N Ratio: >52dB (AGC OFF)
Video Output: CVBS
Min. Illumination: 0.001Lux@F1.2
Auto Gain Control: YES
BLC: YES
WDR: Global WDR
DNR: 2 DNR
Dimensions: 14mm*14mm*16mm
Wide Power Input: DC 3.3-9V
Work Temperature: -20℃~+60℃
Work Humidity: 20%~80%
Weight: 4.1g (Camera + VTX)
Specifications of VTX:
Feature: TBS SMART OSD
Frequency Band: 5362~5945MHz
Channel Customer: 48
Modulation Type: FM
Channel SEL.: Touch Switch
Channel Indicate: CH1~CH8 Channel indication with 8LEDS and A~F frequency group Indicate with 6 LEDS
Transmit Power: 13±1dBm
Frequency Control: PLL
All Harmonic: Max -50dBm
Frequency Stability: ±100KHz (Typ.)
Frequency Precision: ±200KHz (Typ.)
Channel Carrier Error: 1dB
Antenna Port: 50 Ω
Power Consumption: 140±20MA@5V DCIN
Supply Voltage: 2.9-5.5V
Operating Temperature: -10℃~+60℃

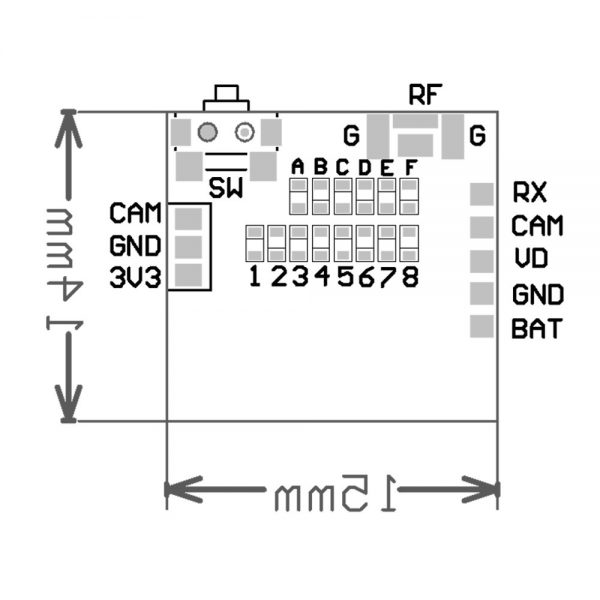

Profile Dimension: 15mmx14mm
Frequency Table:
| BAND | CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
| A (BOSCAM) | 5865M | 5845M | 5825M | 5805M | 5785M | 5765M | 5745M | 5725M |
| b (BOSCAM) | 5733M | 5752M | 5771M | 5790M | 5809M | 5828M | 5847M | 5866M |
| C (BOSCAM) | 5705M | 5685M | 5665M | 5645M | 5885M | 5905M | 5925M | 5945M |
| d (FATSHAR) | 5740M | 5760M | 5780M | 5800M | 5820M | 5840M | 5860M | 5880M |
| E (RACEBAN) | 5658M | 5695M | 5732M | 5769M | 5806M | 5843M | 5880M | 5917M |
| F | 5362M | 5399M | 5436M | 5473M | 5510M | 5547M | 5584M | 5621M |
Note: Betaflight OSD configuration is not supported the F group channel at this time.
English Manual, Click Here
Package Included:
1x Caddx Firefly 1/3" CMOS 1200TVL 2.1mm Lens FPV Camera With VTX
