Description
Specification:
| Item Name | Specification | ||

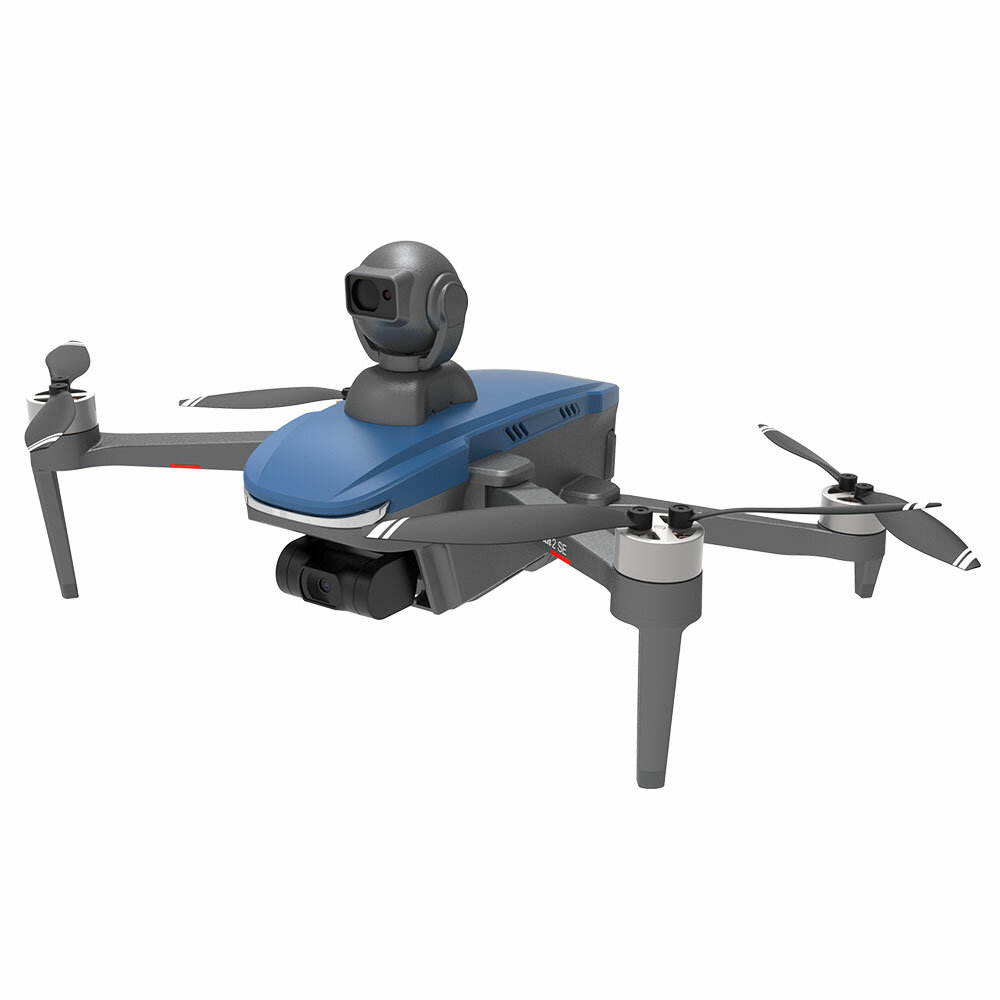

| Faith 2 PRO Drone | Brand Name: | C-Fly | |
| Item NO.: | Faith2 SE (DF809G) | ||
| Color: | Blue | ||
| Dimension: | 186 x 258 x 112mm (Expanded); 167 x 97 x 112mm (Folding) | ||
| Diagonal Size: | 280 mm | ||
| Drone Weight: | 500g (with battery, propellers and Obstacle Avoider ) | ||
| Max Descending Speed: | 4m/s (Sport Mode) | ||
| 3m/s (Normal Mode) | |||
| 3.5m/s (Return Mode) | |||
| Max Horizontal Flight Speed: | 14m/s (Sport Mode) | ||
| 10m/s (Normal Mode) | |||
| 12m/s (Return Mode) | |||
| Max Flying Altitude: | 4000m | ||
| Max Flying Time: | 27mins | ||
| Satelite Positioning System: | GPS+GLONASS | ||
| Hovering Accuracy: |
Vertical: ±0.5m, ±0.2m (when optical flow positioning and ultrasonic positioning works normally) |
||
|
Horizontal:±1.5m, ±0.3m (when optical flow positioning and ultrasonic positioning works normally) |
|||
| Operating Frequency: | 5.8GHz | ||
| Flight Height: | 120m(default)/ 500m(maximum) (manually change the APP settings) | ||
| Operating Temperature: | 0-40℃ | ||
| Optical Flow System | Optical Flow System: | yes | |
| Operating Environment: |
surface with clear pattern and adequate light (lux＞15, Normal indoor fluorescent lighting environment） |
||
| Vellocity Range: | Flight speed ≤ 1.5m/s (height 2 meters, sufficient light) | ||
| Altitude Range: | 0.5-6m | ||
| Ultrasonic Height Fixing System | Operating Environment: |
Except for water surfaces, or floors with absorbing materials such as thick carpets |
|
| Speed Measurement Range: | Flight speed ≤ 3m/s | ||
| Altitude Range: | 0.05-4.5m | ||
| Obstacle Avoidance System | Obstacle Avoidance Type | Two-axis | |
| Obstacle Avoidance Direction | 540°, front, back, left, right, up | ||
| Maximum Detection Distance | 20m | ||
| Maximum Obstacle Avoidance Speed | 10m/s | ||
| Gimbal | Gimbal: | 3-Axis Brushless | |
| Stablized Mode: | Brushless Motor Mechanical Stabilization | ||
| Controllable Rotation Range: | -90°〜0°(Pitch), -90° to 20° (extended setting) | ||
| Stabilization System: | 3-axis (pitch +35/-125°, roll ±35°, direction ±30°) | ||
| Camera | Sensor: | Sensor CMOS | |
| Image Size: | 3840*2160 (8MP) | ||
| Photo Shooting Mode: | Single Shot, Time-lapse Shooting, Continuous Shooting | ||
| Video Recording resolution: | 3840×2160 (4K) 15fps, 2716 x 1524 (2.7K) 25FPS | ||
| Max Bitrate: | 25Mbps | ||
| File System: | FAT32 | ||
| Image Format: | <fon
