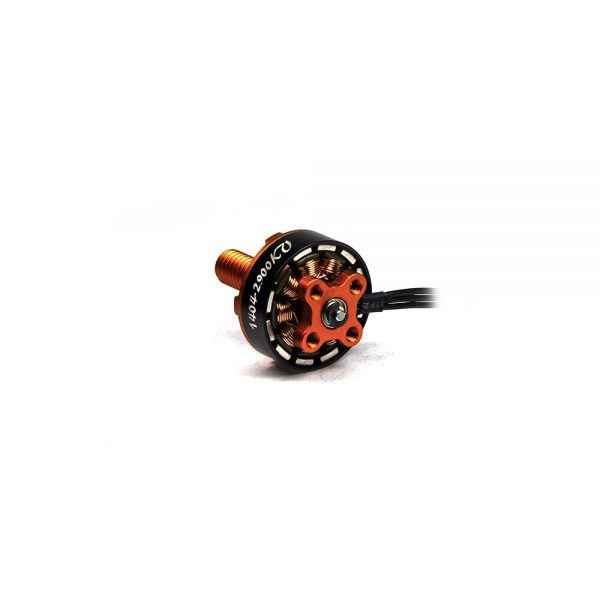

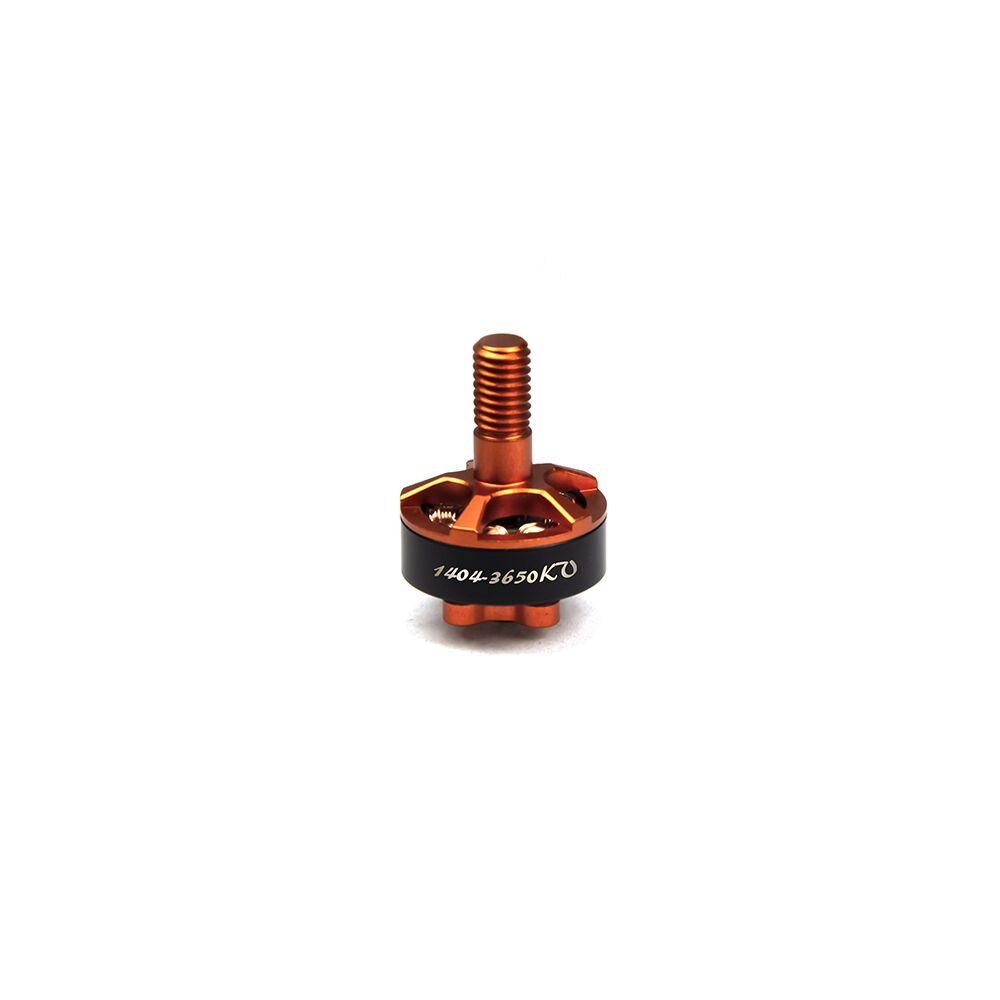

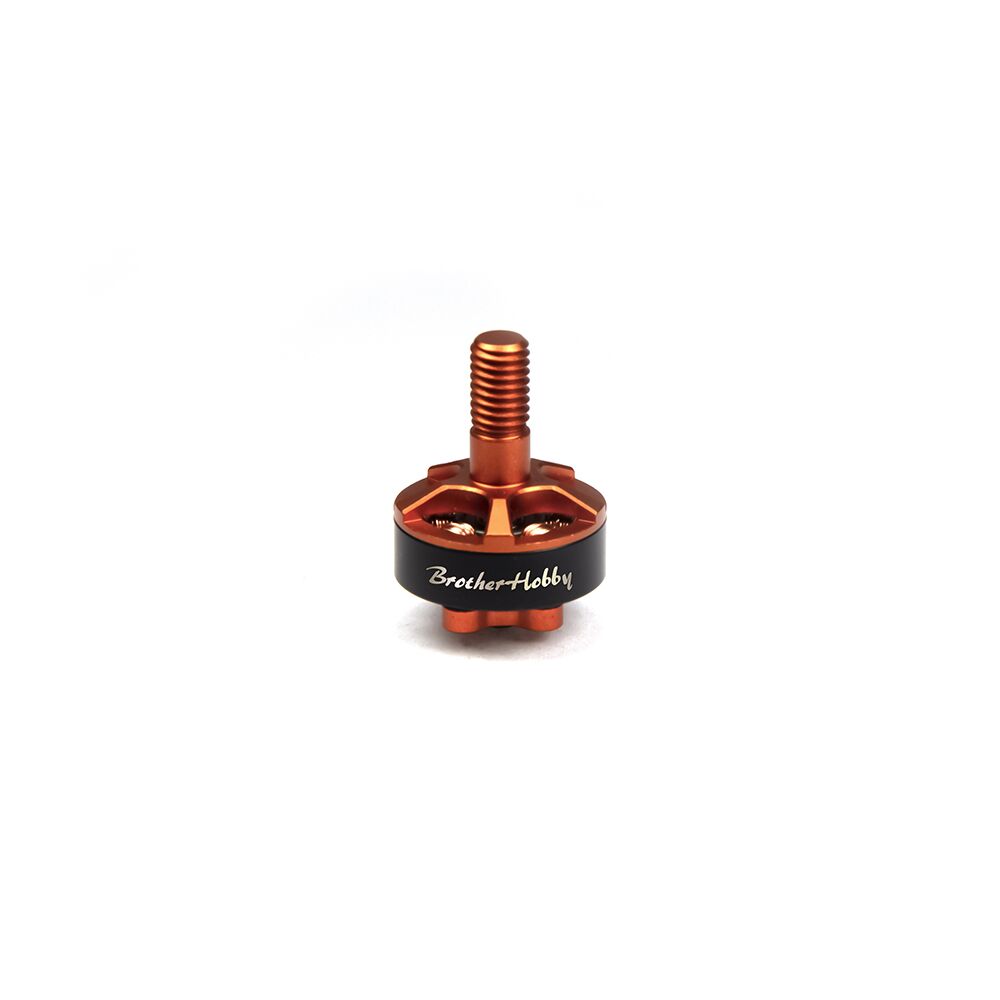

Brotherhobby Returner R3 1404 3-4S 2900KV 3600KV Brushless Motor CW for RC Drone FPV Racing
Specification:
Brand name: brotherhobby
Item name: returner R3 1404 brushless motor
KV: 2900KV/3650KV
Thread: CW
Brand name: brotherhobby
Item name: returner R3 1404 brushless motor
KV: 2900KV/3650KV
Thread: CW
Base casing: Al 6061
Stator: 0.2mm silicon steel
Configuration: 9N12P
No.of Cells(Lipo): 3-4S
Bolt Pattern: M2 (9mmX9mm)
Bearings: Japanese NSK 4*1.5*2
Rotor: N52H arc magnets
Prop shaft: M5
Motor Mounting size(mm): Φ17.4×23.8
Motor Mounting size(mm): Φ17.4×23.8
Weight: about 7.5g(include wires)
Wire AWG: 26AWG wire 20cm length
Bell cap: Al 6061
Package included:
1x returner R3 1404 brushless motor with 20mm length cable
